Velopedia Bicycle Archive

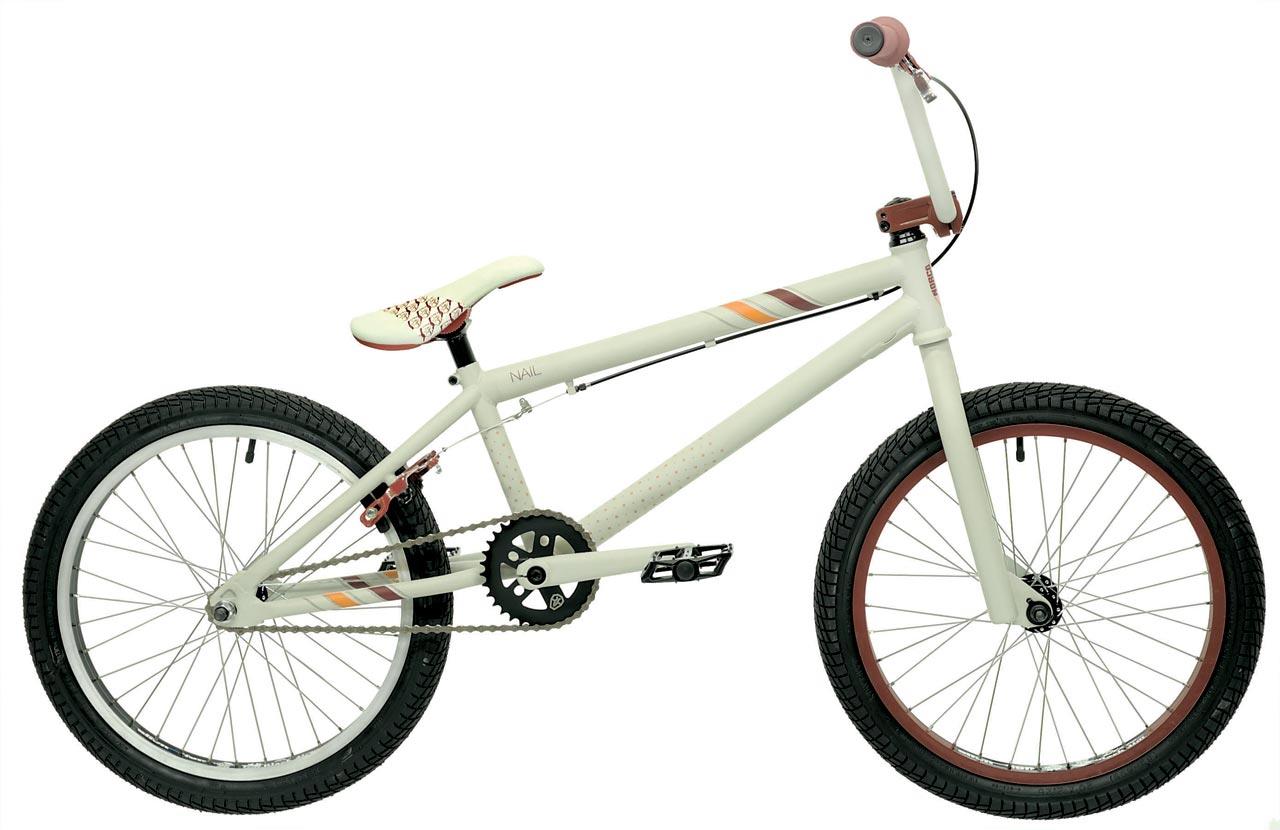

2009 Norco Nail
BMX bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 20.5" top tube
- Colors
- Red/Off White
- Archive ID
- 16896
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 4130 chromoly |
| Fork | Norco |
| Fork Material | Unicrown |
| Rear Shock | N/A |
Drivetrain
| Component Group | BMX |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | Tubular chromoly 3-piece, 33 teeth |
| Bottom Bracket | Mid BB sealed bearings |
| Cassette | Cassette driver |
| Rear Cogs | 1-speed, 12 teeth |
| Chain | KMC Z-410, 1/2 x 1/8" |
| Pedals | Flat alloy |
Brakes
| Brakes | Tektro 907 U-brake rear brakes, Tektro 289 rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated VP A61 campy integrated |
|---|---|
| Handlebar | Norco Tron "Big Bar" |
| Handlebar Extensions | Not included |
| Stem | Alloy |
| Saddle | Pivotal BMX |
| Seatpost | Short post, 25.4mm diameter |
Wheels & Tires
| Hubs | Front: Alloy, 3/8" axle, Rear: Alloy, 14mm hollow alxe |
|---|---|
| Rims | Alienation PBR, 36-hole |
| Spokes | UCP |
| Front Tire | Front: 20 x 2.125" Kenda Kontact, Rear: 20 x 1.95 Kenda Kontact |
| Wheel Size | 20" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
