Velopedia Bicycle Archive

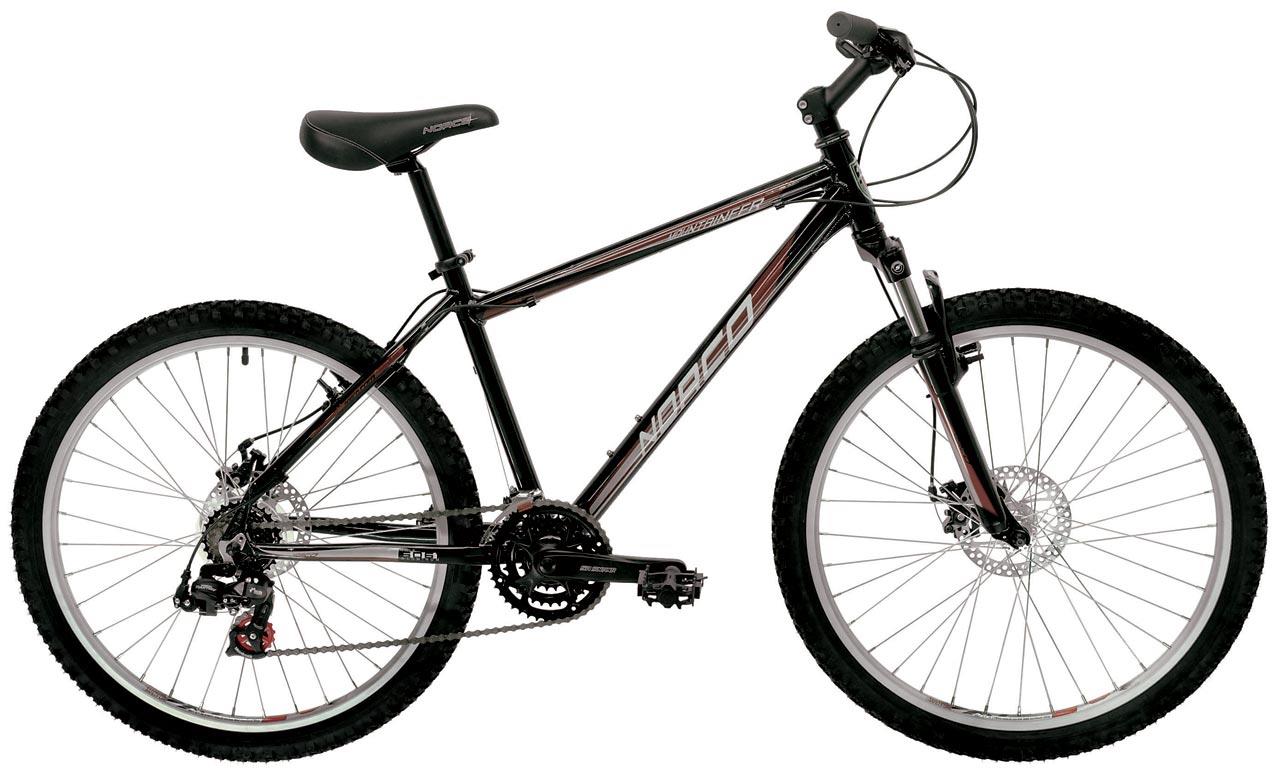

2009 Norco Mountaineer
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 12.5", 15", 17", 18.5", 20", 22"
- Colors
- Black, Red
- Archive ID
- 16763
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Hydraformed Aluminum |
| Fork | SR Suntour M2000N, 63mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano ST-EF50 |
| Front Derailleur | Shimano FD-C050, 31.8mm clamp |
| Rear Derailleur | Shimano RD-TX51D |
| Crankset | SR Suntour, 22/32/42 teeth |
| Bottom Bracket | Cartridge |
| Cassette | Shimano MF-TZ07 |
| Rear Cogs | 7-speed, 14 - 28 teeth |
| Chain | KMC Z50, 1/2 x 3/32" |
| Pedals | MTB Resin |
Brakes
| Brakes | Tektro IO mechanical Disc w/6" Rotor brakes, Shimano ST-EF50 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless CH-918 |
|---|---|
| Handlebar | MTB Riser |
| Handlebar Extensions | Not included |
| Stem | MTB Alloy |
| Saddle | Norco MTB |
| Seatpost | Kalloy |
Wheels & Tires
| Hubs | Formula |
|---|---|
| Rims | DDM-1 Disc, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 1.95" Innova |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
