Velopedia Bicycle Archive

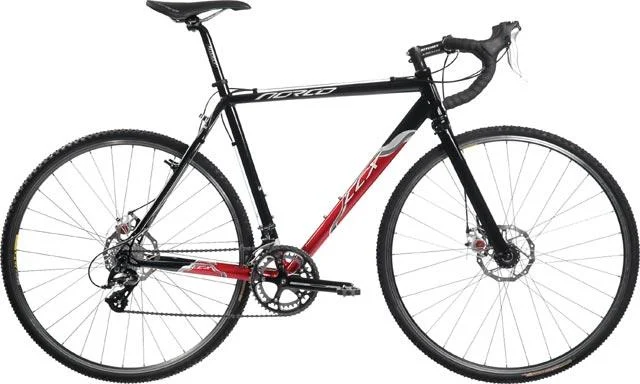

2007 Norco CCX 2

Original specifications: Road Mix drivetrain.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #95151
Model year
2007
Category
Road
Original MSRP
$975.00
Sizes
S, M, L, XL
Colors
Red/Black
In this record
23 specifications · archived image · original MSRP
Model history 5 other years

Browse other years

Compare side by side

Identification clues

2007 archived details

Published colors
Red/Black
Frame
7005 double butted aluminum
Original equipment
Road Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build7005 double butted aluminum · Road Mix

Historical catalog variants

Archived sizes and colors

4 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

SMLXL

Published colors

Red/Black
View 4 archived size/color combinations
SizeColor
SRed/Black
MRed/Black
LRed/Black
XLRed/Black

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame Material7005 double butted aluminum
ForkNorco
Fork MaterialAluminum/chromoly, aero crown

Drivetrain

Component GroupRoad Mix
ShiftersShimano 3300
Front DerailleurShimano 2200
Rear DerailleurShimano 2200
CranksetFSA Vero, 36/46 teeth
Rear Cogs8-speed, 12 - 24 teeth
ChainKMC Z8
PedalsCrank Brothers Smarty

Brakes

BrakesAvid BB Road Mechanical w/ 6" Rotor brakes, Shimano 3300 levers

Cockpit & Contact Points

HeadsetRitchey Comp
HandlebarRitchey
Handlebar ExtensionsNot included
StemRitchey
SaddleNorco Chromoly Pro
SeatpostRitchey, 31.8mm diameter

Wheels & Tires

HubsRitchey Pro Disc
RimsAlex ACE-19
SpokesDT Swiss Champion
Front TireWTB Cross Wolf Comp

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes46/36T · 12–24T · 8-speed
Lowest1.50:1 Highest3.83:1 Total range256%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Crankset · Original
FSA Vero

36/46 teeth

Seatpost · Original
Ritchey

31.8mm diameter

More parts (3)Fewer parts
Headset · Original
Ritchey Comp
Rims · Original
Alex ACE-19
Hubs · Original
Ritchey Pro Disc

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
WTB Cross Wolf Comp
Drivetrain
8-speed
Seatpost diameter
31.8 mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Norco · Aluminum/chromoly, aero crown

Archived: Group: Road Mix · Shifters: Shimano 3300 · Front derailleur: Shimano 2200 · Rear derailleur: Shimano 2200 · Crankset: FSA Vero, 36/46 teeth · Rear cogs: 8-speed, 12 - 24 teeth · Chain: KMC Z8

Archived: Brakes: Avid BB Road Mechanical w/ 6" Rotor brakes, Shimano 3300 levers

Archived: Rims: Alex ACE-19 · Hubs: Ritchey Pro Disc · Front tire: WTB Cross Wolf Comp

Controls and contact points

Archived: Headset: Ritchey Comp · Handlebar: Ritchey · Stem: Ritchey · Seatpost: Ritchey, 31.8mm diameter · Saddle: Norco Chromoly Pro · Pedals: Crank Brothers Smarty
