Moots ROUTT CRD Frameset

Original specifications: geometry for 7 published sizes.

Share owner experience

At a glance

Model year: Not published by manufacturer
Category: Gravel & Cyclocross
Original MSRP: $8,799.00
Sizes: 50, 52, 54, 55, 56, 58, 60
Geometry: 7 manufacturer sizes
In this record: 6 specifications · 8 archived images · original MSRP · geometry
Archive ID: 900001477

Learn more about Moots →

Original buildTitanium

Manufacturer catalog

Published sizes and colors

7 sizes

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

50525455565860

Frameset

Frame Construction	Internally butted 3al/2.5v titanium tubing, 3d printed UDH dropouts, T47 BB
Frame Material	Titanium
Fork	Moots Gravel Fork

Drivetrain

Bottom Bracket	Chris King T47 30i

Cockpit & Contact Points

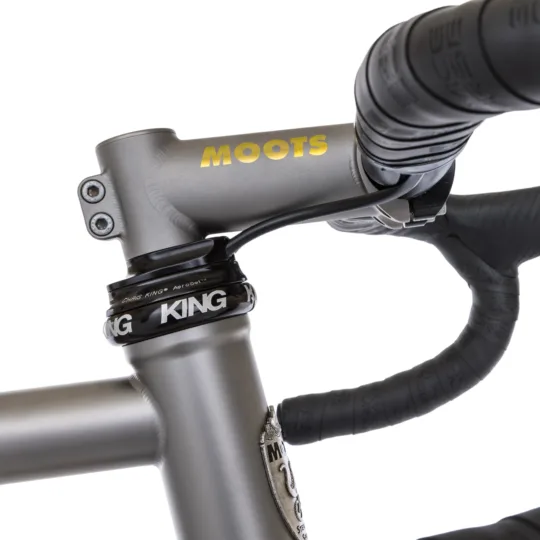

Headset	Chris King Aeroset 3 w/ Moots CRD integrated spacer
Seatpost	27.2

Geometry

7 sizes · 10 measurements

Frame measurements by size.

Measurement	50	52	54	55	56	58	60
Seat tube	460 mm	480 mm	510 mm	520 mm	530 mm	550 mm	570 mm
Effective top tube	520 mm	530 mm	545 mm	555 mm	565 mm	590 mm	605 mm
Head tube	120 mm	130 mm	140 mm	150 mm	150 mm	170 mm	190 mm
Head-tube angle	71°	71°	71.5°	71.5°	71.5°	72°	72.25°
Seat-tube angle	75°	74.25°	74°	73.5°	73.5°	73°	72.75°
Chainstay / rear center	430 mm	430 mm	430 mm	430 mm	430 mm	430 mm	430 mm
Bottom-bracket drop	71 mm	71 mm	69 mm	69 mm	69 mm	69 mm	68 mm
Reach	362 mm	362 mm	372 mm	374 mm	379 mm	398 mm	405 mm
Stack	575 mm	585 mm	594 mm	603 mm	615 mm	624 mm	644 mm
Standover height	749.3 mm	762 mm	782.32 mm	792.48 mm	802.64 mm	815.34 mm	861.06 mm

Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
