Uses front tire 26×1.95; rear size isn’t listed.
Velopedia Bicycle Archive

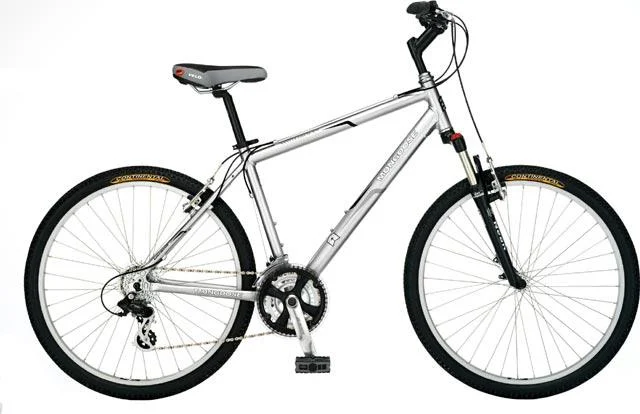

2006 Mongoose Switchback SX
Original specifications: Hybrid mix drivetrain · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #11465- Model year
- 2006
- Category
- Hybrid
- Original MSRP
- $299.99
- Sizes
- XS, S, M, L, XL
- Colors
- Metallic Silver/Metallic Gray
- In this record
- 26 specifications · archived image · original MSRP
Model history 5 other years
Browse other years
Compare side by side
Identification clues
2006 archived details
- Published colors
- Metallic Silver/Metallic Gray
- Frame
- 6061 AL Comfort
- Original equipment
- Hybrid mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build6061 AL Comfort · Hybrid mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 AL Comfort |
| Fork | Spinner Grind 2, 50mm |
| Fork Material | Aluminum/steel |
Drivetrain
| Component Group | Hybrid mix |
|---|---|
| Shifters | SRAM ESP 3.0 |
| Front Derailleur | Shimano FD-C051 |
| Rear Derailleur | SRAM ESP 3.0 |
| Crankset | Shimano TY-33, 28/38/48 teeth |
| Bottom Bracket | Semi-cartridge |
| Rear Cogs | 7-speed, 13 - 34 teeth |
| Chain | KMC Z51 |
| Pedals | PP body/boron axle |
Brakes
| Brakes | Lee Chi Linear Pull brakes, Tektro melt-forged 2finger levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Steel 1 1/8" Threaded |
|---|---|
| Handlebar | Steel 30mm rise |
| Handlebar Extensions | Not included |
| Stem | Alloy adjustbable quill |
| Saddle | WTB Comfort V Sport |
| Seatpost | Alloy Suspension |
Wheels & Tires
| Hubs | Mongoose Double-Sealed Alloy QR |
|---|---|
| Rims | Alex Z-1000, 36-hole |
| Spokes | Stainless steel |
| Spoke Nipples | Brass UCP |
| Front Tire | 26 x 1.95" Kenda Khan Blk w/Coffee Sidewall |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Tektro melt-forged 2finger levers
More parts (4)Fewer parts
28/38/48 teeth
36-hole
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 1.95" Kenda Khan Blk w/Coffee Sidewall
- Drivetrain
- 7-speed
- Bottom bracket / shell
- Semi-cartridge
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Spinner Grind 2, 50mm · Aluminum/steel
Drivetrain
Check drivetrain wear →Archived: Group: Hybrid mix · Shifters: SRAM ESP 3.0 · Front derailleur: Shimano FD-C051 · Rear derailleur: SRAM ESP 3.0 · Crankset: Shimano TY-33, 28/38/48 teeth · Bottom bracket: Semi-cartridge · Rear cogs: 7-speed, 13 - 34 teeth · Chain: KMC Z51
Brakes
Inspect the brakes →Archived: Brakes: Lee Chi Linear Pull brakes, Tektro melt-forged 2finger levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Alex Z-1000, 36-hole · Hubs: Mongoose Double-Sealed Alloy QR · Front tire: 26 x 1.95" Kenda Khan Blk w/Coffee Sidewall
Controls and contact points
Archived: Headset: 1 1/8" Steel 1 1/8" Threaded · Handlebar: Steel 30mm rise · Stem: Alloy adjustbable quill · Seatpost: Alloy Suspension · Saddle: WTB Comfort V Sport · Pedals: PP body/boron axle
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
