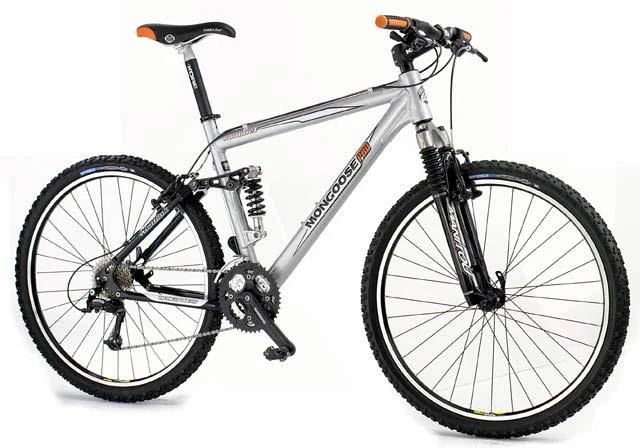

2004 Mongoose Sommet

Original specifications: Shimano Deore · 9-speed · mechanical rear derailleur · 26" wheels · legacy reference geometry.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #31633
Model year
2004
Category
Mountain
Original MSRP
$1,099.99
Sizes
S, M, L
Colors
Red
Geometry
Legacy reference
In this record
24 specifications · archived image · original MSRP · geometry
Model history 2 other years

Browse other years

Compare side by side

Identification clues

2004 archived details

Published colors
Red
Frame
7005 aluminum
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build7005 aluminum · Mountain Mix · 26" wheels

Manufacturer catalog

Published sizes and colors

3 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SML

Published colors

Red

Frameset

Frame ConstructionTIG-welded
Frame Material7005 aluminum
ForkRock Shox Pilot XC, 80mm travel
Fork MaterialAluminum/magnesium, single crown
Rear ShockRST 22, 3.5" travel

Drivetrain

Component GroupMountain Mix
ShiftersShimano Deore RapidFire
Front DerailleurShimano M-510 Deore
Rear DerailleurShimano Deore M-510
CranksetFSA Alpha Drive, 22/32/44 teeth
Rear Cogs9-speed, 11 - 34 teeth
ChainShimano CN-HG53, 1/2 x 3/32"
PedalsWellgo WPD-823 clipless

Brakes

BrakesHayes HMX-2 Mechanical Disc brakes, Shimano Deore levers

Cockpit & Contact Points

Headset1 1/8" integrated FSA integrated
HandlebarTitec Enduro XC
Handlebar ExtensionsNot included
StemTitec Big AL
SaddleWTB Rocket V Race
SeatpostTitec XC

Wheels & Tires

HubsWTB SpeedDisc
RimsWTB SpeedDisc
Front Tire26 x 1.85" Hutchinson Mosquito Air Light
Wheel Size26" wheels

Geometry

Legacy reference · 3 measurements

Historical measurements. Frame size unknown.

All geometry measurementsLegacy reference · 3 measurements
MeasurementLegacy reference
Head-tube angle71°
Seat-tube angle72°
Fork offset / rake38.1 mm

Frame size not recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes44/32/22T · 11–34T · 9-speed
Lowest0.65:1 Highest4.00:1 Total range618%
Estimated speed At 90 RPM Lowest gear4.5 mph Highest gear27.5 mph

Uses front tire 26×1.85; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
Shimano CN-HG53

1/2 x 3/32"

Front tire · Original
26 x 1.85" Hutchinson Mosquito Air Light
Pedals · Original
Wellgo WPD-823 clipless
More parts (7)Fewer parts
Saddle · Original
WTB Rocket V Race
Crankset · Original
FSA Alpha Drive

22/32/44 teeth

Front derailleur · Original
Shimano M-510 Deore
Rear derailleur · Original
Shimano Deore M-510
Shifters · Original
Shimano Deore RapidFire
Rims · Original
WTB SpeedDisc
Hubs · Original
WTB SpeedDisc

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 1.85" Hutchinson Mosquito Air Light
Drivetrain
9-speed
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Rock Shox Pilot XC, 80mm travel · Aluminum/magnesium, single crown

Archived: Fork: Rock Shox Pilot XC, 80mm travel · Rear shock: RST 22, 3.5" travel

Archived: Group: Mountain Mix · Shifters: Shimano Deore RapidFire · Front derailleur: Shimano M-510 Deore · Rear derailleur: Shimano Deore M-510 · Crankset: FSA Alpha Drive, 22/32/44 teeth · Rear cogs: 9-speed, 11 - 34 teeth · Chain: Shimano CN-HG53, 1/2 x 3/32"

Archived: Brakes: Hayes HMX-2 Mechanical Disc brakes, Shimano Deore levers

Archived: Wheel size: 26" wheels · Rims: WTB SpeedDisc · Hubs: WTB SpeedDisc · Front tire: 26 x 1.85" Hutchinson Mosquito Air Light

Controls and contact points

Archived: Headset: 1 1/8" integrated FSA integrated · Handlebar: Titec Enduro XC · Stem: Titec Big AL · Seatpost: Titec XC · Saddle: WTB Rocket V Race · Pedals: Wellgo WPD-823 clipless
