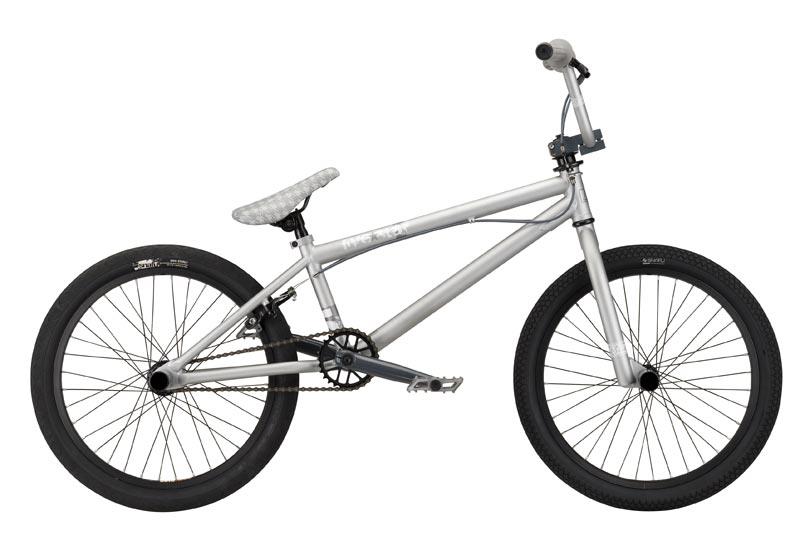

2009 Mirraco Fivestar Park
BMX bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 20.5" TT
- Colors
- Chocolate, Primer Gray
- Weight
- 26.25
- Archive ID
- 18446
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 5 Tube Chromoly |
| Fork Material | Chromoly, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | BMX |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | M3 3pc Crmo, 28 teeth |
| Bottom Bracket | Mid BB |
| Cassette | Cassette driver |
| Rear Cogs | 1-speed, 10 teeth |
| Chain | KMC Z410 |
| Pedals | Wellgo alloy |
Brakes
| Brakes | Tektro alloy U-brake rear brakes, Tektro 289 rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" VP A-88 |
|---|---|
| Handlebar | M3 2pc 7.0" |
| Handlebar Extensions | Not included |
| Stem | M3 Downside |
| Saddle | M3 Fivestar Lite 8mm rails |
| Seatpost | Alloy, 25.4mm diameter |
Wheels & Tires
| Hubs | Front: M3 alloy 3/8", Rear: M3 alloy cassette 14mm axle |
|---|---|
| Rims | Alloy Double Wall, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | Front: 20 x 1.95" SNAFU Sanford, Rear: 20 x 1.95" SNAFU Sterly |
| Wheel Size | 20" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
