2011 Masi Alare Bellissima

Original specifications: Shimano Tiagra · 9-speed rear derailleur · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #22341
Model year
2011
Category
Road
Sizes
47cm. 49cm, 51cm, 53cm, 56cm
Colors
Seafoam Green
In this record
25 specifications · 5 archived images
Model history 3 other years

Browse other years

Compare side by side

Identification clues

2011 archived details

Published colors
Seafoam Green
Frame
Butted alloy
Original equipment
Road Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildButted alloy · Road Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

4 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

47cm. 49cm51cm53cm56cm

Published colors

Seafoam Green
View 4 archived size/color combinations
SizeColor
47cm. 49cmSeafoam Green
51cmSeafoam Green
53cmSeafoam Green
56cmSeafoam Green

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialButted alloy
ForkMasi Elite
Fork MaterialCarbon integrated with alloy steerer, aero crown

Drivetrain

Component GroupRoad Mix

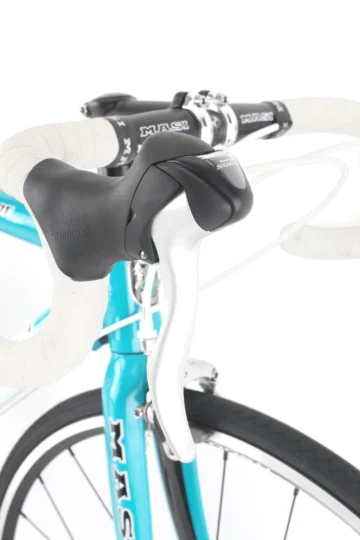

ShiftersShimano Sora STI
Front DerailleurShimano Sora
Rear DerailleurShimano Tiagra

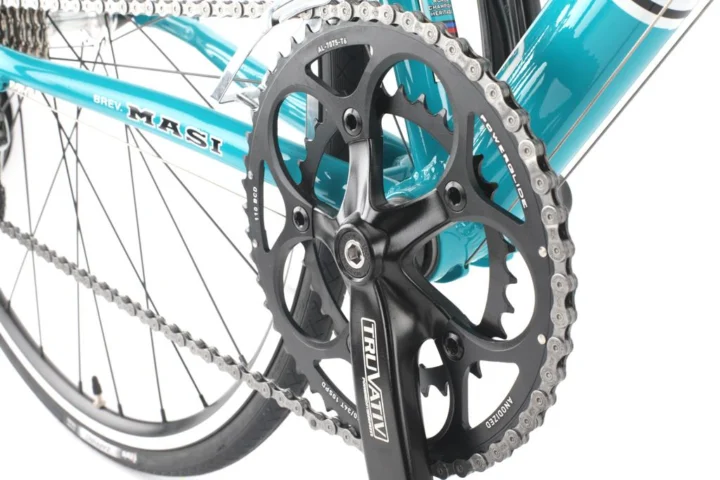

CranksetTruvativ ISO Flow C 2.1, 34/50 teeth
Bottom BracketTruvativ Square Taper
CassetteShimano HG-50
Rear Cogs9-speed, 12 - 25 teeth
ChainShimano HG-73
PedalsAlloy Cage

Brakes

BrakesTektro 510 A alloy dual pivot brakes, Shimano Sora STI levers

Cockpit & Contact Points

HeadsetFSA 23/CC internal
HandlebarMasi Bellissima alloy
StemMasi 3-D Forged

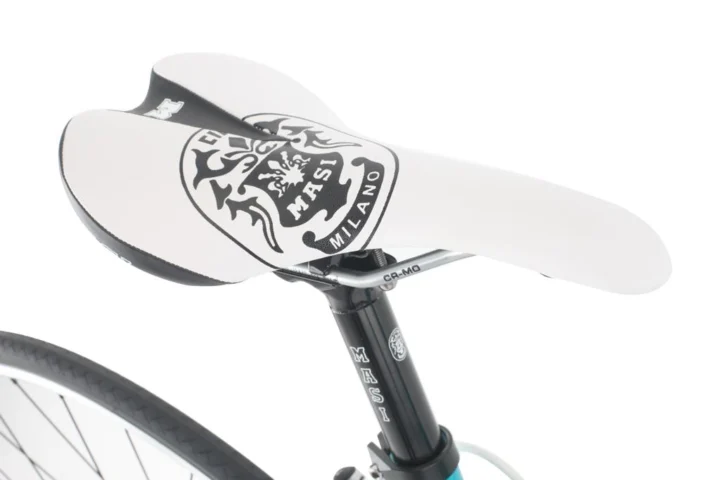

SaddleMasi SLR w/tubular crmo rails
SeatpostMasi Zero Offset Carbon, 27.2mm diameter

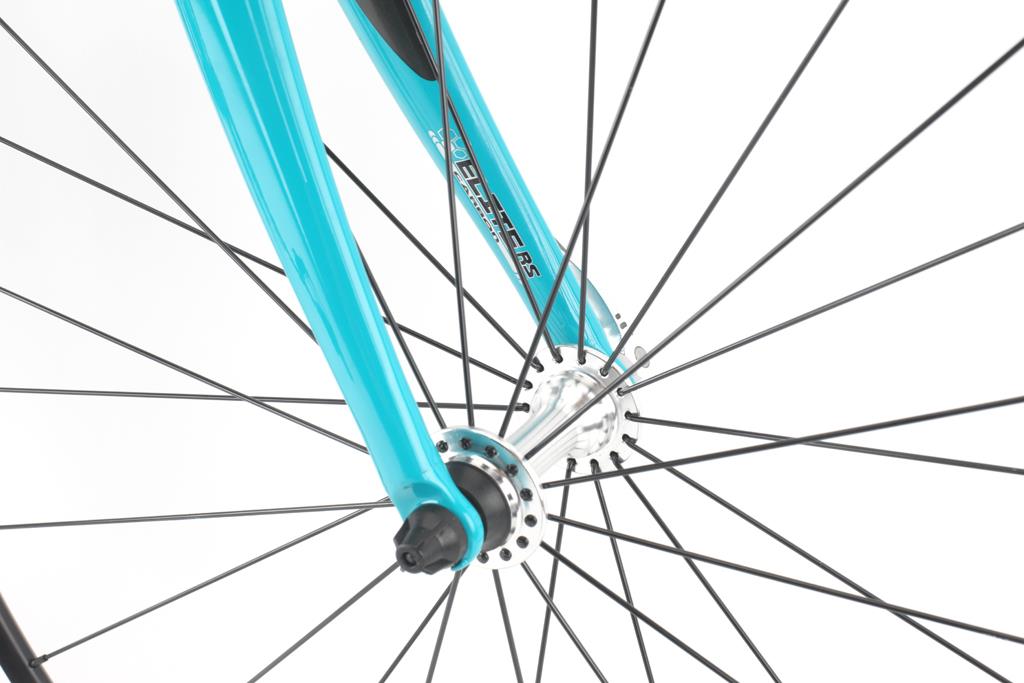

Wheels & Tires

HubsFormula
RimsAlex R500 aero, 28-hole
SpokesStainless, butted
Front Tire700 x 23c Vittoria Zaffiro
Wheel Size700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

Published build50/34T · 12–25T · 9-speed
Lowest1.36:1 Highest4.17:1 Total range306%
Estimated speed At 90 RPM Lowest gear9.6 mph Highest gear29.3 mph

Uses front tire 700C×23; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
700 x 23c Vittoria Zaffiro
Seatpost · Original
Masi Zero Offset Carbon

27.2mm diameter

Chain · Original
Shimano HG-73
More parts (5)Fewer parts
Front derailleur · Original
Shimano Sora
Rear derailleur · Original
Shimano Tiagra
Shifters · Original
Shimano Sora STI
Headset · Original
FSA 23/CC internal
Rims · Original
Alex R500 aero

28-hole

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 23c Vittoria Zaffiro
Drivetrain
9-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
Truvativ Square Taper
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Masi Elite · Carbon integrated with alloy steerer, aero crown

Archived: Group: Road Mix · Shifters: Shimano Sora STI · Front derailleur: Shimano Sora · Rear derailleur: Shimano Tiagra · Crankset: Truvativ ISO Flow C 2.1, 34/50 teeth · Bottom bracket: Truvativ Square Taper · Cassette: Shimano HG-50 · Rear cogs: 9-speed, 12 - 25 teeth · Chain: Shimano HG-73

Archived: Brakes: Tektro 510 A alloy dual pivot brakes, Shimano Sora STI levers

Archived: Wheel size: 700c wheels · Rims: Alex R500 aero, 28-hole · Hubs: Formula · Front tire: 700 x 23c Vittoria Zaffiro

Controls and contact points

Archived: Headset: FSA 23/CC internal · Handlebar: Masi Bellissima alloy · Stem: Masi 3-D Forged · Seatpost: Masi Zero Offset Carbon, 27.2mm diameter · Saddle: Masi SLR w/tubular crmo rails · Pedals: Alloy Cage
