Velopedia Bicycle Archive

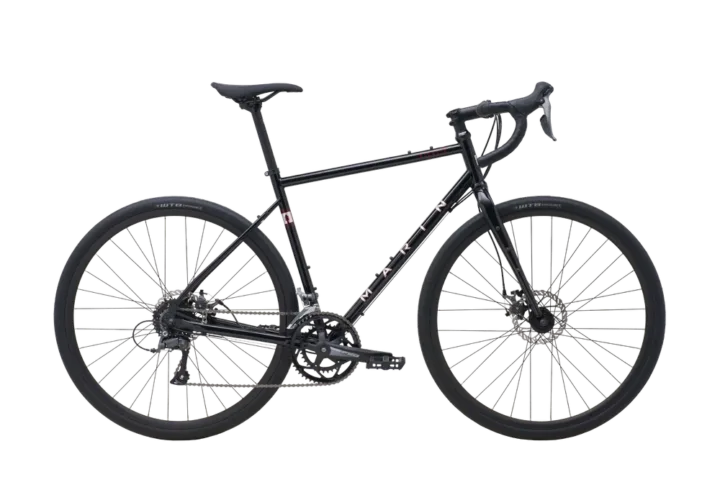

2025 Marin Nicasio 1
Cyclocross/Gravel bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2025
- Category
- Gravel & Cyclocross
- Original MSRP
- $999.00
- Sizes
- 50, 52, 54, 56, 58, 60
- Colors
- Black, Bone Grey
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900000502
Frameset
| Frame Construction | Steezy Double Butted CrMo, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount |
|---|---|
| Fork | CrMo, Fender and Rack Eyelets, IS Disc Mount |
Drivetrain
| Shifters | Shimano Claris 2x8-Speed |
|---|---|
| Front Derailleur | Shimano Claris |
| Rear Derailleur | Shimano Claris 8-Speed |
| Crankset | FSA Tempo Compact, 50/34T |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Cassette | Shimano HG31 8-Speed, 11-32T |
| Chain | KMC Z8 |
| Pedals | Nylon Platform |
Brakes

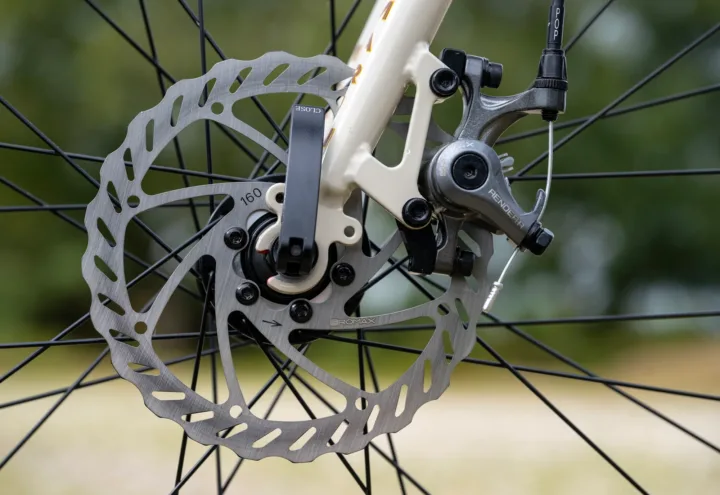

| Brakes | (F) Promax Render R, Road Mechanical, 160mm Rotor / (R) Promax Render R, Road Mechanical, 160mm Rotor; Levers: Shimano w/ Integrated Shifters |
|---|
Cockpit & Contact Points
| Headset | FSA ORBIT CE No.8B, Sealed Cartridge Bearings |
|---|---|
| Handlebar | Marin Butted Alloy, Compact 16º Flared Drop |
| Stem | Marin 3D Forged Alloy |
| Saddle | Marin Beyond Road Concept |
| Seatpost | Marin Alloy, 27.2mm |
Wheels & Tires
| Hubs | (F) Forged Aluminum Alloy, Disc, 32H / (R) Forged Aluminum Alloy, Disc, 32H |
|---|---|
| Rims | Marin Aluminum Double Wall, 19mm Inner, Disc Specific |
| Spokes | 14g Black Stainless Steel |
| Front Tire | WTB, Exposure, 700Cx36, Wire Bead |
| Rear Tire | WTB, Exposure, 700Cx36, Wire Bead |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 50 | 52 | 54 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|
| Seat tube | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Effective top tube | 526 mm | 537 mm | 546 mm | 560 mm | 575 mm | 599 mm |
| Head tube | 105 mm | 120 mm | 135 mm | 150 mm | 165 mm | 180 mm |
| Head-tube angle | 70.5° | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° |
| Seat-tube angle | 74.5° | 74° | 74° | 74° | 74° | 73.5° |
| Chainstay / rear center | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1017 mm | 1014 mm | 1024 mm | 1039 mm | 1055 mm | 1073 mm |
| Bottom-bracket drop | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm |
| Bottom-bracket height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Reach | 375 mm | 375 mm | 380 mm | 390 mm | 402 mm | 415 mm |
| Stack | 546 mm | 564 mm | 578 mm | 592 mm | 606 mm | 620 mm |
| Standover height | 718 mm | 738 mm | 757 mm | 775 mm | 793 mm | 811 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Crank length | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 75 mm | 75 mm | 90 mm | 90 mm | 90 mm | 90 mm |
| Handlebar width | 400 mm | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
50 geometry
Archive context: Its stack of 546 mm sits somewhat lower than typical. Its wheelbase of 1017 mm sits somewhat shorter than typical. The seat angle of 74.5° sits close to the middle of the group.
Compared with 87 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 50 geometry 52 geometry
Archive context: Its wheelbase of 1014 mm sits toward the shorter end. Its stack of 564 mm sits toward the lower end. Its reach of 375 mm sits toward the shorter end.
Compared with 98 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 52 geometry 54 geometry
Archive context: Its reach of 380 mm sits somewhat shorter than typical. The head angle of 71.5° sits somewhat steeper than typical. Its wheelbase of 1024 mm sits somewhat shorter than typical.
Compared with 98 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 54 geometry 56 geometry
Archive context: The seat angle of 74° sits toward the steeper end. Its stack of 592 mm sits somewhat lower than typical. Its wheelbase of 1039 mm sits somewhat shorter than typical.
Compared with 69 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 56 geometry 58 geometry
Archive context: The seat angle of 74° sits toward the steeper end. Its stack of 606 mm sits toward the lower end. Its wheelbase of 1055 mm sits toward the shorter end.
Compared with 74 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 58 geometry 60 geometry
Archive context: Its reach of 415 mm sits somewhat longer than typical. Its stack of 620 mm sits somewhat lower than typical. The seat angle of 73.5° sits somewhat steeper than typical.
Compared with 74 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 60 geometry Parts & serviceability
Find replacement parts
ChainKMC Z8Exact archived model
CassetteShimano HG31 8-Speed, 11-32TExact archived model
Front tireWTB, Exposure, 700Cx36, Wire BeadNamed tire and published size
More qualified parts (6)
CranksetFSA Tempo Compact, 50/34TNamed archived component — verify exact version
Front derailleurShimano ClarisNamed component · published drivetrain speed — verify exact version
Rear derailleurShimano Claris 8-SpeedComponent family — verify exact version
ShiftersShimano Claris 2x8-SpeedComponent family — verify exact version
Seatpost27.2 mm seatpostPublished diameter — verify length and setback
HeadsetFSA ORBIT CE No.8B, Sealed Cartridge BearingsNamed archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameCheck paint chips, vent holes and the inside of the seat tube for corrosion. Also look for dents, bent tubes and cracking around welded or brazed joints.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 8-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Marin Nicasio 1 · Cyclocross/Gravel · Published sizes: 50, 52, 54, 56, 58, 60
Frame and fork
Inspect the frame and fork →Archived: Frame: Steezy Double Butted CrMo, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount · Fork: CrMo, Fender and Rack Eyelets, IS Disc Mount
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Claris 2x8-Speed · Front derailleur: Shimano Claris · Rear derailleur: Shimano Claris 8-Speed · Crankset: FSA Tempo Compact, 50/34T · Bottom bracket: Sealed Cartridge Bearings, Square Taper · Cassette: Shimano HG31 8-Speed, 11-32T · Chain: KMC Z8
Brakes
Inspect the brakes →Archived: Brakes: (F) Promax Render R, Road Mechanical, 160mm Rotor / (R) Promax Render R, Road Mechanical, 160mm Rotor; Levers: Shimano w/ Integrated Shifters
Wheels and tires
Check wheels and tires →Archived: Rims: Marin Aluminum Double Wall, 19mm Inner, Disc Specific · Hubs: (F) Forged Aluminum Alloy, Disc, 32H / (R) Forged Aluminum Alloy, Disc, 32H · Front tire: WTB, Exposure, 700Cx36, Wire Bead · Rear tire: WTB, Exposure, 700Cx36, Wire Bead
Controls and contact points
Archived: Headset: FSA ORBIT CE No.8B, Sealed Cartridge Bearings · Handlebar: Marin Butted Alloy, Compact 16º Flared Drop · Stem: Marin 3D Forged Alloy · Seatpost: Marin Alloy, 27.2mm · Saddle: Marin Beyond Road Concept · Pedals: Nylon Platform
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
