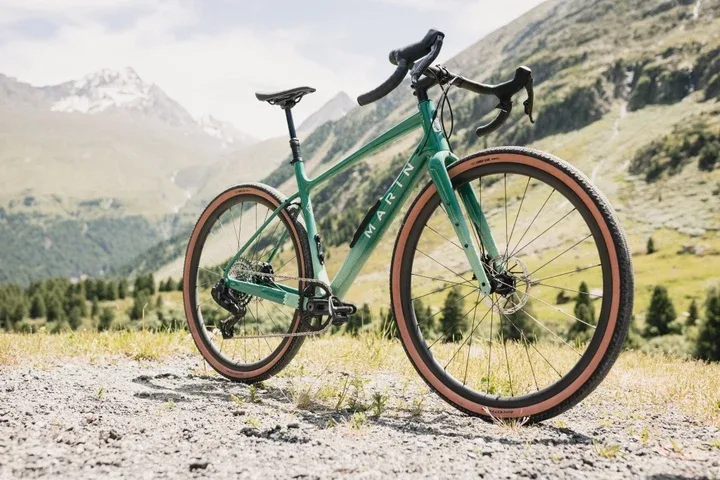

2025 Marin Headlands Frame Kit
Cyclocross/Gravel bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2025
- Category
- Gravel & Cyclocross
- Original MSRP
- $2,149.00
- Sizes
- 49, 52, 54, 56, 58, 60
- Colors
- Pink Purple
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 5 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900000506
Model history 1 other year
Frameset
| Frame Construction | Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Fork Material | Carbon Fiber |
Cockpit & Contact Points
| Headset | FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 49 | 52 | 54 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|
| Seat tube | 440 mm | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm |
| Effective top tube | 522 mm | 535 mm | 545 mm | 565 mm | 595 mm | 615 mm |
| Head tube | 120 mm | 135 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Head-tube angle | 70.5° | 71° | 71.5° | 71.5° | 71.5° | 71.5° |
| Seat-tube angle | 74.5° | 74° | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1010.2 mm | 1007.4 mm | 1007.7 mm | 1028.5 mm | 1059.2 mm | 1079.9 mm |
| Bottom-bracket drop | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm |
| Bottom-bracket height | 283.5 mm | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm |
| Reach | 370 mm | 372.8 mm | 372.7 mm | 386.4 mm | 411.4 mm | 425.8 mm |
| Stack | 550.3 mm | 565.7 mm | 581.8 mm | 600.8 mm | 619.7 mm | 638.7 mm |
| Standover height | 711 mm | 725 mm | 741 mm | 758 mm | 775 mm | 792 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
Geometry source: Marin first-party Headlands frame-kit geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
49 geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 370 mm sits somewhat shorter than typical. Its wheelbase of 1010.2 mm sits somewhat shorter than typical.
Compared with 87 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.52 geometry
Archive context: Its wheelbase of 1007.4 mm sits toward the shorter end. The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 372.8 mm sits toward the shorter end.
Compared with 98 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.54 geometry
Archive context: Its wheelbase of 1007.7 mm sits toward the shorter end. The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 372.7 mm sits toward the shorter end.
Compared with 98 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.56 geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its wheelbase of 1028.5 mm sits toward the shorter end. Its reach of 386.4 mm sits toward the shorter end.
Compared with 69 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.58 geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its wheelbase of 1059.2 mm sits somewhat shorter than typical. Its stack of 619.7 mm sits somewhat lower than typical.
Compared with 74 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.60 geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 425.8 mm sits toward the longer end. Its stack of 638.7 mm sits somewhat taller than typical.
Compared with 74 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Parts & serviceability
Find replacement parts
HeadsetFSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 14 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Marin Headlands Frame Kit · Cyclocross/Gravel · Published sizes: 49, 52, 54, 56, 58, 60
Frame and fork
Inspect the frame and fork →Archived: Frame: Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts · Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets · Carbon Fiber
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
