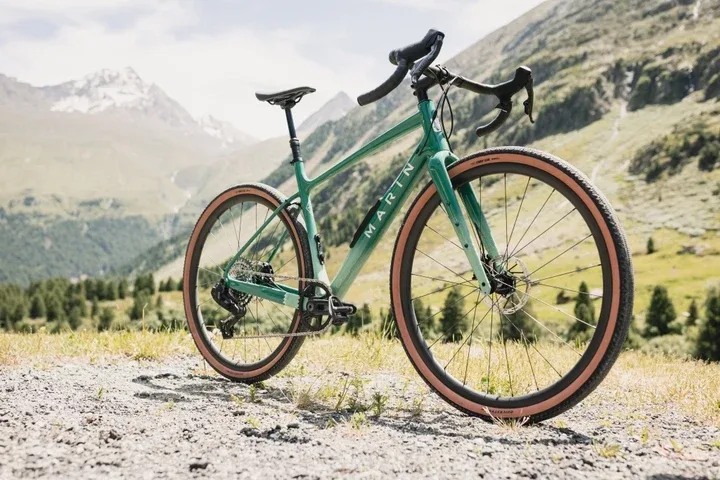

2025 Marin Headlands 3
Cyclocross/Gravel bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2025
- Category
- Gravel & Cyclocross
- Original MSRP
- $5,299.00
- Sizes
- 49, 52, 54, 56, 58, 60
- Colors
- Green Fade
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · 5 archived images · original MSRP · preserved geometry
- Archive ID
- 900000511
Frameset

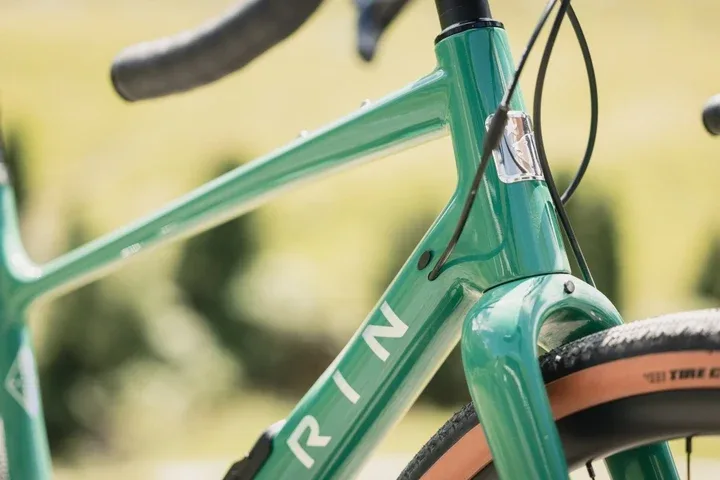

| Frame Construction | Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, UDH Dropout, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Bear Box Downtube Storage |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | SRAM Rival XPLR, Wireless |
|---|---|
| Rear Derailleur | SRAM Rival XPLR, 13-Speed |

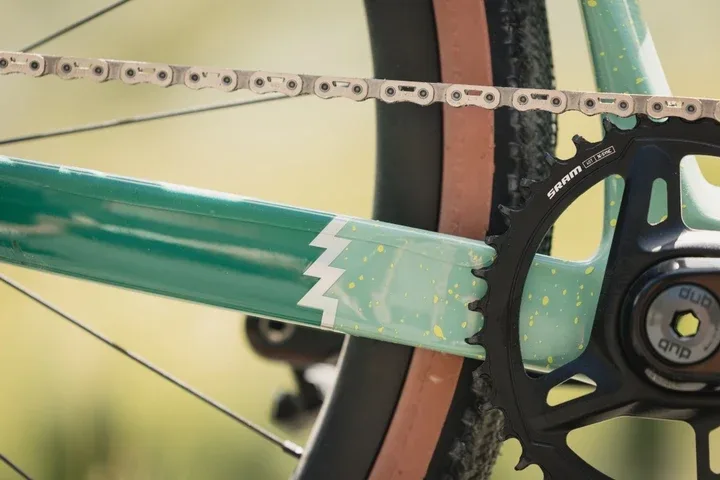

| Crankset | SRAM Rival XPLR, 40T |
| Bottom Bracket | SRAM DUB BSA |
| Cassette | SRAM CS-XG-1351, 10-46T |
| Chain | SRAM Rival 13-Speed |
Brakes
| Brakes | (F) SRAM Rival XPLR Flat-Mount Hydraulic Disc, 160mm Rotor / (R) SRAM Rival XPLR Flat-Mount Hydraulic Disc, 160mm Rotor; Levers: SRAM Rival XPLR w/ Integrated Shifter |
|---|
Cockpit & Contact Points
| Headset | FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
|---|---|
| Handlebar | Marin Butted Alloy, Compact 16º Flared Drop |
| Stem | Marin 3D Forged Alloy |
| Saddle | Marin Beyond Road Concept Elite |
| Seatpost | TranzX YSP38J, Size 49-54 70mm, Size 56-60 110mm Travel, 27.2mm |
Wheels & Tires
| Hubs | (F) Forged Aluminum Alloy, Disc, 24H / (R) Forged Aluminum Alloy, Disc, 24H, XD Driver |
|---|---|
| Rims | Novatec, G24 Carbon, 24mm Internal, 24 Hole, Tubeless Compatible |
| Spokes | Double Butted Stainless |
| Front Tire | Vee Tire Co., QuikStyk, 700x45,Folding Bead, Tubeless Compatible |
| Rear Tire | Vee Tire Co., QuikStyk, 700x45,Folding Bead, Tubeless Compatible |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 49 | 52 | 54 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|
| Seat tube | 440 mm | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm |
| Effective top tube | 520 mm | 531 mm | 541 mm | 559 mm | 590 mm | 610 mm |
| Head tube | 110 mm | 125 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Head-tube angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| Seat-tube angle | 74.5° | 74° | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1001 mm | 1008 mm | 1013 mm | 1032 mm | 1064 mm | 1086 mm |
| Bottom-bracket drop | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm |
| Bottom-bracket height | 289 mm | 289 mm | 289 mm | 289 mm | 289 mm | 289 mm |
| Reach | 370 mm | 372 mm | 372 mm | 385 mm | 410 mm | 425 mm |
| Stack | 541 mm | 555 mm | 569 mm | 588 mm | 607 mm | 626 mm |
| Standover height | 684 mm | 701 mm | 705 mm | 725 mm | 745 mm | 765 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Crank length | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 60 mm | 60 mm | 60 mm | 60 mm | 70 mm | 70 mm |
| Handlebar width | 420 mm | 420 mm | 420 mm | 440 mm | 440 mm | 440 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
49 geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its wheelbase of 1001 mm sits toward the shorter end. Its reach of 370 mm sits somewhat shorter than typical.
Compared with 87 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 49 geometry 52 geometry
Archive context: Its reach of 372 mm sits toward the shorter end. Its wheelbase of 1008 mm sits toward the shorter end. The chainstay of 420 mm sits toward the shorter rear-center end.
Compared with 98 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 52 geometry 54 geometry
Archive context: Its reach of 372 mm sits toward the shorter end. The chainstay of 420 mm sits toward the shorter rear-center end. Its wheelbase of 1013 mm sits toward the shorter end.
Compared with 98 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 54 geometry 56 geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 385 mm sits toward the shorter end. Its stack of 588 mm sits toward the lower end.
Compared with 69 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 56 geometry 58 geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its stack of 607 mm sits toward the lower end. The head angle of 70.5° sits somewhat slacker than typical.
Compared with 74 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 58 geometry 60 geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 425 mm sits toward the longer end. The head angle of 70.5° sits somewhat slacker than typical.
Compared with 74 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 60 geometry Parts & serviceability
Find replacement parts
ChainSRAM Rival 13-SpeedComponent family — verify exact version
CassetteSRAM CS-XG-1351, 10-46TExact archived model
Bottom bracketSRAM DUB BSANamed archived component — verify dimensions
More qualified parts (6)
CranksetSRAM Rival XPLR, 40TComponent family — verify exact version
Rear derailleurSRAM Rival XPLR, 13-SpeedComponent family — verify exact version
ShiftersSRAM Rival XPLR, WirelessNamed component · published drivetrain speed — verify exact version
Seatpost27.2 mm seatpostPublished diameter — verify length and setback
HeadsetFSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”Named archived component — verify dimensions
RimsNovatec, G24 Carbon, 24mm Internal, 24 Hole, Tubeless CompatibleNamed archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 13-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Marin Headlands 3 · Cyclocross/Gravel · Published sizes: 49, 52, 54, 56, 58, 60
Frame and fork
Inspect the frame and fork →Archived: Frame: Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, UDH Dropout, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Bear Box Downtube Storage · Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Rival XPLR, Wireless · Rear derailleur: SRAM Rival XPLR, 13-Speed · Crankset: SRAM Rival XPLR, 40T · Bottom bracket: SRAM DUB BSA · Cassette: SRAM CS-XG-1351, 10-46T · Chain: SRAM Rival 13-Speed
Brakes
Inspect the brakes →Archived: Brakes: (F) SRAM Rival XPLR Flat-Mount Hydraulic Disc, 160mm Rotor / (R) SRAM Rival XPLR Flat-Mount Hydraulic Disc, 160mm Rotor; Levers: SRAM Rival XPLR w/ Integrated Shifter
Wheels and tires
Check wheels and tires →Archived: Rims: Novatec, G24 Carbon, 24mm Internal, 24 Hole, Tubeless Compatible · Hubs: (F) Forged Aluminum Alloy, Disc, 24H / (R) Forged Aluminum Alloy, Disc, 24H, XD Driver · Front tire: Vee Tire Co., QuikStyk, 700x45,Folding Bead, Tubeless Compatible · Rear tire: Vee Tire Co., QuikStyk, 700x45,Folding Bead, Tubeless Compatible
Controls and contact points
Archived: Headset: FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” · Handlebar: Marin Butted Alloy, Compact 16º Flared Drop · Stem: Marin 3D Forged Alloy · Seatpost: TranzX YSP38J, Size 49-54 70mm, Size 56-60 110mm Travel, 27.2mm · Saddle: Marin Beyond Road Concept Elite
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
