Velopedia Bicycle Archive

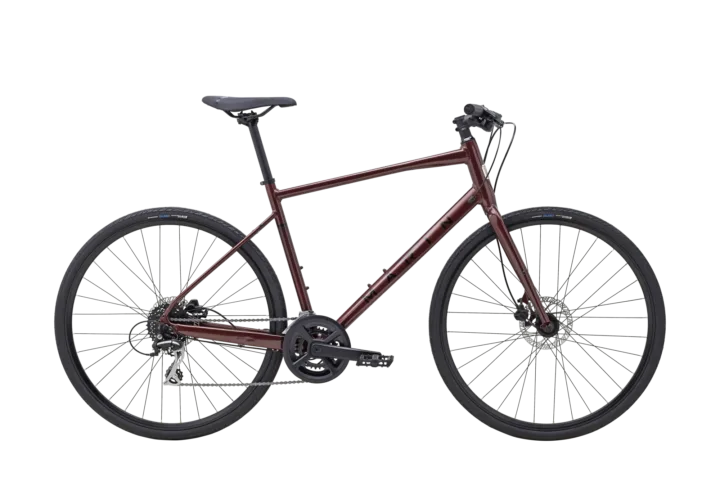

2025 Marin Fairfax 2
Hybrid bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2025
- Category
- Hybrid
- Original MSRP
- $799.00
- Sizes
- XS, S, M, L, XL
- Colors
- Blue Silver, Silver Black, Red Black
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900000732
Frameset
| Frame Construction | Series 2 Fitness, 6061 Aluminum, 700C Wheels, Internal Cable Routing,Disc Specific Forged QR Dropouts, Rear Kickstand Mount, Fender and Rack Mounts |
|---|---|
| Frame Material | Aluminum |
| Fork | 6061 Aluminum, Straight-Blade, Disc Mount, QR Dropouts, Fender and Rack Eyelets |
| Fork Material | Aluminum |
Drivetrain
| Shifters | Shimano Altus 2x8 |
|---|---|
| Rear Derailleur | Shimano Acera, 8-Speed |
| Crankset | Forged Alloy Crank, 46/30T, Ring Guard |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Cassette | SunRace 8-Speed, 11-34T |
| Chain | KMC Z8 |
| Pedals | Nylon Platform |
Brakes
| Brakes | (F) Tektro HDM275 Hydraulic Disc, 160mm Rotor / (R) Tektro HDM275 Hydraulic Disc, 160mm Rotor; Levers: Tektro Hydraulic |
|---|
Cockpit & Contact Points
| Headset | FSA, No.8B |
|---|---|
| Handlebar | Marin Alloy Flat, 31.8mm |
| Stem | Marin 3D Forged Alloy |
| Saddle | Marin Fitness Plush |
| Seatpost | Marin Alloy, 27.2mm |
Wheels & Tires
| Hubs | (F) Forged Aluminum Alloy, Disc, 32H / (R) Forged Aluminum Alloy, Disc, 32H |
|---|---|
| Rims | Marin Aluminum Double Wall, Disc Specific |
| Spokes | 14g Black Stainless Steel |
| Front Tire | Vee Tire, Zilent, 700Cx35mm, Puncture Protection, Wire Bead |
| Rear Tire | Vee Tire, Zilent, 700Cx35mm, Puncture Protection, Wire Bead |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat tube | 380 mm | 430 mm | 480 mm | 520 mm | 550 mm |
| Effective top tube | 550 mm | 569.2 mm | 594.8 mm | 620.4 mm | 643.8 mm |
| Head tube | 140 mm | 155 mm | 175 mm | 195 mm | 225 mm |
| Head-tube angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1050.01 mm | 1070 mm | 1096.7 mm | 1123.4 mm | 1148.4 mm |
| Bottom-bracket drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Bottom-bracket height | 283.5 mm | 283.5 mm | 283.5 mm | 283.5 mm | 283.5 mm |
| Reach | 385 mm | 400 mm | 420 mm | 440 mm | 455 mm |
| Stack | 557 mm | 571.3 mm | 590 mm | 609 mm | 637.3 mm |
| Standover height | 660.74 mm | 705.38 mm | 745.2 mm | 780.34 mm | 809.68 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Crank length | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Handlebar width | 640 mm | 640 mm | 680 mm | 680 mm | 680 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its bottom-bracket drop of 70 mm sits toward the deeper-drop end. The head angle of 70.5° sits somewhat steeper than typical. The seat angle of 73.5° sits somewhat steeper than typical.
Compared with 12 distinct hybrid geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: Its reach of 400 mm sits toward the longer end. Its bottom-bracket drop of 70 mm sits somewhat deeper than typical. The head angle of 70.5° sits somewhat steeper than typical.
Compared with 24 distinct hybrid geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its reach of 420 mm sits toward the longer end. Its bottom-bracket drop of 70 mm sits somewhat deeper than typical. The seat angle of 73.5° sits somewhat steeper than typical.
Compared with 26 distinct hybrid geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its reach of 440 mm sits toward the longer end. Its bottom-bracket drop of 70 mm sits somewhat deeper than typical. Its wheelbase of 1123.4 mm sits somewhat longer than typical.
Compared with 24 distinct hybrid geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its reach of 455 mm sits toward the longer end. Its wheelbase of 1148.4 mm sits toward the longer end. The seat angle of 73.5° sits somewhat steeper than typical.
Compared with 19 distinct hybrid geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
ChainKMC Z8Exact archived model
CassetteSunRace 8-Speed, 11-34TComponent family — verify exact version
Rear derailleurShimano Acera, 8-SpeedComponent family — verify exact version
More qualified parts (3)
ShiftersShimano Altus 2x8Component family — verify exact version
Seatpost27.2 mm seatpostPublished diameter — verify length and setback
HeadsetFSA, No.8BNamed archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 8-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Marin Fairfax 2 · Hybrid · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Series 2 Fitness, 6061 Aluminum, 700C Wheels, Internal Cable Routing,Disc Specific Forged QR Dropouts, Rear Kickstand Mount, Fender and Rack Mounts · Fork: 6061 Aluminum, Straight-Blade, Disc Mount, QR Dropouts, Fender and Rack Eyelets · Aluminum
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Altus 2x8 · Rear derailleur: Shimano Acera, 8-Speed · Crankset: Forged Alloy Crank, 46/30T, Ring Guard · Bottom bracket: Sealed Cartridge Bearings, Square Taper · Cassette: SunRace 8-Speed, 11-34T · Chain: KMC Z8
Brakes
Inspect the brakes →Archived: Brakes: (F) Tektro HDM275 Hydraulic Disc, 160mm Rotor / (R) Tektro HDM275 Hydraulic Disc, 160mm Rotor; Levers: Tektro Hydraulic
Wheels and tires
Check wheels and tires →Archived: Rims: Marin Aluminum Double Wall, Disc Specific · Hubs: (F) Forged Aluminum Alloy, Disc, 32H / (R) Forged Aluminum Alloy, Disc, 32H · Front tire: Vee Tire, Zilent, 700Cx35mm, Puncture Protection, Wire Bead · Rear tire: Vee Tire, Zilent, 700Cx35mm, Puncture Protection, Wire Bead
Controls and contact points
Archived: Headset: FSA, No.8B · Handlebar: Marin Alloy Flat, 31.8mm · Stem: Marin 3D Forged Alloy · Seatpost: Marin Alloy, 27.2mm · Saddle: Marin Fitness Plush · Pedals: Nylon Platform
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
