Velopedia Bicycle Archive

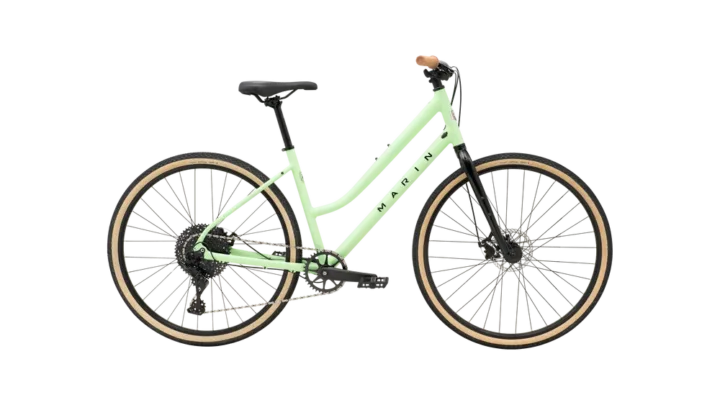

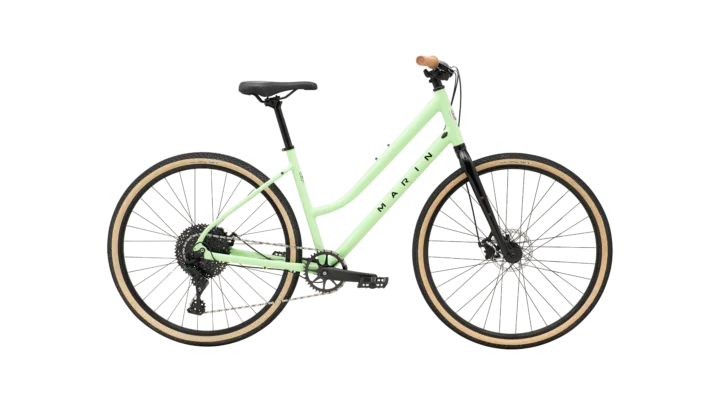

2023 Marin Kentfield 2 ST
Original specifications: geometry for 3 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900000738- Model year
- 2023
- Category
- Hybrid
- Original MSRP
- $749.00
- Sizes
- S, M, L
- Colors
- Light Green, Red
- Geometry
- 3 manufacturer sizes
- In this record
- 22 specifications · 8 archived images · original MSRP · geometry
Original buildAluminum
Frameset

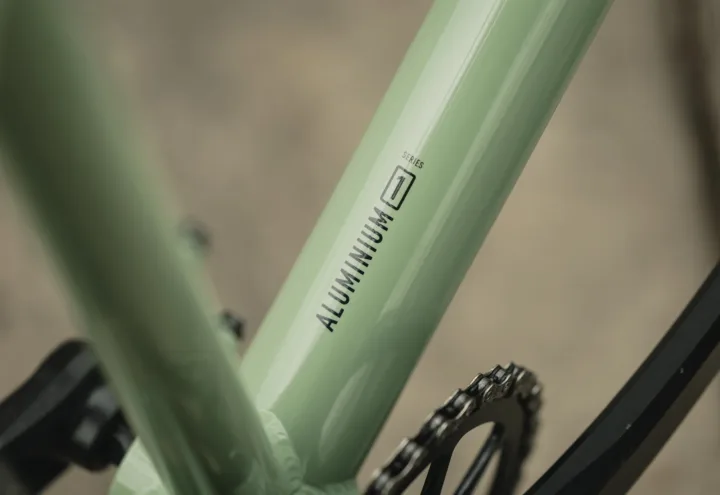

| Frame Construction | Series 1 6061 Aluminum, 700C Wheels, Step Through Design, Kickstand Mount, Fender and Rack Mounts |
|---|---|
| Frame Material | Aluminum |
| Fork | Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets |
| Fork Material | Steel |
Drivetrain
| Shifters | microSHIFT Advent X 10-Speed |
|---|---|
| Rear Derailleur | microSHIFT Advent X 10-Speed Wide Range |
| Crankset | Forged Alloy Crank, Steel Narrow Wide 38T Chainring |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Cassette | microSHIFT 10-Speed, 11-48T |
| Chain | KMC X10 |
| Pedals | Nylon Platform |
Brakes
| Brakes | (F) Tektro MDM280 Mechanical Disc, 160mm Rotor / (R) Tektro MDM280 Mechanical Disc, 160mm Rotor; Levers: Aluminum Lever |
|---|
Cockpit & Contact Points
| Headset | FSA 888 Threadless |
|---|---|
| Handlebar | Marin Alloy, 30mm Rise, 12˚ Backsweep |
| Stem | Marin Aluminum, 31.8mm Clamp |
| Saddle | Marin Adventure Plush |
| Seatpost | Marin Alloy, 27.2mm |
Wheels & Tires
| Hubs | (F) Forged Aluminum Alloy, 32H / (R) Forged Aluminum Alloy, 32H |
|---|---|
| Rims | Marin Aluminum Double Wall, Disc Specific |
| Spokes | 14g Stainless Steel |
| Front Tire | Vee Tire, GPVee, 700Cx40mm, Wire Bead, Flat Protection, Mixed Terrain Ready |
| Rear Tire | Vee Tire, GPVee, 700Cx40mm, Wire Bead, Flat Protection, Mixed Terrain Ready |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurements3 sizes · 16 measurements
| Measurement | S | M | L |
|---|---|---|---|
| Seat tube | 381 mm | 422 mm | 462 mm |
| Effective top tube | 557 mm | 567.7 mm | 591.9 mm |
| Head tube | 170 mm | 190 mm | 205 mm |
| Head-tube angle | 70° | 70° | 70° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1071 mm | 1082.9 mm | 1108 mm |
| Bottom-bracket drop | 70 mm | 70 mm | 70 mm |
| Bottom-bracket height | 294.5 mm | 294.5 mm | 294.5 mm |
| Reach | 375 mm | 380 mm | 400 mm |
| Stack | 615 mm | 633.6 mm | 648.4 mm |
| Standover height | 499 mm | 510.61 mm | 523.8 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm |
| Crank length | 170 mm | 170 mm | 175 mm |
| Stem length | 45 mm | 45 mm | 45 mm |
| Handlebar width | 680 mm | 680 mm | 740 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
