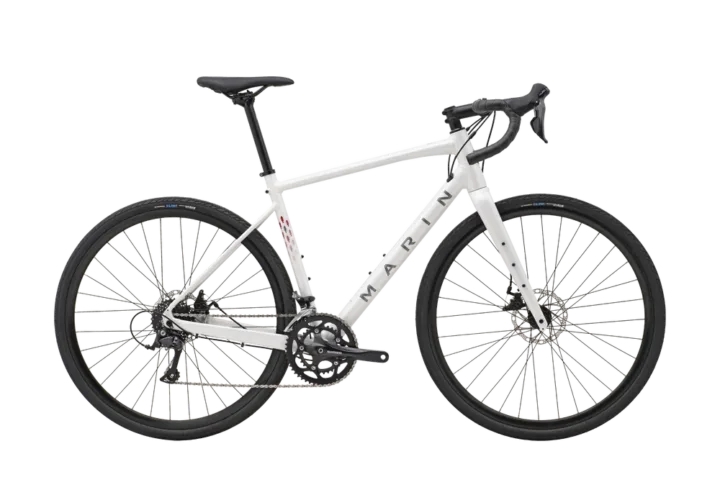

2023 Marin Gestalt 1
Cyclocross/Gravel bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2023
- Category
- Gravel & Cyclocross
- Original MSRP
- $1,399.00
- Sizes
- 50, 52, 54, 56, 58, 60
- Colors
- White
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 23 preserved details · 6 archived images · original MSRP · preserved geometry
- Archive ID
- 900000495
Frameset

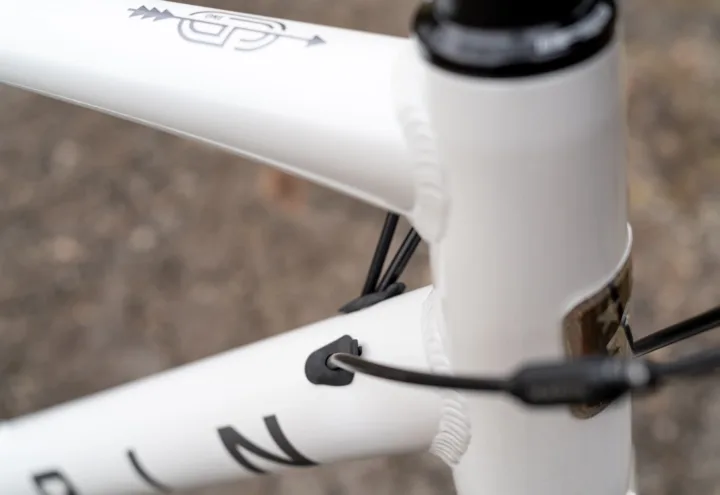

| Frame Construction | Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
|---|---|
| Frame Material | Aluminum |

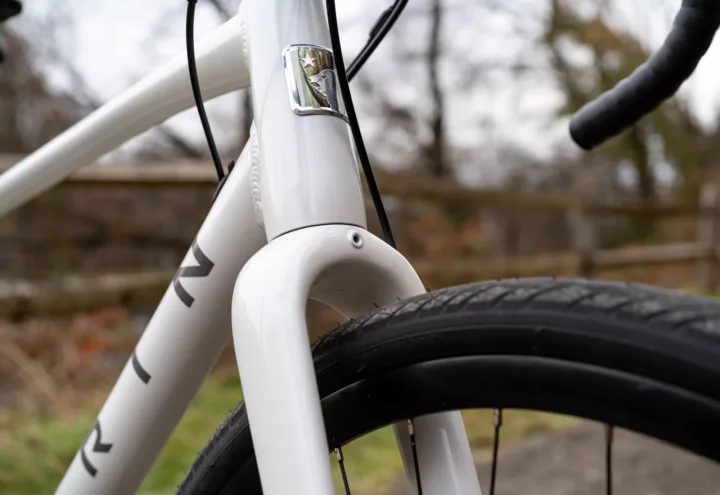

| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano Sora 2x9-Speed |
|---|---|
| Front Derailleur | Shimano Sora |
| Rear Derailleur | Shimano Sora 9-Speed |
| Crankset | Shimano R345 Octalink Compact, 50/34T |
| Bottom Bracket | Shimano Octalink V2 Cartridge |
| Cassette | SunRace 9-Speed, 11-32T |
| Chain | KMC X9 |
| Pedals | Nylon Platform |
Brakes

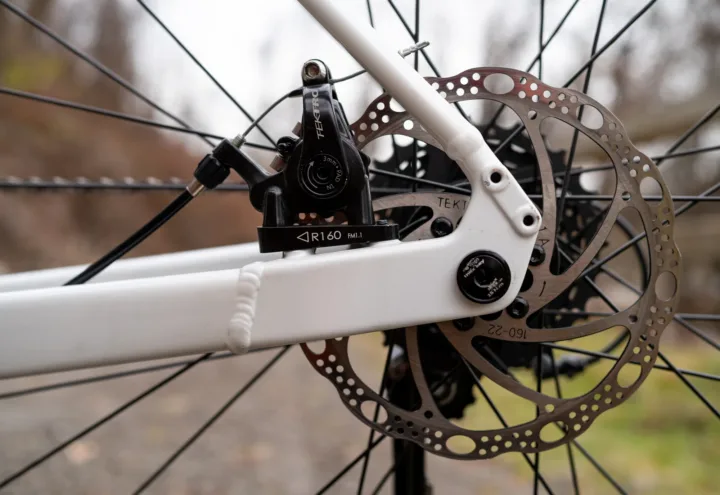

| Brakes | (F) Tektro MD-C550 Dual Piston Road Mechanical Disc, 160mm Rotor / (R) Tektro MD-C550 Dual Piston Road Mechanical Disc, 160mm Rotor; Levers: Shimano w/ Integrated Shifters |
|---|
Cockpit & Contact Points
| Headset | FSA No 42ACB, 1 1/8" x 1 1/2” |
|---|---|
| Handlebar | Marin Butted Alloy, Compact 16º Flared Drop |
| Stem | Marin 3D Forged Alloy |
| Saddle | Marin Beyond Road Concept |
| Seatpost | Marin Alloy, 27.2mm |
Wheels & Tires
| Hubs | (F) Forged Aluminum Alloy, 6-Bolt Disc, 32H / (R) Forged Aluminum Alloy, 6-Bolt Disc, 32H |
|---|---|
| Rims | Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible |
| Spokes | 14g Black Stainless Steel |
| Front Tire | WTB, Exposure Comp, 700x36 |
| Rear Tire | WTB, Exposure Comp, 700x36 |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 50 | 52 | 54 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|
| Seat tube | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Effective top tube | 520 mm | 535 mm | 550 mm | 565 mm | 585 mm | 600 mm |
| Head tube | 120 mm | 135 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Head-tube angle | 71° | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° |
| Seat-tube angle | 74.5° | 74° | 73.5° | 73.5° | 73.5° | 73° |
| Chainstay / rear center | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1008 mm | 1014 mm | 1024 mm | 1040 mm | 1060 mm | 1070 mm |
| Bottom-bracket drop | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm | 78 mm |
| Bottom-bracket height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Reach | 367 mm | 372 mm | 377 mm | 387 mm | 402 mm | 404 mm |
| Stack | 552 mm | 568 mm | 582 mm | 601 mm | 620 mm | 641 mm |
| Standover height | 714 mm | 732 mm | 755 mm | 775 mm | 794 mm | 814 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Crank length | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 70 mm | 70 mm | 90 mm | 90 mm | 110 mm | 110 mm |
| Handlebar width | 420 mm | 420 mm | 440 mm | 440 mm | 460 mm | 460 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
50 geometry
Archive context: Its reach of 367 mm sits toward the shorter end. Its wheelbase of 1008 mm sits somewhat shorter than typical. The head angle of 71° sits somewhat steeper than typical.
Compared with 59 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2022–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 50 geometry 52 geometry
Archive context: Its reach of 372 mm sits toward the shorter end. Its wheelbase of 1014 mm sits toward the shorter end. Its bottom-bracket drop of 78 mm sits toward the deeper-drop end.
Compared with 63 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2022–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 52 geometry 54 geometry
Archive context: Its bottom-bracket drop of 78 mm sits toward the deeper-drop end. The head angle of 71.5° sits somewhat steeper than typical. Its reach of 377 mm sits somewhat shorter than typical.
Compared with 63 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2022–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 54 geometry 56 geometry
Archive context: Its bottom-bracket drop of 78 mm sits toward the deeper-drop end. Its reach of 387 mm sits somewhat shorter than typical. Its wheelbase of 1040 mm sits somewhat shorter than typical.
Compared with 46 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2022–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 56 geometry 58 geometry
Archive context: Its bottom-bracket drop of 78 mm sits toward the deeper-drop end. The seat angle of 73.5° sits somewhat steeper than typical. Its wheelbase of 1060 mm sits somewhat shorter than typical.
Compared with 51 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2021–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 58 geometry 60 geometry
Archive context: Its bottom-bracket drop of 78 mm sits toward the deeper-drop end. Its stack of 641 mm sits somewhat taller than typical. The head angle of 71.5° sits somewhat steeper than typical.
Compared with 51 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2021–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 60 geometry Parts & serviceability
Find replacement parts
ChainKMC X9Exact archived model
CassetteSunRace 9-Speed, 11-32TComponent family — verify exact version
Front tireWTB, Exposure Comp, 700x36Named tire and published size
More qualified parts (6)
Brake pads(F) Tektro MD-C550 Dual Piston Road Mechanical DiscBrake model identified — verify pad shape
Bottom bracketShimano Octalink V2 CartridgeNamed archived component — verify dimensions
CranksetShimano R345 Octalink Compact, 50/34TNamed archived component — verify exact version
Front derailleurShimano SoraNamed component · published drivetrain speed — verify exact version
Rear derailleurShimano Sora 9-SpeedComponent family — verify exact version
ShiftersShimano Sora 2x9-SpeedComponent family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 9-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2023 Marin Gestalt 1 · Cyclocross/Gravel · Published sizes: 50, 52, 54, 56, 58, 60
Frame and fork
Inspect the frame and fork →Archived: Frame: Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle · Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Sora 2x9-Speed · Front derailleur: Shimano Sora · Rear derailleur: Shimano Sora 9-Speed · Crankset: Shimano R345 Octalink Compact, 50/34T · Bottom bracket: Shimano Octalink V2 Cartridge · Cassette: SunRace 9-Speed, 11-32T · Chain: KMC X9
Brakes
Inspect the brakes →Archived: Brakes: (F) Tektro MD-C550 Dual Piston Road Mechanical Disc, 160mm Rotor / (R) Tektro MD-C550 Dual Piston Road Mechanical Disc, 160mm Rotor; Levers: Shimano w/ Integrated Shifters
Wheels and tires
Check wheels and tires →Archived: Rims: Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible · Hubs: (F) Forged Aluminum Alloy, 6-Bolt Disc, 32H / (R) Forged Aluminum Alloy, 6-Bolt Disc, 32H · Front tire: WTB, Exposure Comp, 700x36 · Rear tire: WTB, Exposure Comp, 700x36
Controls and contact points
Archived: Headset: FSA No 42ACB, 1 1/8" x 1 1/2” · Handlebar: Marin Butted Alloy, Compact 16º Flared Drop · Stem: Marin 3D Forged Alloy · Seatpost: Marin Alloy, 27.2mm · Saddle: Marin Beyond Road Concept · Pedals: Nylon Platform
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
