Velopedia Bicycle Archive

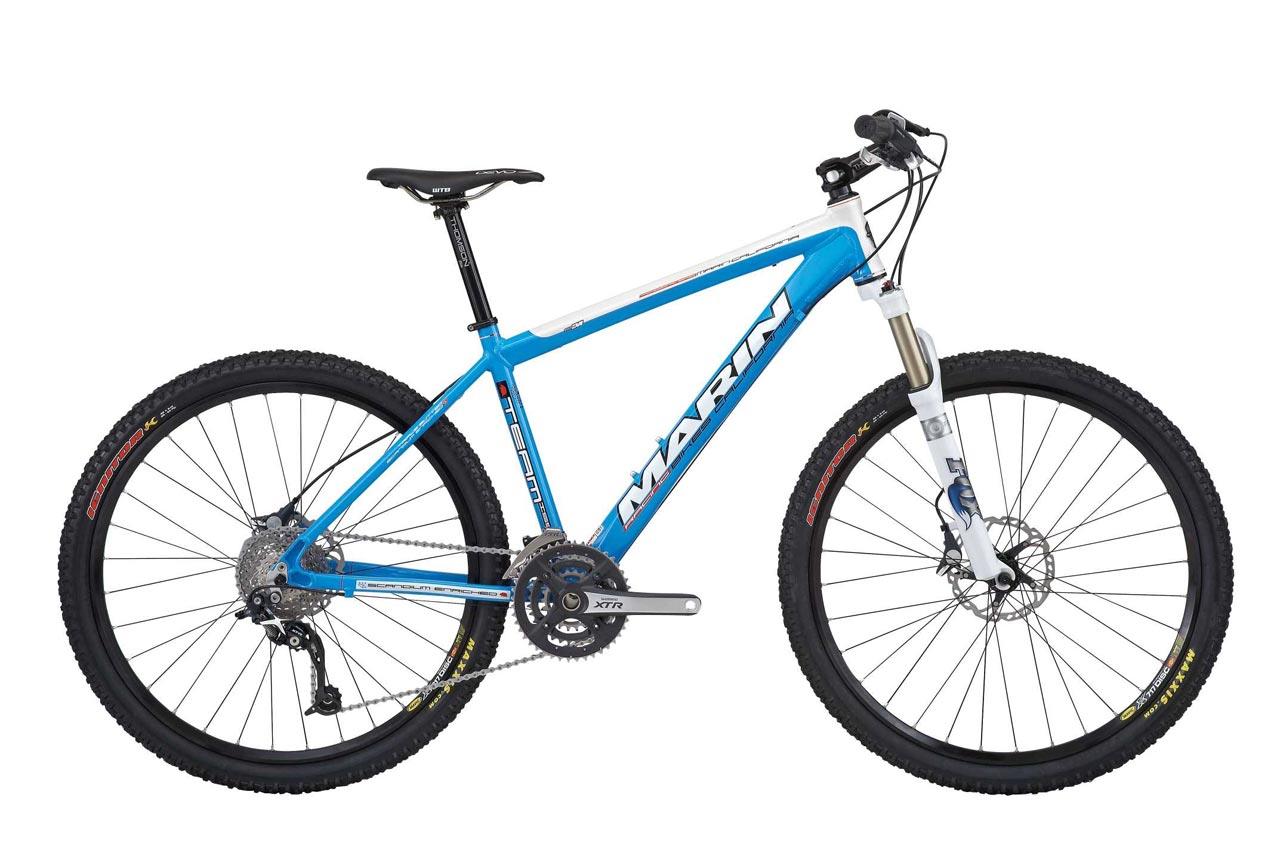

2009 Marin Team issue
Mountain bike, front suspension bicycle from the Velopedia historical specification archive.
- Original MSRP
- $4,599.99
- Sizes
- Xsmall, small, medium, large, xlarge
- Colors
- Marin Blue/White
- Archive ID
- 17725
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Scandium enriched Triple Butted aluminum |
| Fork | RockShox SID, 100mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano XTR |
|---|---|
| Shifters | Shimano XTR Rapid Fire |
| Front Derailleur | Shimano XTR |
| Rear Derailleur | Shimano XTR Shadow |
| Crankset | Shimano XTR, 22/32/44 teeth |
| Bottom Bracket | Shimano XTR Hollowtech II |
| Cassette | Shimano XTR |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano XTR |
| Pedals | N/A |
Brakes
| Brakes | Shimano XTR Disc brakes, Shimano XTR Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA Orbit Z |
|---|---|
| Handlebar | Easton Monkey Lite XC |
| Handlebar Extensions | Not included |
| Stem | Thomson Elite X-4 31.8 |
| Saddle | WTB Devo Team |
| Seatpost | Thomson Elite, 27.2mm diameter |
Wheels & Tires
| Hubs | DT Swiss 240S Centerlock Disc |
|---|---|
| Rims | Mavic XC717 Disc, 32-hole |
| Spokes | DT Swiss Super Comp stainless, 14/16.5/15ga. (2.0/1.7/1.8mm) butted |
| Spoke Nipples | Alloy |
| Front Tire | 26 x 2.10" Maxxis Ignitor |
| Wheel Size | 26" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
