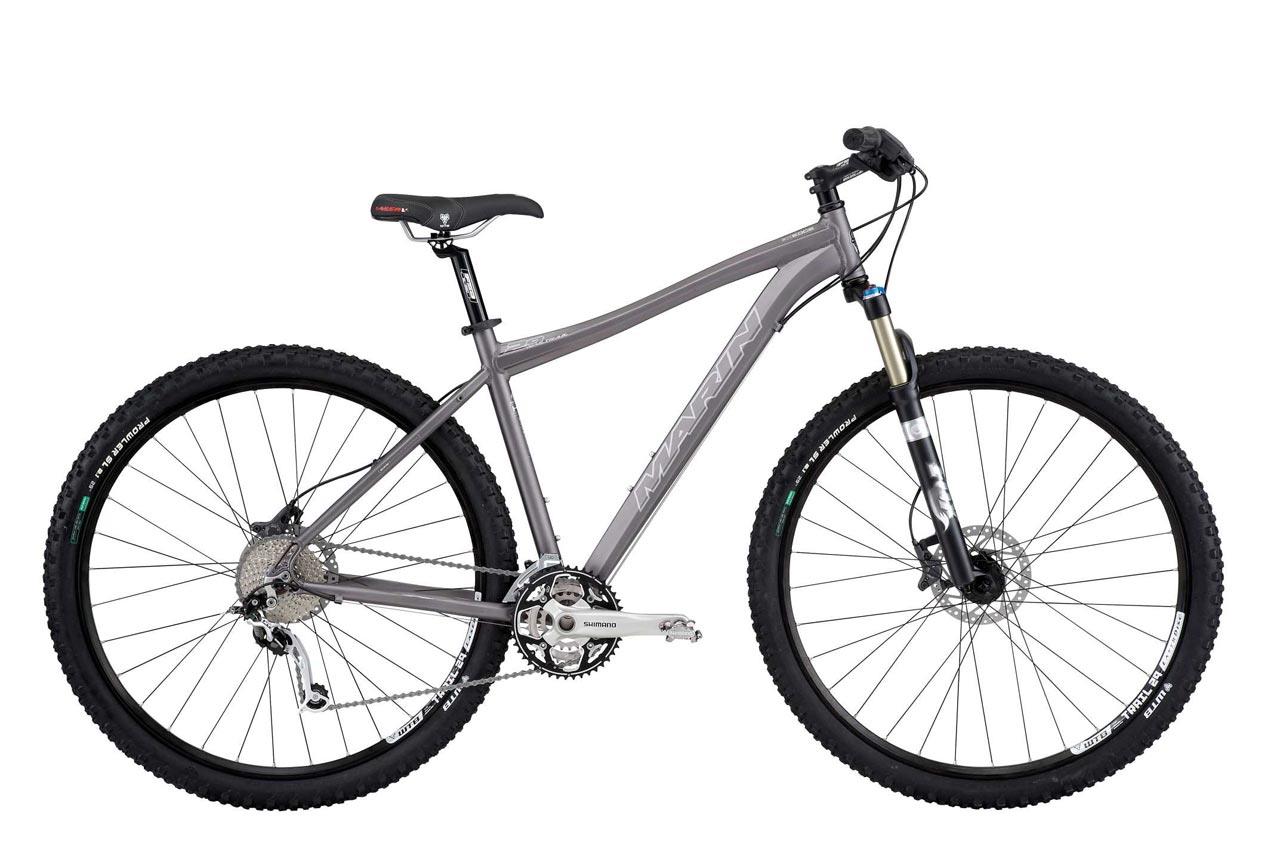

2009 Marin Nail Trail 29er
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,899.99
- Sizes
- 13", 15", 17", 19", 20.5", 22"
- Colors
- Gray Anodized
- Archive ID
- 17702
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 Double Butted Aluminum w/Hydroform TT |
| Fork | Fox 32 F29 RL, 100mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano SLX |
|---|---|
| Shifters | Shimano SLX RapidFire |
| Front Derailleur | Shimano SLX |
| Rear Derailleur | Shimano XT Shadow |
| Crankset | Shimano Hollowtech II, 22/32/44 teeth |
| Bottom Bracket | Shimano Hollowtech II |
| Cassette | Shimano |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano HG73 |
| Pedals | Shimano PD-M520 |
Brakes
| Brakes | Shimano SLX disc brakes, Shimano SLX Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" TH-888 |
|---|---|
| Handlebar | Double Butted 6061 Alloy OS riser |
| Handlebar Extensions | Not included |
| Stem | FSA OS-150LX |
| Saddle | WTB Laser V Comp |
| Seatpost | FSA SL-280, 30.9mm diameter |
Wheels & Tires
| Hubs | Shimano Deore disc |
|---|---|
| Rims | WTB LaserDisc Trail 29", 32-hole |
| Spokes | WTB stainless, 15ga. (1.8mm) |
| Front Tire | 29 x 2.10" WTB Prowler SL Comp |
| Wheel Size | 29" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
