Lowest1.11:1
Highest4.17:1
Total range375%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive

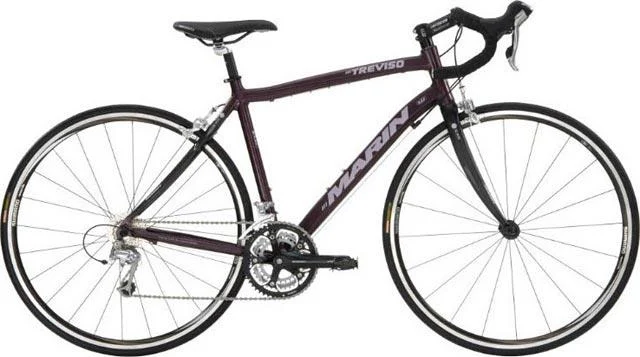

2008 Marin Treviso
Original specifications: Shimano 105 drivetrain · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #13171- Model year
- 2008
- Category
- Road
- Original MSRP
- $1,175.00
- Sizes
- Womens 52cm, womens 54cm, womens 56cm
- Colors
- Gloss Amethyst
- In this record
- 26 specifications · archived image · original MSRP
Model history 6 other years
Browse other years
Compare side by side
Identification clues
2008 archived details
- Published colors
- Gloss Amethyst
- Frame
- 6061 Aluminum/ Carbon Seat Stays
- Original equipment
- Shimano 105
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build6061 Aluminum/ Carbon Seat Stays · Shimano 105 · 700c wheels
Frameset
| Frame Construction | TIG-welded/bonded |
|---|---|
| Frame Material | 6061 Aluminum/ Carbon Seat Stays |
| Fork | Carbon Road |
| Fork Material | Carbon, aero crown |
Drivetrain
| Component Group | Shimano 105 |
|---|---|
| Shifters | Shimano R-700 Short Reach |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Crankset | FSA Gossamer, 30/39/50 teeth |
| Bottom Bracket | Sealed cartridge |
| Cassette | Shimano 105 |
| Rear Cogs | 10-speed, 12 - 27 teeth |
| Chain | Shimano 105 |
| Pedals | Composite with Alloy Cage |
Brakes
| Brakes | Dual pivot brakes, Shimano R-700 Short Reach levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Ritchey Comp Zero |
|---|---|
| Handlebar | 6061 Alloy Womens OS |
| Handlebar Extensions | Not included |
| Stem | FSA OS190 |
| Saddle | Marin Women’s Plush Road |
| Seatpost | Comp Alloy Micro Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Shimano WH-R500 |
|---|---|
| Rims | Shimano WH-R500, 20-hole/24-hole |
| Spokes | Shimano |
| Front Tire | 700 x 23c Kenda Koncept Lite |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
