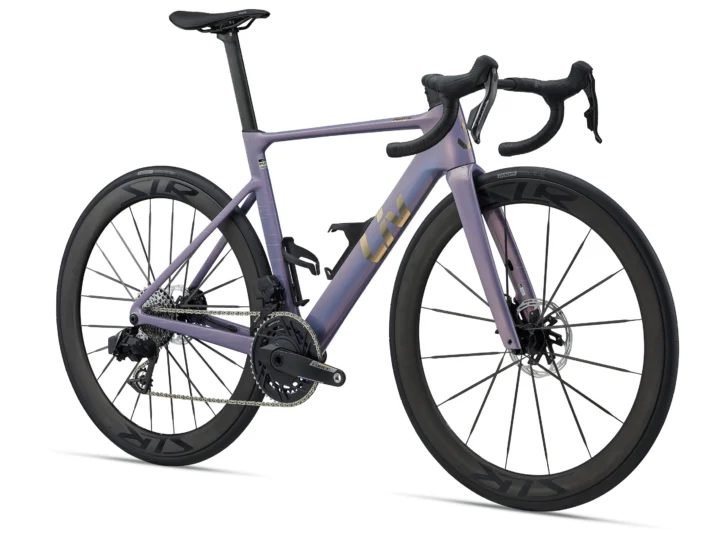

2027 Liv EnviLiv Advanced Pro 0-AXS
Original manufacturer specifications including geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Road
- Original MSRP
- $7,800.00
- Sizes
- XXS, XS, S, M, L
- Colors
- Ember Violet
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · 6 archived images · original MSRP · preserved geometry
- Archive ID
- 900002099
Frameset
| Frame Construction | Advanced-grade composite, 12x142mm thru-axle, disc |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Fork Material | Carbon Fiber |

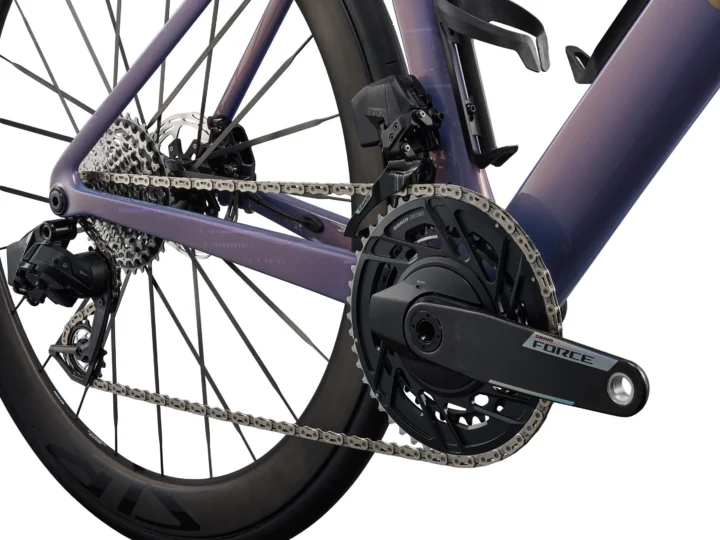

Drivetrain
| Shifters | SRAM Force AXS E1 |
|---|---|
| Front Derailleur | SRAM Force AXS E1 |
| Rear Derailleur | SRAM Force AXS E1 |
| Crankset | SRAM Force E1 DUB, 35/48 with Quarq power meter XXS: 160mm, XS: 165mm, S: 165mm, M: 170mm, L: 170mm |
| Bottom Bracket | SRAM DUB, press fit |
| Cassette | SRAM Force E1, 12-speed, 10x36 |
| Chain | SRAM Force E1 |
Brakes
| Brakes | SRAM Force AXS E1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm |
|---|
Cockpit & Contact Points

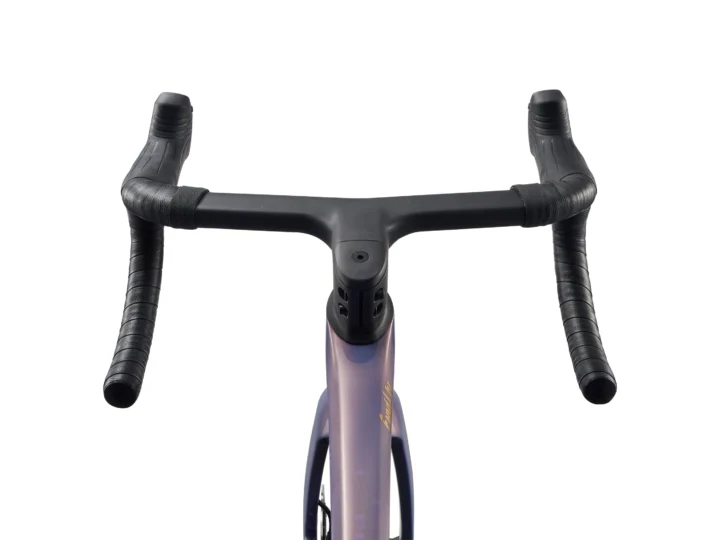

| Handlebar | Liv Contact SLR 0 Aero Integrated, 31.8mm, 72mm reach, 125mm drop XXS: 340/360mm, XS: 340/360mm, S: 360/380mm, M: 370/400mm, L: 390/420mm |
|---|---|
| Stem | Liv Contact SLR 0 Aero Integrated, -10-degree XXS: 80mm, XS: 80mm, S: 90mm, M: 100mm, L: 110mm |
| Saddle | Liv Alacra SL |
| Seatpost | Giant Vector, composite, -5/ +15mm offset XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm |
Wheels & Tires
| Hubs | [F] Giant Aero Hub, CenterLock, 12mm thru-axle [R] Giant Aero Hub, 40T ratchet driver, CenterLock, 12mm thru-axle |
|---|---|
| Rims | Giant SLR 0 50 Carbon Disc WheelSystem, [F] 50mm, [R] 50mm |
| Spokes | Super Aero Carbon |
| Front Tire | CADEX Aero, tubeless, 700x28c, folding |
| Rear Tire | CADEX Aero, tubeless, 700x28c, folding |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L |
|---|---|---|---|---|
| Seat tube | 465 mm | 498 mm | 528 mm | 558 mm |
| Top tube | 514.8 mm | 526.2 mm | 541.2 mm | 560.6 mm |
| Head tube | 115 mm | 130 mm | 150 mm | 170 mm |
| Head-tube angle | 71° | 72° | 72.5° | 72.5° |
| Seat-tube angle | 75° | 74.5° | 74° | 73.5° |
| Chainstay / rear center | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 974.7 mm | 977 mm | 984.1 mm | 999.3 mm |
| Bottom-bracket drop | 72 mm | 70 mm | 70 mm | 70 mm |
| Reach | 372.9 mm | 377.8 mm | 382.9 mm | 392.1 mm |
| Stack | 511.8 mm | 527 mm | 547.8 mm | 566.9 mm |
| Standover height | 732.6 mm | 760.8 mm | 786.9 mm | 814 mm |
| Fork offset / rake | 49 mm | 49 mm | 49 mm | 49 mm |
| Trail | 66.8 mm | 60.4 mm | 57.2 mm | 57.2 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 170 mm |
| Stem length | 80 mm | 90 mm | 100 mm | 110 mm |
| Handlebar width | 380 mm | 380 mm | 400 mm | 420 mm |
Geometry source: Liv first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: The chainstay of 405 mm sits toward the shorter rear-center end. Its wheelbase of 974.7 mm sits somewhat shorter than typical. Its bottom-bracket drop of 72 mm sits somewhat shallower than typical.
Compared with 61 distinct road geometries in the XS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: The chainstay of 405 mm sits toward the shorter rear-center end. Its bottom-bracket drop of 70 mm sits toward the shallower-drop end. Its wheelbase of 977 mm sits toward the shorter end.
Compared with 83 distinct road geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: The chainstay of 405 mm sits toward the shorter rear-center end. Its trail of 57.2 mm sits toward the lower-trail end. Its bottom-bracket drop of 70 mm sits somewhat shallower than typical.
Compared with 84 distinct road geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: The chainstay of 405 mm sits toward the shorter rear-center end. Its trail of 57.2 mm sits somewhat lower than typical. Its bottom-bracket drop of 70 mm sits somewhat shallower than typical.
Compared with 73 distinct road geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry Parts & serviceability
Find replacement parts
SRAM Force E1
Interpreted as SRAM Force · 12-speed Named component · published drivetrain speed — verify exact version
SRAM Force E1, 12-speed, 10x36
Interpreted as SRAM Force · 12-speed Component family — verify exact version
SRAM DUB, press fit
Named archived component — verify dimensions
More qualified parts (4)
SRAM Force E1 DUB, 35/48 with Quarq power meter XXS: 160mm, XS: 165mm, S: 165mm, M: 170mm, L: 170mm
Named archived component — verify exact version
SRAM Force AXS E1
Interpreted as SRAM Force · 12-speed · electronic Component family — verify exact version
SRAM Force AXS E1
Interpreted as SRAM Force · 12-speed · electronic Component family — verify exact version
SRAM Force AXS E1
Interpreted as SRAM Force · 12-speed · electronic Component family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Liv EnviLiv Advanced Pro 0-AXS · Road · Published sizes: XXS, XS, S, M, L
Frame and fork
Inspect the frame and fork →Archived: Frame: Advanced-grade composite, 12x142mm thru-axle, disc · Fork: Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Force AXS E1 · Front derailleur: SRAM Force AXS E1 · Rear derailleur: SRAM Force AXS E1 · Crankset: SRAM Force E1 DUB, 35/48 with Quarq power meter XXS: 160mm, XS: 165mm, S: 165mm, M: 170mm, L: 170mm · Bottom bracket: SRAM DUB, press fit · Cassette: SRAM Force E1, 12-speed, 10x36 · Chain: SRAM Force E1
Brakes
Inspect the brakes →Archived: Brakes: SRAM Force AXS E1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant SLR 0 50 Carbon Disc WheelSystem, [F] 50mm, [R] 50mm · Hubs: [F] Giant Aero Hub, CenterLock, 12mm thru-axle [R] Giant Aero Hub, 40T ratchet driver, CenterLock, 12mm thru-axle · Front tire: CADEX Aero, tubeless, 700x28c, folding · Rear tire: CADEX Aero, tubeless, 700x28c, folding
Controls and contact points
Archived: Handlebar: Liv Contact SLR 0 Aero Integrated, 31.8mm, 72mm reach, 125mm drop XXS: 340/360mm, XS: 340/360mm, S: 360/380mm, M: 370/400mm, L: 390/420mm · Stem: Liv Contact SLR 0 Aero Integrated, -10-degree XXS: 80mm, XS: 80mm, S: 90mm, M: 100mm, L: 110mm · Seatpost: Giant Vector, composite, -5/ +15mm offset XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm · Saddle: Liv Alacra SL
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
