2023 Liv Lurra 1
Original manufacturer specifications including 13.32kg (29lbs 05oz) Size - (S) published weight, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2023
- Category
- Mountain
- Original MSRP
- $1,650.00
- Sizes
- XS (27.5"), S (27.5"), S (29"), M (29"), L (29")
- Colors
- Starry Night (matte)
- Weight
- 13.32kg (29lbs 05oz) Size - (S)
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 23 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900002150
Frameset

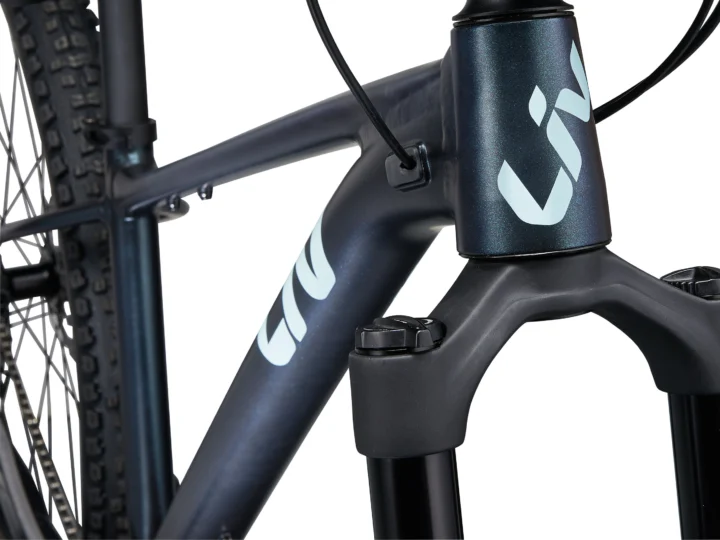

| Frame Construction | ALUXX SL-Grade Aluminum, 12x148 thru-axle |
|---|---|
| Frame Material | Aluminum |

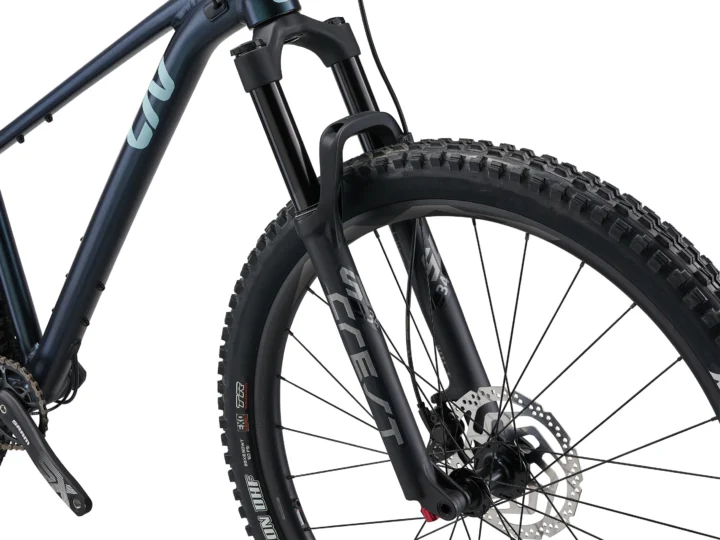

| Fork | Giant Crest 34 SL RCL, 130mm, 15x110 |
| Rear Shock | N/A |
Drivetrain
| Shifters | SRAM SX Eagle, 1x12 |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | SRAM NX Eagle |
| Crankset | "SRAM SX Eagle PowerSpline, 30t, For 27.5": XS: 165mm, S: 170mm For 29": S: 170mm, M: 170mm, L: 170mm |
| Bottom Bracket | SRAM PowerSpline, threaded |
| Cassette | SRAM SX Eagle, 11x50 |
| Chain | SRAM SX Eagle |
| Pedals | platform |
Brakes
| Brakes | Shimano BR-MT420 [F], Shimano BR-MT410 [R], hydraulic, Shimano SM-RT26 rotors [F]180mm, [R]180mm |
|---|
Cockpit & Contact Points

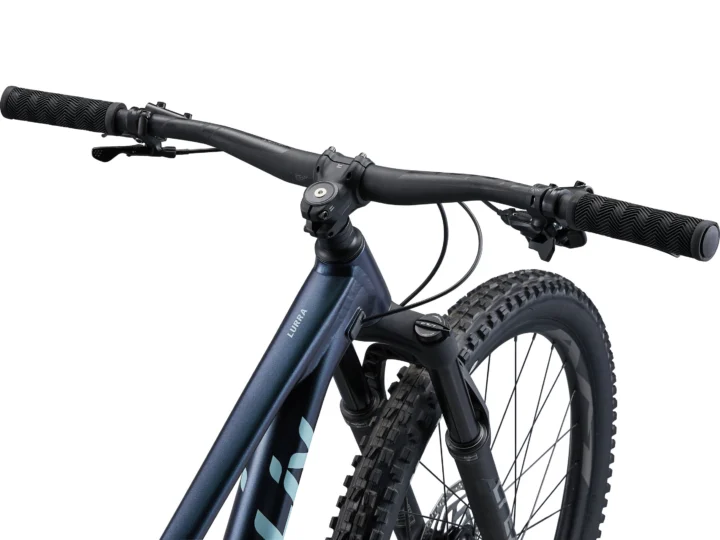

| Handlebar | Giant Contact TR35, alloy, 27.5": XS: 760mm, S: 760mm 29": S: 760mm, M: 760mm, L: 780mm |
|---|---|
| Stem | Giant Contact SL 35 For 27.5": XS: 40mm, S: 40mm For 29"": S: 40mm, M: 50mm, L: 50mm |
| Saddle | Liv Sylvia |
| Seatpost | Giant Contact Switch dropper, remote For 27.5"": XS: 100mm travel / 30.9 x 345mm S: 100mm travel / 30.9 x 345mm For 29"": S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm |
Wheels & Tires
| Hubs | alloy, open-race sealed bearings |
|---|---|
| Rims | For 27.5": Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width For 29": Giant AM 29, tubeless ready, sleeve-joint rim, 30mm inner width |
| Spokes | Sapim |
| Front Tire | For 27.5": Maxxis Ardent Race 27.5x2.6, EXO, TR, tubeless For 29": [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR, tubeless, [R] Maxxis Aggressor 29x2.5 WT, EXO, TR, tubeless |
| Rear Tire | For 27.5": Maxxis Ardent Race 27.5x2.6, EXO, TR, tubeless For 29": [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR, tubeless, [R] Maxxis Aggressor 29x2.5 WT, EXO, TR, tubeless |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS (27.5") | S (27.5") | S (29") | M (29") | L (29") |
|---|---|---|---|---|---|
| Seat tube | 360 mm | 380 mm | 380 mm | 410 mm | 430 mm |
| Top tube | 544 mm | 564 mm | 554 mm | 575 mm | 596 mm |
| Head tube | 95 mm | 105 mm | 90 mm | 100 mm | 110 mm |
| Head-tube angle | 66° | 66° | 66° | 66° | 66° |
| Seat-tube angle | 76° | 76° | 76.5° | 76.5° | 76.5° |
| Chainstay / rear center | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1118 mm | 1140 mm | 1136 mm | 1159 mm | 1182 mm |
| Bottom-bracket drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Reach | 393 mm | 410 mm | 406 mm | 425 mm | 443 mm |
| Stack | 608 mm | 617 mm | 618 mm | 627 mm | 636 mm |
| Standover height | 613 mm | 661 mm | 661 mm | 712 mm | 737 mm |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 113.9 mm | 113.9 mm | 121.7 mm | 121.7 mm | 121.7 mm |
| Crank length | 165 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 40 mm | 40 mm | 40 mm | 50 mm | 50 mm |
| Handlebar width | 760 mm | 760 mm | 760 mm | 760 mm | 780 mm |
| Wheel size | 27.5" | 27.5" | 29" | 29" | 29" |
Geometry source: Liv first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS (27.5") geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the deeper-drop end. Its stack of 608 mm sits toward the taller end. Its reach of 393 mm sits toward the shorter end.
Compared with 37 distinct mountain geometries in the XS-equivalent size cohort from model years 2021–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS (27.5") geometry S (27.5") geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the deeper-drop end. Its reach of 410 mm sits toward the shorter end. The chainstay of 438 mm sits somewhat longer than typical.
Compared with 135 distinct mountain geometries in the Small-equivalent size cohort from model years 2021–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S (27.5") geometry S (29") geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the deeper-drop end. Its reach of 406 mm sits toward the shorter end. The chainstay of 438 mm sits somewhat longer than typical.
Compared with 135 distinct mountain geometries in the Small-equivalent size cohort from model years 2021–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S (29") geometry M (29") geometry
Archive context: Its reach of 425 mm sits toward the shorter end. Its bottom-bracket drop of 60 mm sits toward the deeper-drop end. Its wheelbase of 1159 mm sits somewhat shorter than typical.
Compared with 135 distinct mountain geometries in the Medium-equivalent size cohort from model years 2021–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M (29") geometry L (29") geometry
Archive context: Its reach of 443 mm sits toward the shorter end. Its bottom-bracket drop of 60 mm sits toward the deeper-drop end. Its wheelbase of 1182 mm sits somewhat shorter than typical.
Compared with 125 distinct mountain geometries in the Large-equivalent size cohort from model years 2021–2025 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L (29") geometry Parts & serviceability
Find replacement parts
SRAM SX Eagle
Interpreted as SRAM SX · 12-speed Named component · published drivetrain speed — verify exact version
SRAM SX Eagle, 11x50
Interpreted as SRAM SX · 12-speed Named component · published drivetrain speed — verify exact version
Shimano MT410 resin brake pads — B05S-RX
Manufacturer-verified pad family — compare pad shape
More qualified parts (4)
SRAM PowerSpline, threaded
Named archived component — verify dimensions
"SRAM SX Eagle PowerSpline, 30t, For 27.5": XS: 165mm, S: 170mm For 29": S: 170mm, M: 170mm, L: 170mm
Component family — verify exact version
SRAM NX Eagle
Interpreted as SRAM NX · 12-speed · mechanical Named component · published drivetrain speed — verify exact version
SRAM SX Eagle, 1x12
Interpreted as SRAM SX · 12-speed · mechanical Component family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2023 Liv Lurra 1 · Mountain · Published sizes: XS (27.5"), S (27.5"), S (29"), M (29"), L (29")
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX SL-Grade Aluminum, 12x148 thru-axle · Fork: Giant Crest 34 SL RCL, 130mm, 15x110
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM SX Eagle, 1x12 · Rear derailleur: SRAM NX Eagle · Crankset: "SRAM SX Eagle PowerSpline, 30t, For 27.5": XS: 165mm, S: 170mm For 29": S: 170mm, M: 170mm, L: 170mm · Bottom bracket: SRAM PowerSpline, threaded · Cassette: SRAM SX Eagle, 11x50 · Chain: SRAM SX Eagle
Brakes
Inspect the brakes →Archived: Brakes: Shimano BR-MT420 [F], Shimano BR-MT410 [R], hydraulic, Shimano SM-RT26 rotors [F]180mm, [R]180mm
Wheels and tires
Check wheels and tires →Archived: Rims: For 27.5": Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width For 29": Giant AM 29, tubeless ready, sleeve-joint rim, 30mm inner width · Hubs: alloy, open-race sealed bearings · Front tire: For 27.5": Maxxis Ardent Race 27.5x2.6, EXO, TR, tubeless For 29": [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR, tubeless, [R] Maxxis Aggressor 29x2.5 WT, EXO, TR, tubeless · Rear tire: For 27.5": Maxxis Ardent Race 27.5x2.6, EXO, TR, tubeless For 29": [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR, tubeless, [R]…
Controls and contact points
Archived: Handlebar: Giant Contact TR35, alloy, 27.5": XS: 760mm, S: 760mm 29": S: 760mm, M: 760mm, L: 780mm · Stem: Giant Contact SL 35 For 27.5": XS: 40mm, S: 40mm For 29"": S: 40mm, M: 50mm, L: 50mm · Saddle: Liv Sylvia · Pedals: platform
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
