Velopedia Bicycle Archive

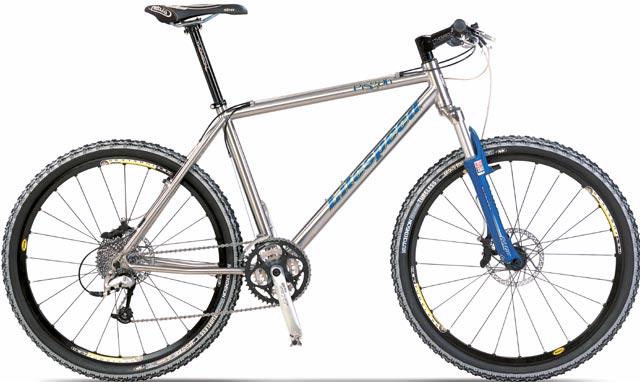

2003 Litespeed Pisgah XTR Disc
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $3,960.00
- Sizes
- 12", 14", 16.5", 18", 19.5"
- Colors
- Brushed
- Archive ID
- 39162
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 3Al/2.5V titanium |
| Fork | Rock Shox Sid Team |
| Fork Material | Aluminum/magnesium, single crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano XTR |
|---|---|
| Shifters | Shimano XTR STI Dual Control |
| Front Derailleur | Shimano XTR, top-pull/clamp-on 35.0mm |
| Rear Derailleur | Shimano XTR SGS |
| Crankset | Shimano XTR M960, 22/32/44 teeth |
| Bottom Bracket | Shimano XTR integral, 116mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano CN-7701, 1/2 x 3/32" |
| Pedals | Not included |
Brakes
| Brakes | Shimano Deore XT M755 hydraulic disc front/Shimano Deore XT M756 hydraulic rear brakes, Shimano XTR STI levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Cane Creek IS-5 Integrated |
|---|---|
| Handlebar | Litespeed aluminum |
| Handlebar Extensions | Not included |
| Stem | Thomson Elite |
| Saddle | Selle Italia Flite |
| Seatpost | Thomson Elite, 27.2mm diameter |
Wheels & Tires
| Hubs | Shimano Deore XT disc |
|---|---|
| Rims | Mavic X 3.1, 32-hole |
| Spokes | Wheelsmith stainless steel, 14/15ga. (2.0/1.8mm) double-butted |
| Spoke Nipples | Aluminum nipples |
| Front Tire | 26 x 2.00" |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
