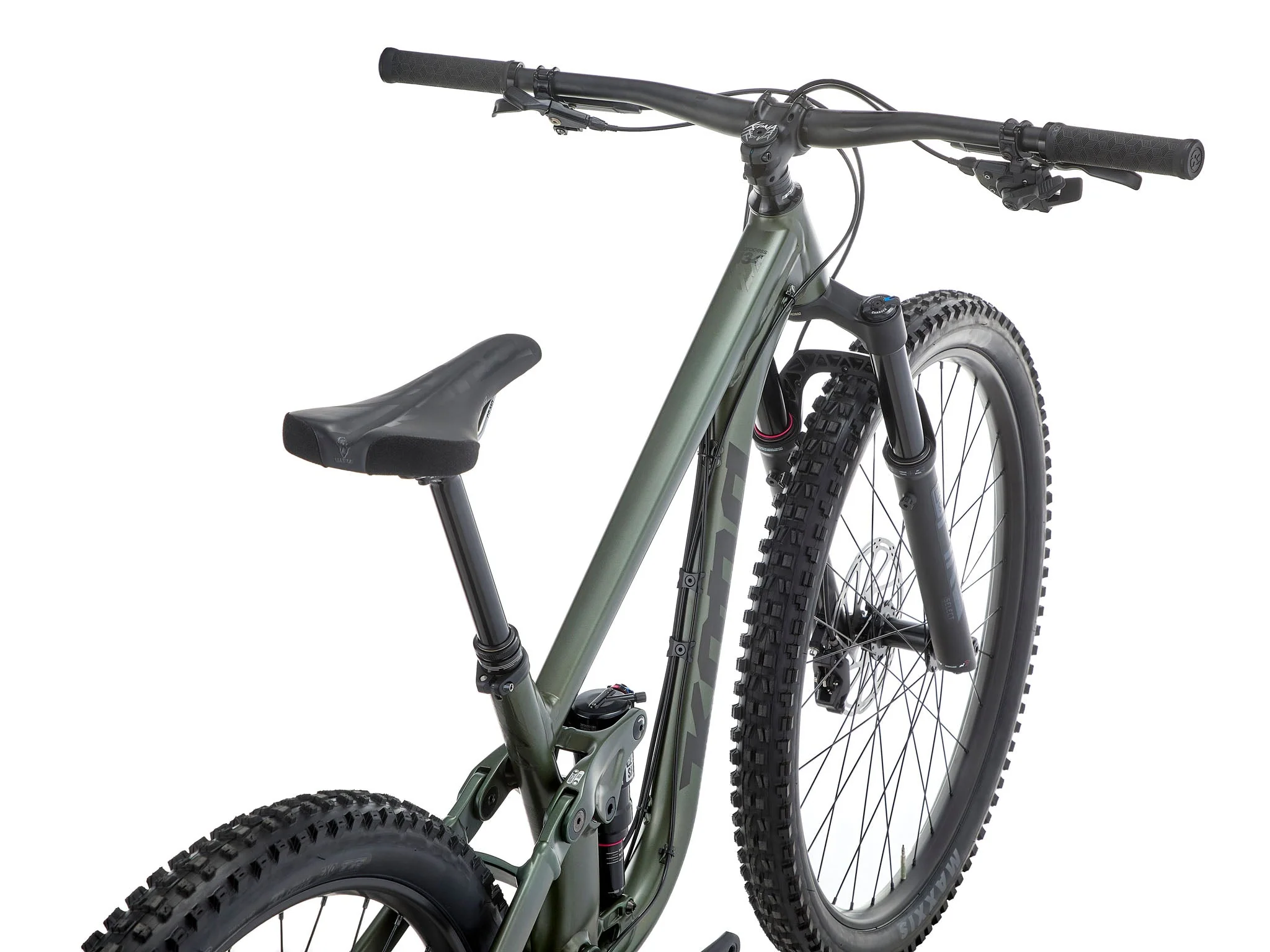

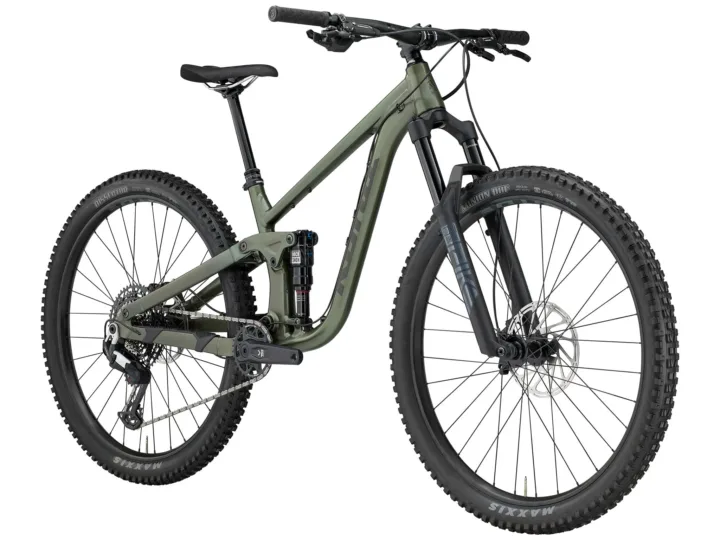

2026 Kona Process 134 DL

Archived: Frame: Kona 6061 Aluminum Butted 134mm Travel · Fork: RockShox Pike Select+ 140mm 29" (Size XS 27.5")

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Archived: Fork: RockShox Pike Select+ 140mm 29" (Size XS 27.5") · Rear shock: RockShox Deluxe Ultimate 185x50mm

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.

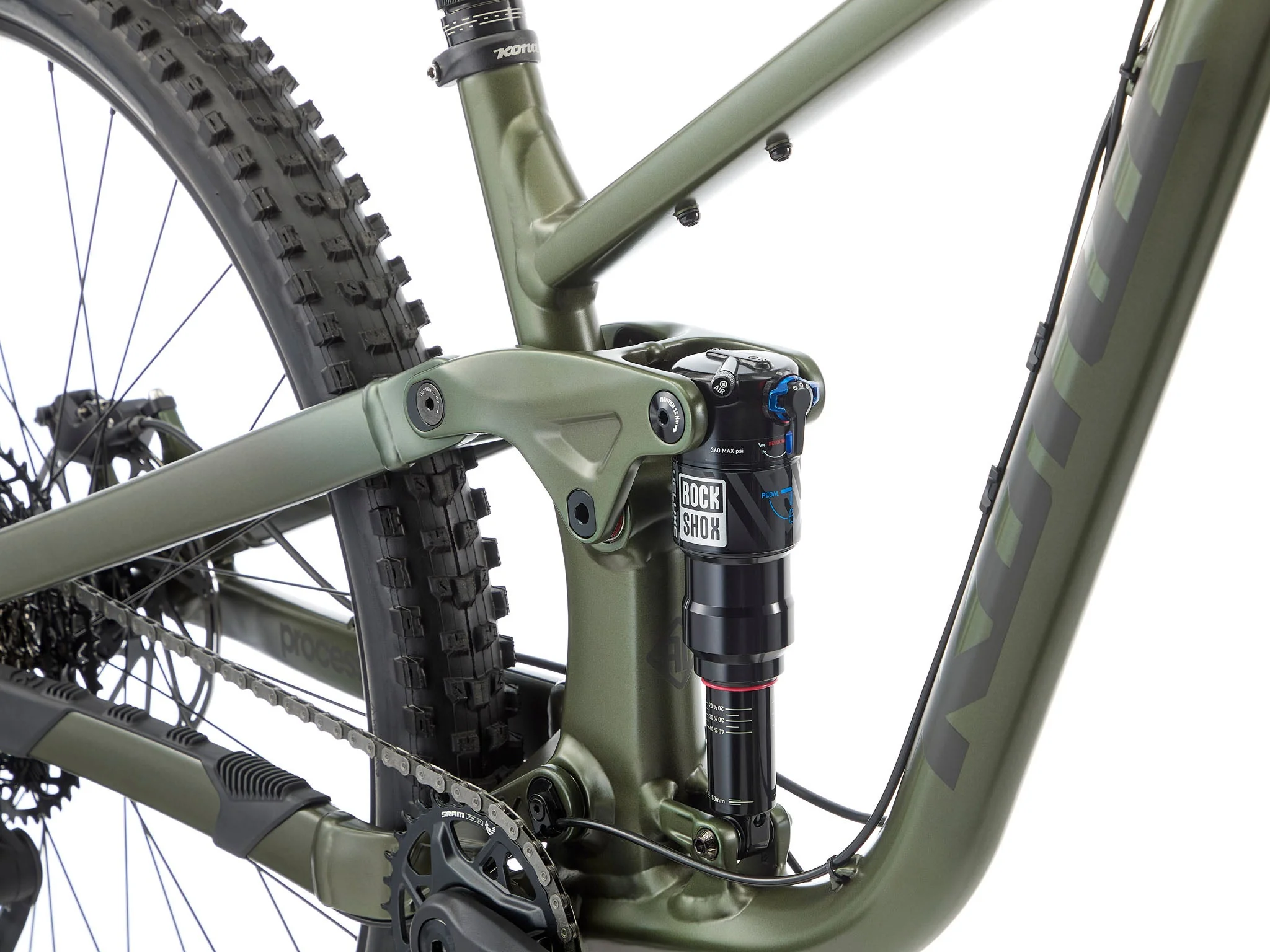

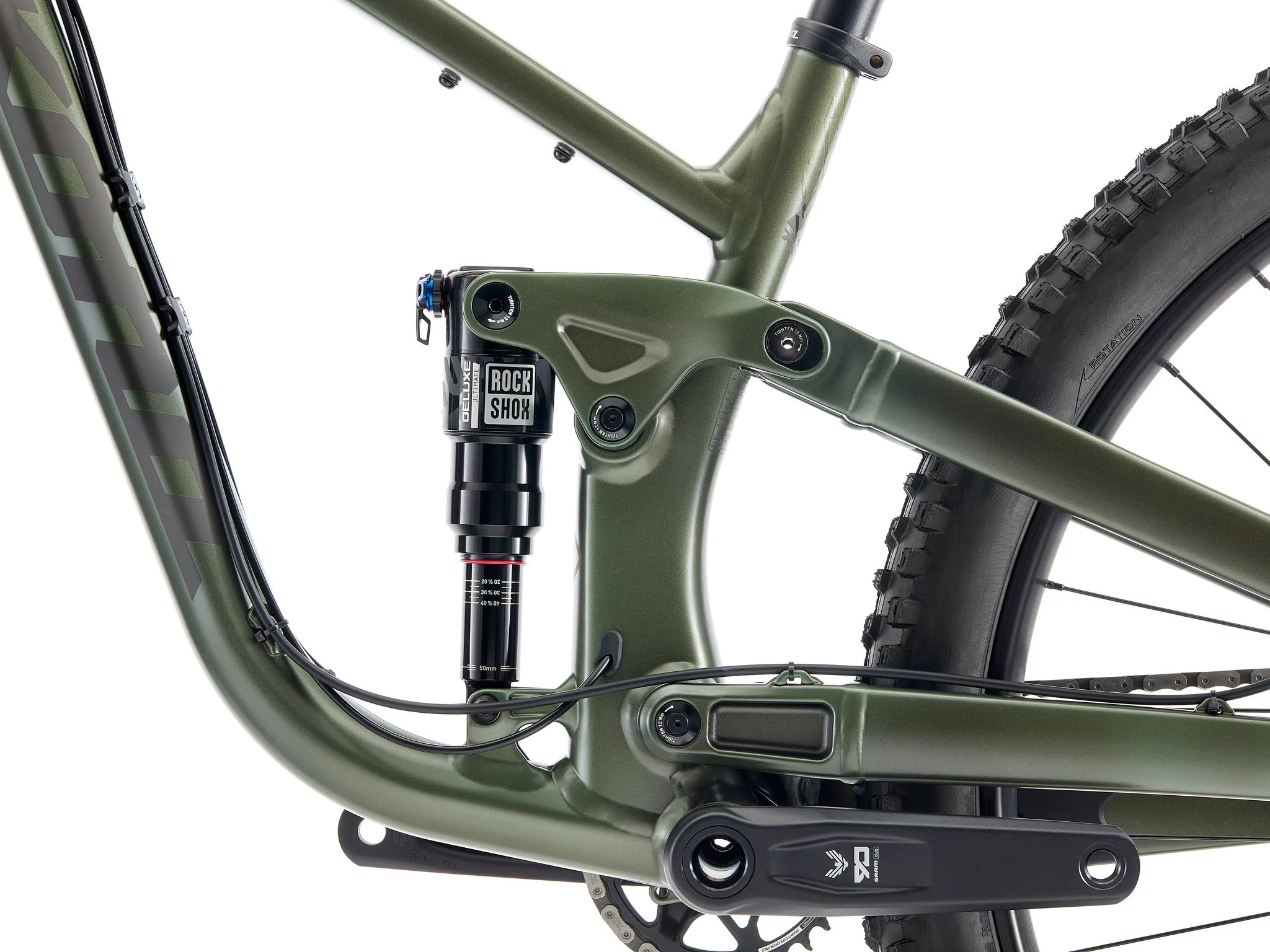

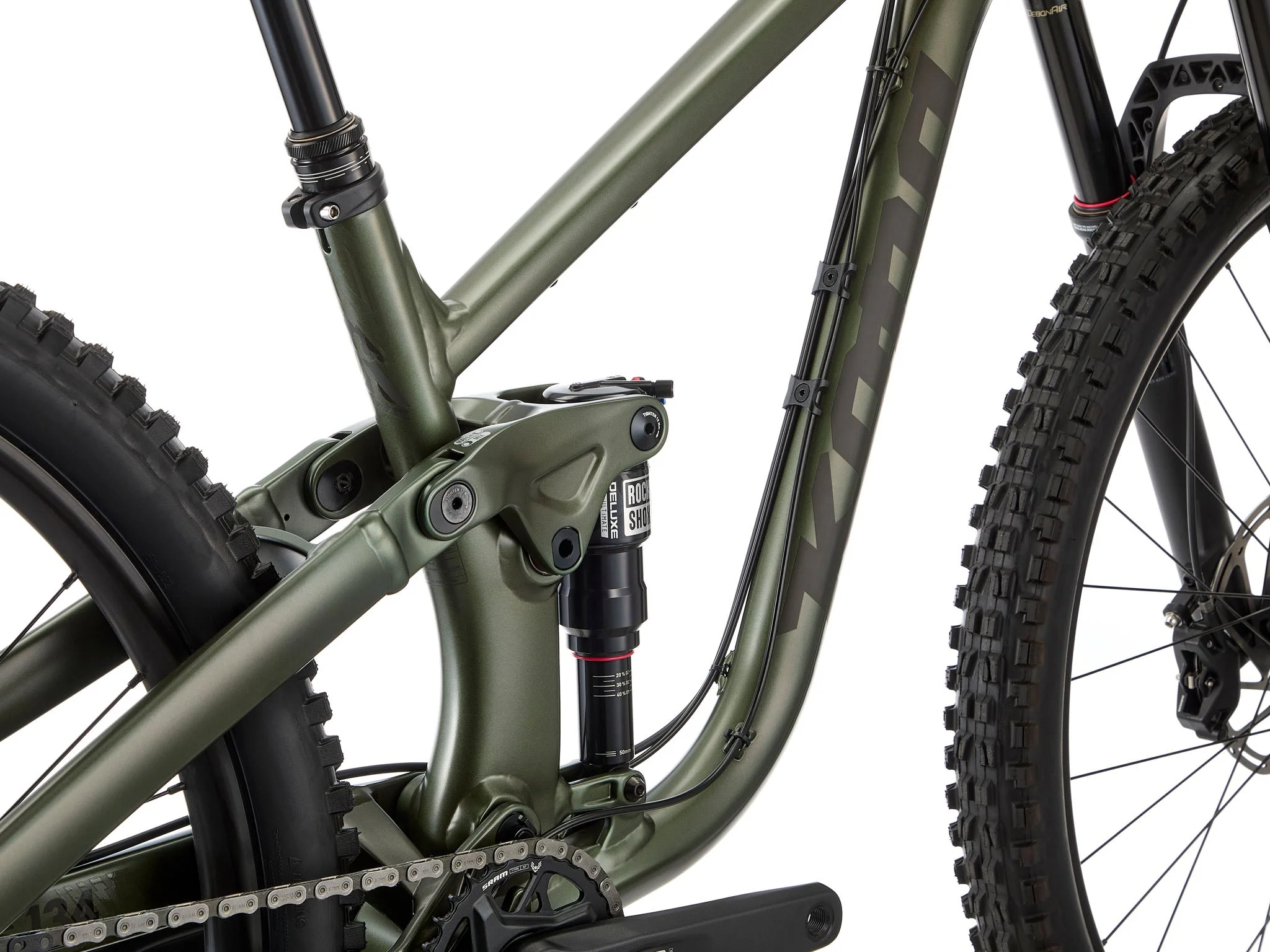

• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Shifters: SRAM Eagle 70 Transmission · Rear derailleur: SRAM Eagle 90 Transmission · Crankset: SRAM Eagle 90 DUB 32t / XS-S 165mm / M-XL 170mm · Bottom bracket: SRAM DUB PF92 MTB WIDE · Cassette: SRAM Eagle 70 10-52t 12spd · Chain: SRAM Eagle 70 T-Type

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Brake Calipers: SRAM Motive Bronze 4-Piston; Front Brake Rotor: SRAM Centerline 200mm 6B; Rear Brake Rotor: SRAM Centerline 180mm 6B; Brake Levers: SRAM Motive Bronze

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Wheel size: 29" · Rims: WTB KOM Team i30 · Hubs: (F) Formula 15x110mm / (R) Formula 12x148mm HG · Front tire: Maxxis Minion DHF 29x2.5" EXO / TR / 3C MaxxTerra (27.5x2.5" size XS) · Rear tire: Maxxis Dissector 29x2.4" WT EXO / TR / 3C Maxx Terra (27.5x2.4" size XS-S)

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance. This record indicates different front and rear wheel diameters, so verify each tire at its correct end.

Archived: Headset: FSA Orbit No.57B ZS44/ZS56 · Handlebar: Kona 35mm / Back 8º / Up 6º / Rise 18mm / Width XS-S 760mm / M 780mm / L-XL 800mm · Stem: Kona 35mm / Rise 0º / Length 40mm · Seatpost: TranzX Dropper +RAD Internal 31.6mm / XS 125mm / S 150mm / M 170mm / L 200mm / XL 230mm · Saddle: WTB Volt Cromoly SL

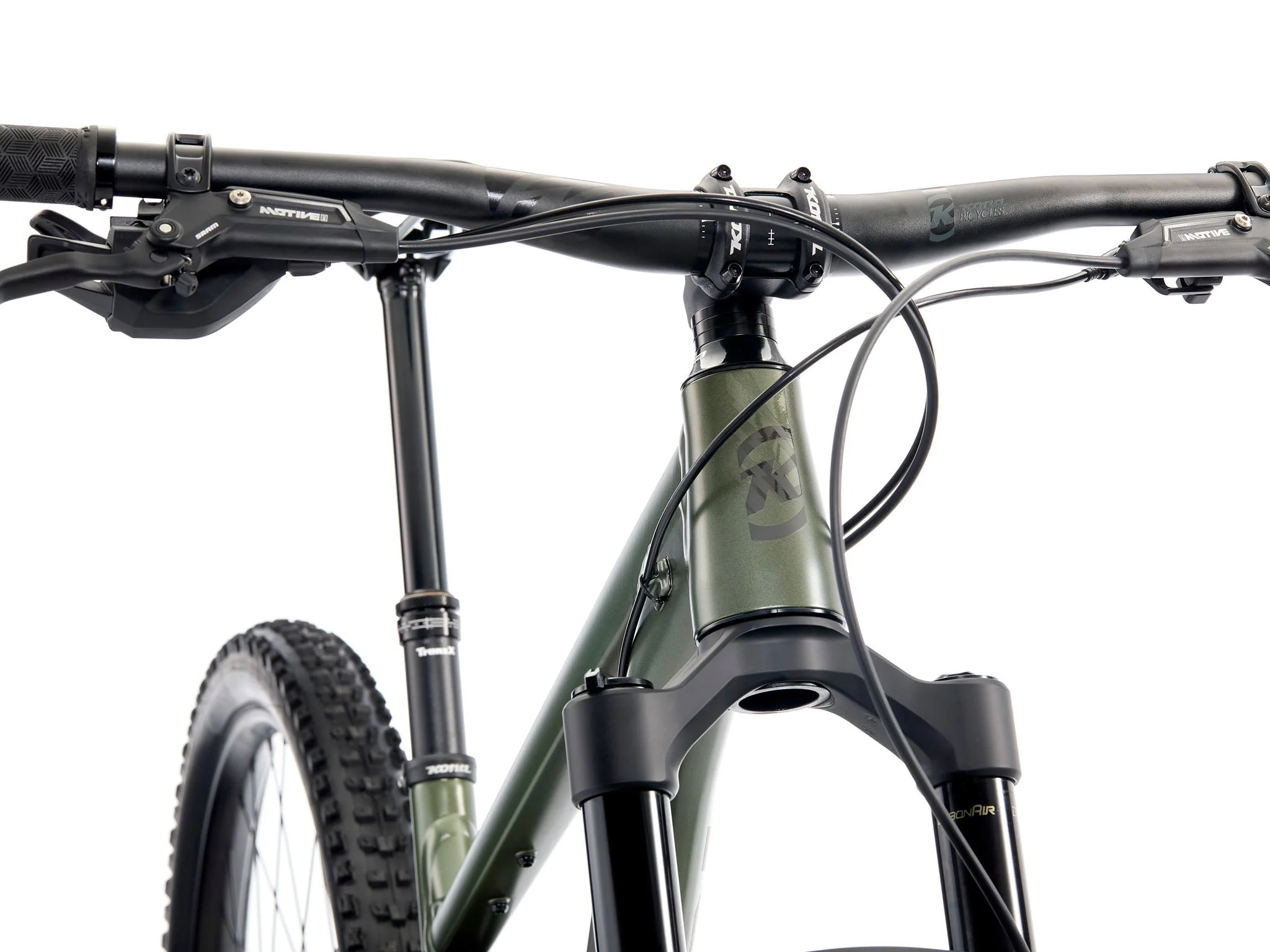

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.
