Ratio2.08:1
Estimated speed At 90 RPM
Gear
Uses front tire 26×2.3; rear size isn’t listed.
Velopedia Bicycle Archive

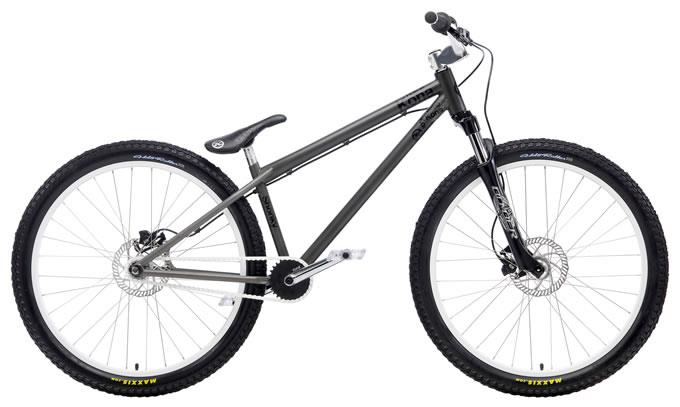

2010 Kona Shonky
Original specifications: Dirt Jump Mix drivetrain · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #20360- Model year
- 2010
- Category
- Mountain
- Original MSRP
- $899.00
- Sizes
- Short, long
- Colors
- Dark Green
- In this record
- 24 specifications · archived image · original MSRP
Model history 6 other years
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Dark Green
- Frame
- Kona Clump Chromoly Butted
- Original equipment
- Dirt Jump Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildKona Clump Chromoly Butted · Dirt Jump Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona Clump Chromoly Butted |
| Fork | Marzocchi Dirt Jumper 3, 80mm travel |
| Fork Material | Single |
Drivetrain
| Component Group | Dirt Jump Mix |
|---|---|
| Crankset | Aricle YR-CR-720 w/Guard, 27 teeth |
| Bottom Bracket | Aricle YR-CR-720 |
| BB Shell Width | 73mm |
| Cassette | Formula Sprocket |
| Rear Cogs | 1-speed, 13 teeth |
| Chain | Yaban MK918N |
| Pedals | Kona Jackshit |
Brakes
| Brakes | Avid BB-5 Mechanical w/ 6" Rotor brakes, Avid FR-5 front/Avid FR- 5 rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA internal ZST-NO-8BE |
|---|---|
| Handlebar | Kona Cowan Signature |
| Handlebar Extensions | Not included |
| Stem | Kona Clump |
| Saddle | Kona DJ |
| Seatpost | Kona Thumb |
Wheels & Tires
| Hubs | Formula disc |
|---|---|
| Rims | Alex DM-24 |
| Spokes | Sandvic stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 2.3" Kenda K-Rad |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
1 1/8" threadless FSA internal ZST-NO-8BE
Alex DM-24
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.3" Kenda K-Rad
- Drivetrain
- 1-speed
- Bottom bracket / shell
- Aricle YR-CR-720 · 73mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Marzocchi Dirt Jumper 3, 80mm travel · Single
Suspension
Evaluate the suspension →Archived: Fork: Marzocchi Dirt Jumper 3, 80mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Dirt Jump Mix · Crankset: Aricle YR-CR-720 w/Guard, 27 teeth · Bottom bracket: Aricle YR-CR-720 · Cassette: Formula Sprocket · Rear cogs: 1-speed, 13 teeth · Chain: Yaban MK918N
Brakes
Inspect the brakes →Archived: Brakes: Avid BB-5 Mechanical w/ 6" Rotor brakes, Avid FR-5 front/Avid FR- 5 rear levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Alex DM-24 · Hubs: Formula disc · Front tire: 26 x 2.3" Kenda K-Rad
Controls and contact points
Archived: Headset: 1 1/8" threadless FSA internal ZST-NO-8BE · Handlebar: Kona Cowan Signature · Stem: Kona Clump · Seatpost: Kona Thumb · Saddle: Kona DJ · Pedals: Kona Jackshit
