Velopedia Bicycle Archive

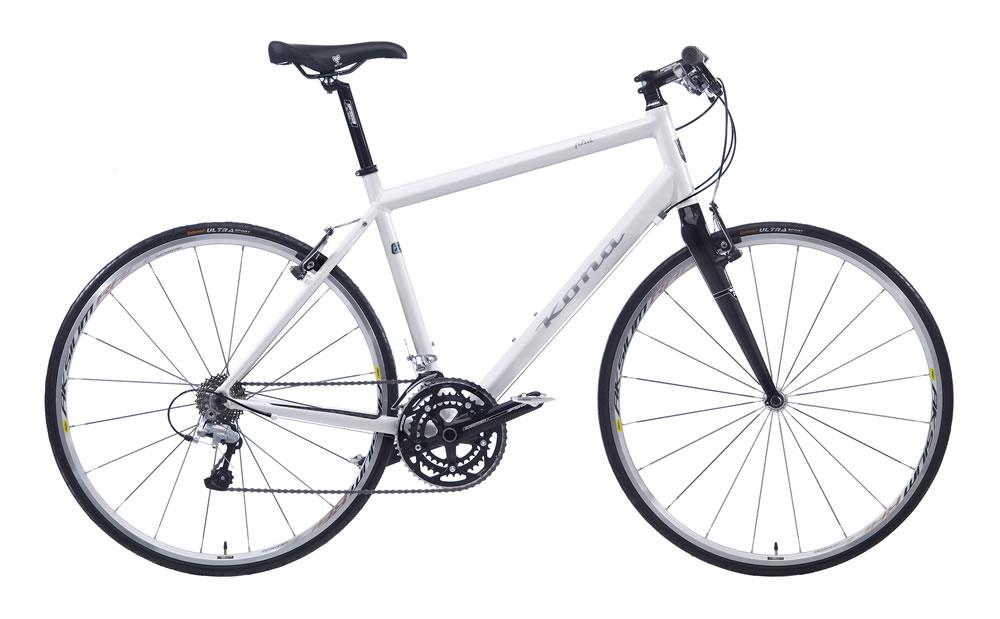

2010 Kona Ph.D
City/commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $1,299.00
- Sizes
- 49cm, 52cm, 54cm, 56cm, 58cm, 60cm
- Colors
- Pearl White
- Archive ID
- 20443
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona 7005 Aluminum Butted |
| Fork | Kona Carbon |
| Fork Material | Carbon, aero crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Commuter Mix |
|---|---|
| Shifters | Shimano |
| Front Derailleur | Shimano, 31.8mm clamp |
| Rear Derailleur | Shimano Ultegra |
| Crankset | FSA Gossamer Triple, 52/39/30 teeth |
| Bottom Bracket | FSA Mega EXO |
| BB Shell Width | 68mm |
| Cassette | Shimano 105 |
| Rear Cogs | 10-speed, 12 - 25 teeth |
| Chain | Shimano 105 |
| Pedals | Shimano A520 Clipless |
Brakes
| Brakes | Avid SD-5 brakes, Avid FR-5 front/Avid FR- 5 rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA Orbit #8BE |
|---|---|
| Handlebar | FSA XC-180 Flat |
| Handlebar Extensions | Not included |
| Stem | FSA OS-150-1 LX |
| Saddle | WTB Rocket V Comp |
| Seatpost | FSA SL-280 |
Wheels & Tires
| Hubs | Mavic Aksium |
|---|---|
| Rims | Mavic Aksium |
| Spokes | Mavic Aksium |
| Front Tire | 700 x 23c Continental Ultra Sport |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
