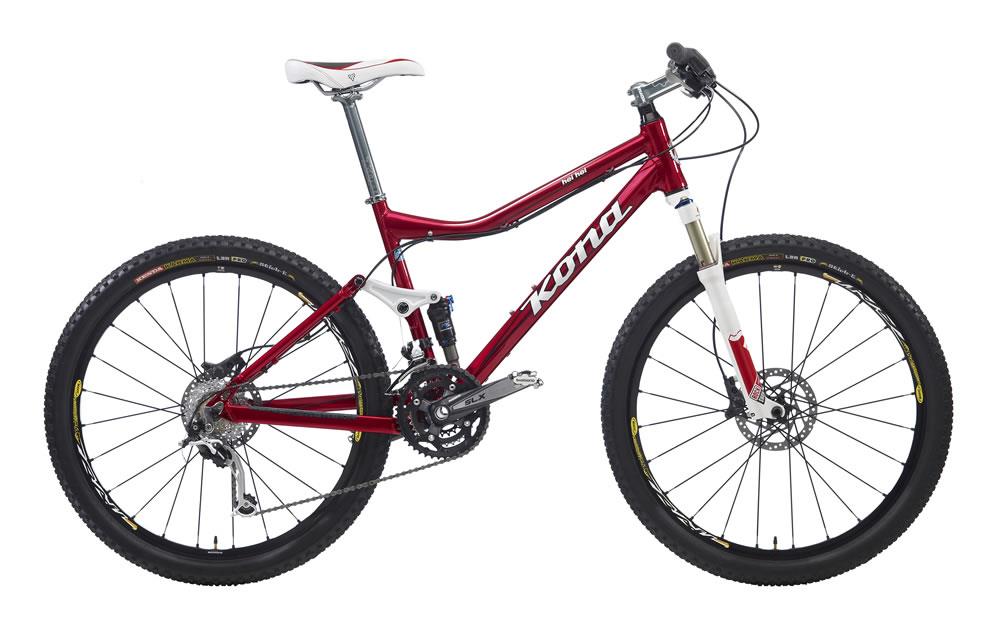

2010 Kona Hei Hei
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $3,699.00
- Sizes
- 14", 16", 17", 18", 19", 20", 22"
- Colors
- Brushed Red
- Archive ID
- 20321
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona Race Light Scandium Butted |
| Fork | RockShox SID Race, 80mm travel |
| Fork Material | Magnesium/aluminum, single crown |
| Rear Shock | Fox Float RP23, 2.5" travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano XT |
| Front Derailleur | Shimano XT, 31.8mm clamp |
| Rear Derailleur | Shimano XT Shadow |
| Crankset | Shimano SLX, 44/32/22 teeth |
| Bottom Bracket | Shimano SLX |
| BB Shell Width | 73mm |
| Cassette | Shimano HG80 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano Deore |
| Pedals | Shimano M520 |
Brakes
| Brakes | Shimano SLX Hydraulic Disc w/ 6" Rotor brakes, Shimano SLX Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA Orbit DL |
|---|---|
| Handlebar | Kona XC/BC Deluxe riser |
| Handlebar Extensions | Not included |
| Stem | Kona XC/BC Deluxe |
| Saddle | WTB Rocket V SLT |
| Seatpost | Kona XC/BC Deluxe |
Wheels & Tires
| Hubs | Mavic CrossTrail |
|---|---|
| Rims | Mavic CrossTrail |
| Spokes | Mavic Crosstrail |
| Front Tire | 26 x 2.10" Kenda Karma Kevlar |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
