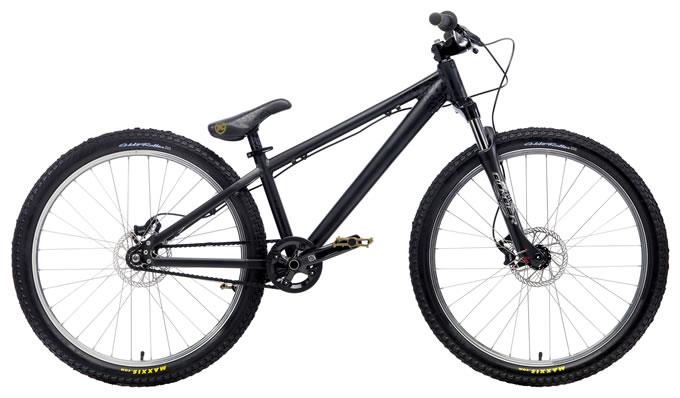

2010 Kona Cowan

Archived: Frame: TIG-welded · Fork: Marzocchi Dirt Jumper 1 w/20mm axle, 80mm travel · Single

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Archived: Fork: Marzocchi Dirt Jumper 1 w/20mm axle, 80mm travel

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Group: Dirt Jump Mix · Front derailleur: E.Thirteen TRC · Crankset: FSA Moto FR, 32 teeth · Bottom bracket: FSA Mega EXO · Cassette: Cassette driver · Rear cogs: 1-speed, 13 teeth · Chain: Yaban MK918N

• Check chain tension and chainline, rotate the drivetrain through a full revolution and confirm the rear axle or tensioning hardware cannot slip.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano M575 Hydraulic Disc w/ 6" Rotor brakes, Shimano M575 Hydraulic levers

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.

Archived: Wheel size: 26" wheels · Rims: Sun EQ 2.9SL · Hubs: Formula disc · Front tire: 26 x 2.3" Kenda K-Rad

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: 1 1/8" threadless FSA internal ZST-10 · Handlebar: Kona Cowan Signature · Stem: Kona Clump · Seatpost: Kona XC/BC · Saddle: WTB Jaxon V · Pedals: Kona Wah-Wah

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
