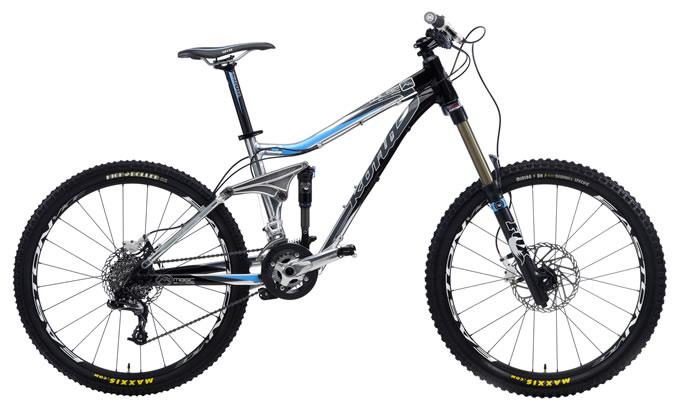

2010 Kona Coilair
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $2,999.00
- Sizes
- 15", 17", 18", 19", 20"
- Colors
- Matte Dark Blue/Fox Titanium
- Archive ID
- 20341
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona Clump 7005 Aluminum |
| Fork | Fox 36 Float R, 160mm travel |
| Fork Material | Single |
| Rear Shock | Fox Float RP23, 200mm travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore |
| Front Derailleur | Shimano Deore |
| Rear Derailleur | Shimano SLX |
| Crankset | FSA Moto FR w/Guard, 36/24 teeth |
| Bottom Bracket | FSA Moto Integrated |
| Cassette | Shimano HG50 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano Deore |
| Pedals | Shimano M505 |
Brakes
| Brakes | Shimano M575 Hydraulic Disc w/7" Rotor brakes, Shimano M575 Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" - 1 1/2" FSA Gravity SX |
|---|---|
| Handlebar | Kona BC/OB riser |
| Handlebar Extensions | Not included |
| Stem | Kona XC/BC |
| Saddle | WTB Pure V Comp |
| Seatpost | Kona XC/BC |
Wheels & Tires
| Hubs | Front: Formula disc, Rear: Shimano M525 disc |
|---|---|
| Rims | Sun EQ 2.9SL |
| Spokes | Sandvic stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 2.5" Kenda Nevegal |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
