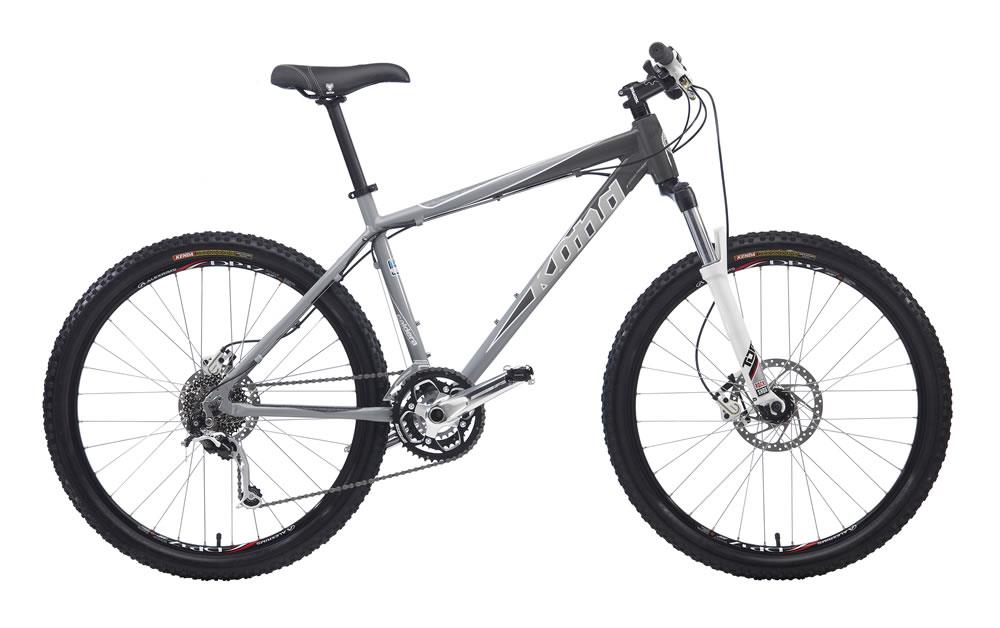

2010 Kona Caldera
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,149.00
- Sizes
- 14", 16", 17", 18", 19", 20", 22"
- Colors
- Light Grey/Dark grey
- Archive ID
- 20311
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona All Mountain Butted Aluminum |
| Fork | RockShox Tora SL Solo, 100mm travel |
| Fork Material | Magnesium/aluminum/steel, single crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore |
| Front Derailleur | Shimano Deore, 31.8mm clamp |
| Rear Derailleur | Shimano XT Shadow |
| Crankset | FSA Comet, 44/32/22 teeth |
| Bottom Bracket | FSA Mega EXO |
| BB Shell Width | 73mm |
| Cassette | Shimano HG50 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | KMC HG53 |
| Pedals | Shimano M505 |
Brakes
| Brakes | Shimano M575 Hydraulic Disc w/7" Rotor front/Shimano M575 Hydraulic Disc w/6" Rotor rear brakes, Shimano M575 Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless TH |
|---|---|
| Handlebar | Kona XC/BC Riser |
| Handlebar Extensions | Not included |
| Stem | Kona XC/BC |
| Saddle | WTB Rocket V Comp |
| Seatpost | Kona XC/BC |
Wheels & Tires
| Hubs | Front: Formula disc, Rear: Shimano M475 disc |
|---|---|
| Rims | Alex DP-17 |
| Spokes | Sandvic stainless, 15ga front/14ga rear |
| Front Tire | 26 x 2.10" Kenda Komodo |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
