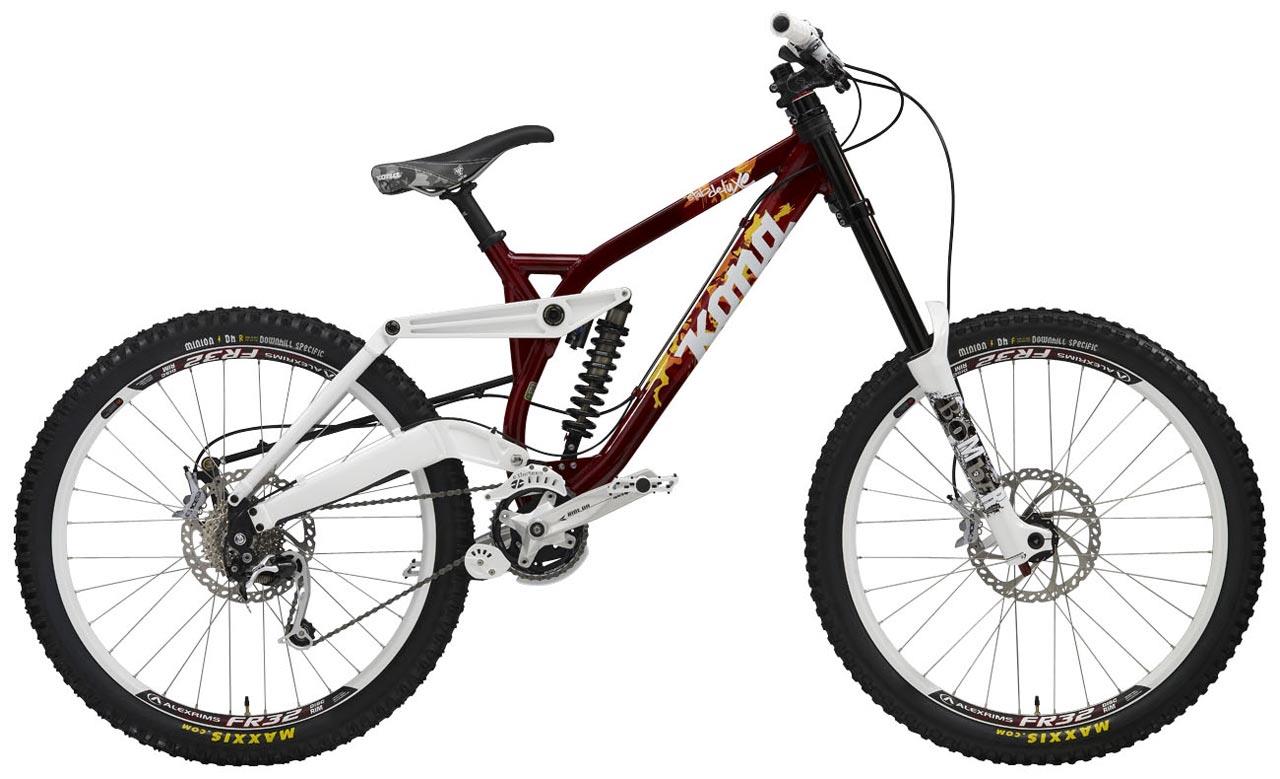

2009 Kona Stab Deluxe

Archived: Frame: TIG-welded · Fork: Marzocchi 888 RCV, 200mm travel · Dual

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Archived: Fork: Marzocchi 888 RCV, 200mm travel · Rear shock: Fox Van R, 8" travel

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Group: Downhill Mix · Shifters: Shimano Deore · Front derailleur: E.Thirteen SRS ST, chain retention device · Rear derailleur: Shimano Deore · Crankset: Race Face Ride DH, 36 teeth · Bottom bracket: Race Face X-Type · Cassette: Shimano Deore · Rear cogs: 9-speed, 11 - 32 teeth · Chain: Shimano Deore

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Hayes Stroker Ace w/203mm rotor brakes, Hayes Stroker Ace levers

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Wheel size: 26" wheels · Rims: Alex FR 32 · Hubs: Front: Formula DH 20mm, Rear: Sun Ringle Demon 150 x 12mm · Front tire: 26 x 2.50" Maxxis Minion

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: 1 1/8" TH · Handlebar: Kona OB Riser · Stem: Kona OB · Seatpost: Kona OB · Saddle: WTB Pure V Race · Pedals: Kona Jackshit

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
