Lowest1.20:1
Highest4.17:1
Total range347%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×35; rear size isn’t listed.
Velopedia Bicycle Archive

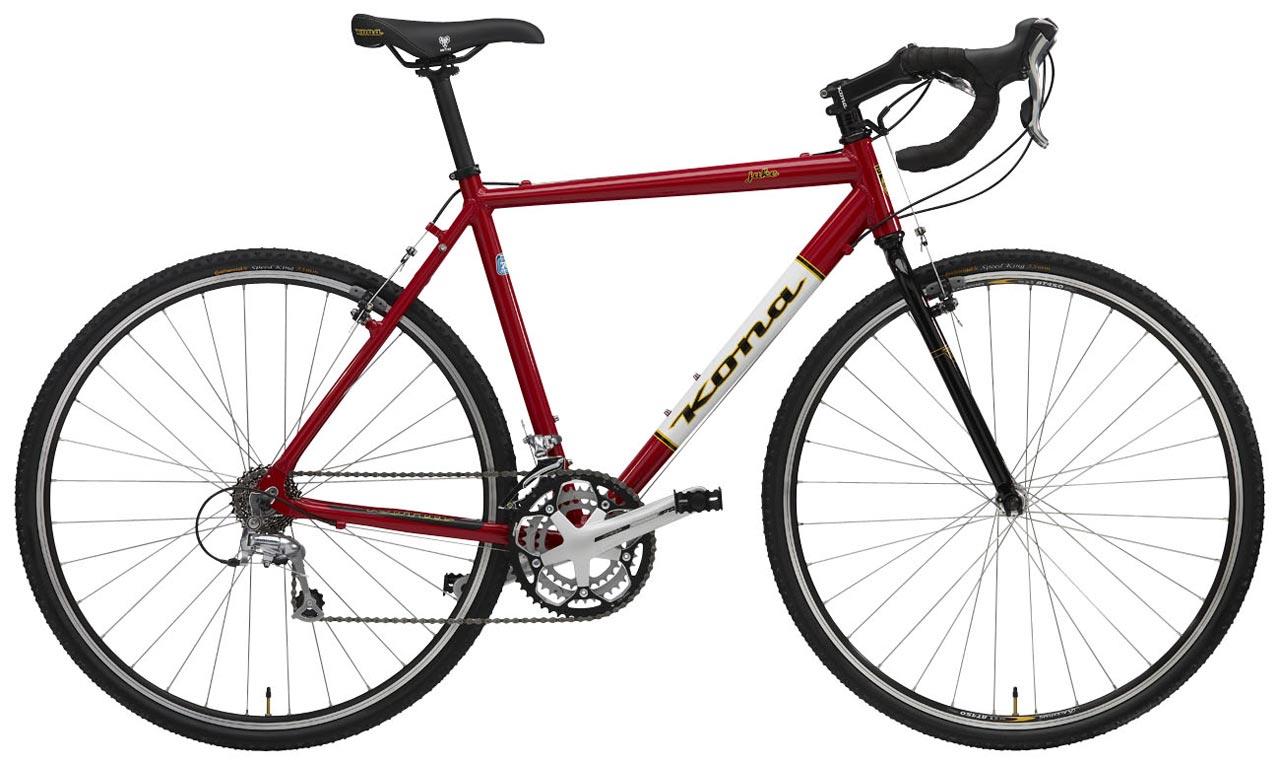

2009 Kona Jake
Original specifications: Shimano Tiagra · 9-speed rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #17251- Model year
- 2009
- Category
- Gravel & Cyclocross
- Original MSRP
- $899.00
- Sizes
- 47cm, 49cm, 52cm, 54cm, 56cm, 58cm, 60cm, 62cm
- Colors
- Red
- In this record
- 27 specifications · archived image · original MSRP
Model history 11 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Red
- Frame
- Kona Race Light 7005 Aluminum Butted
- Original equipment
- Cyclocross Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildKona Race Light 7005 Aluminum Butted · Cyclocross Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona Race Light 7005 Aluminum Butted |
| Fork | Kona P2 700c |
| Fork Material | Unicrown |
Drivetrain
| Component Group | Cyclocross Mix |
|---|---|
| Shifters | Shimano Tiagra STI |
| Front Derailleur | Shimano Tiagra |
| Rear Derailleur | Shimano Tiagra |
| Crankset | FSA Omega, 30/39/50 teeth |
| Bottom Bracket | FSA Mega EXO |
| BB Shell Width | 68mm |
| Cassette | Shimano |
| Rear Cogs | 9-speed, 12 - 25 teeth |
| Chain | KMC HG53 |
| Pedals | Wellgo LU-A9 |
Brakes
| Brakes | Kore Sport brakes, Shimano Tiagra STI w/Tektro bar top levers levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" TH |
|---|---|
| Handlebar | Kona RD |
| Handlebar Extensions | Not included |
| Stem | Kona RD |
| Saddle | WTB Rocket V Como |
| Seatpost | Kona RD |
Wheels & Tires
| Hubs | Front: Formula, Rear: Shimano Tiagra |
|---|---|
| Rims | Alex AT450 |
| Spokes | Sandvic stainless, 15ga front/14ga rear |
| Front Tire | 700 x 35c Continental Speed King CX |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 35c Continental Speed King CX
Retailer offers
Vittoria Randonneur Reflect Tire Black, 700x35
700x35c
Replacement option
Other replacement options (1)
Challenge Strada Pro Tubeless Tire Black, 700x35
700x35c
Replacement option
Continental Speed King CX on eBaySponsored links
KMC HG53
FSA Mega EXO
More parts (7)Fewer parts
Wellgo LU-A9
WTB Rocket V Como
FSA Omega
30/39/50 teeth
Shimano Tiagra
Shimano Tiagra
Shimano Tiagra STI
Alex AT450
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 35c Continental Speed King CX
- Drivetrain
- 9-speed
- Bottom bracket / shell
- FSA Mega EXO · 68mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Kona P2 700c · Unicrown
Drivetrain
Check drivetrain wear →Archived: Group: Cyclocross Mix · Shifters: Shimano Tiagra STI · Front derailleur: Shimano Tiagra · Rear derailleur: Shimano Tiagra · Crankset: FSA Omega, 30/39/50 teeth · Bottom bracket: FSA Mega EXO · Cassette: Shimano · Rear cogs: 9-speed, 12 - 25 teeth · Chain: KMC HG53
Brakes
Inspect the brakes →Archived: Brakes: Kore Sport brakes, Shimano Tiagra STI w/Tektro bar top levers levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Alex AT450 · Hubs: Front: Formula, Rear: Shimano Tiagra · Front tire: 700 x 35c Continental Speed King CX
Controls and contact points
Archived: Headset: 1 1/8" TH · Handlebar: Kona RD · Stem: Kona RD · Seatpost: Kona RD · Saddle: WTB Rocket V Como · Pedals: Wellgo LU-A9
