Lowest0.69:1
Highest4.00:1
Total range582%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.35; rear size isn’t listed.
Velopedia Bicycle Archive

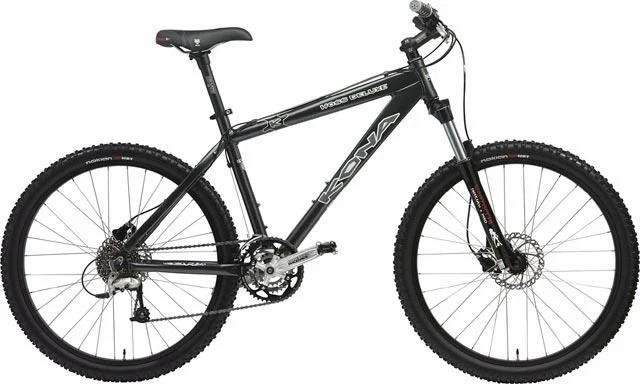

2007 Kona Hoss Deluxe
Original specifications: Shimano Deore drivetrain · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #95249- Model year
- 2007
- Category
- Mountain
- Original MSRP
- $1,149.00
- Sizes
- 16", 18", 20", 22"
- Colors
- Brown
- In this record
- 24 specifications · archived image · original MSRP
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2007 archived details
- Published colors
- Brown
- Frame
- Kona Clump 7005 Butted Aluminum
- Original equipment
- Shimano Deore
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildKona Clump 7005 Butted Aluminum · Shimano Deore · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona Clump 7005 Butted Aluminum |
| Fork | Marzocchi Dirt Jumper 3, 100mm travel |
| Fork Material | Single |
Drivetrain
| Component Group | Shimano Deore |
|---|---|
| Shifters | Shimano Deore |
| Front Derailleur | Shimano Deore |
| Rear Derailleur | Shimano Deore XT |
| Crankset | Race Face Ride X-Type, 44/32/22 teeth |
| Bottom Bracket | Race Face Ride X-Type |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano CN-HG53, 1/2 x 3/32" |
| Pedals | Shimano PD-M505 |
Brakes
| Brakes | Hayes HFX-9 XC brakes, Hayes HFX-9 XC levers |
|---|
Cockpit & Contact Points
| Headset | Th |
|---|---|
| Handlebar | FSA XC-280A OS |
| Stem | FSA OS-190LX |
| Saddle | WTB Speed V Comp |
| Seatpost | FSA FR-270 |
Wheels & Tires
| Hubs | Front: KK Disc, Rear: Shimano FH-M475 disc |
|---|---|
| Rims | Sun Ditch Witch |
| Spokes | DT Swiss stainless steel, 14ga. (2.0mm) |
| Front Tire | 26 x 2.35" Maxxis High Roller |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Race Face Ride X-Type
More parts (9)Fewer parts
Shimano PD-M505
WTB Speed V Comp
Race Face Ride X-Type
44/32/22 teeth
Shimano Deore
Shimano Deore XT
Shimano Deore
FSA XC-280A OS
FSA OS-190LX
FSA FR-270
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.35" Maxxis High Roller
- Drivetrain
- 9-speed
- Bottom bracket / shell
- Race Face Ride X-Type
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Marzocchi Dirt Jumper 3, 100mm travel · Single
Suspension
Evaluate the suspension →Archived: Fork: Marzocchi Dirt Jumper 3, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Deore · Shifters: Shimano Deore · Front derailleur: Shimano Deore · Rear derailleur: Shimano Deore XT · Crankset: Race Face Ride X-Type, 44/32/22 teeth · Bottom bracket: Race Face Ride X-Type · Rear cogs: 9-speed, 11 - 32 teeth · Chain: Shimano CN-HG53, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Hayes HFX-9 XC brakes, Hayes HFX-9 XC levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Sun Ditch Witch · Hubs: Front: KK Disc, Rear: Shimano FH-M475 disc · Front tire: 26 x 2.35" Maxxis High Roller
Controls and contact points
Archived: Headset: TH · Handlebar: FSA XC-280A OS · Stem: FSA OS-190LX · Seatpost: FSA FR-270 · Saddle: WTB Speed V Comp · Pedals: Shimano PD-M505
