Lowest0.69:1
Highest4.00:1
Total range582%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.1; rear size isn’t listed.
Velopedia Bicycle Archive
2004 Kona Hoss
Original specifications: Shimano Deore · 9-speed · mechanical rear derailleur · 26" wheels · 30.4 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #30731- Model year
- 2004
- Category
- Mountain
- Original MSRP
- $799.00
- Sizes
- 16", 18", 20", 22"
- Colors
- Silver
- Weight
- 30.4 lb
- In this record
- 26 specifications · archived image · original MSRP

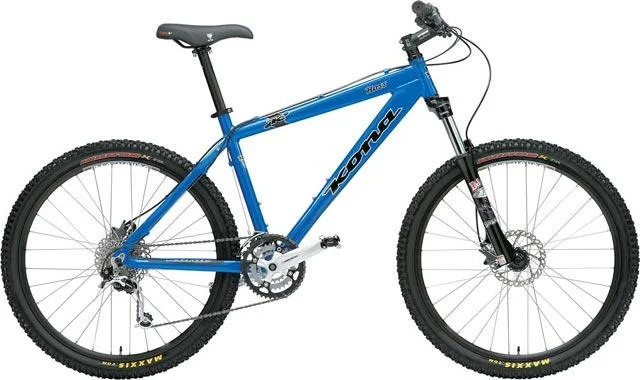

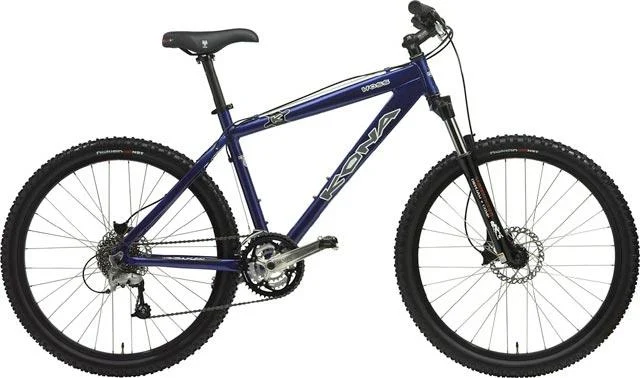

Model history 5 other years
Browse other years
Compare side by side
Identification clues
2004 archived details
- Published colors
- Silver
- Frame
- 7005 aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build7005 aluminum · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum |
| Fork | Marzocchi MZ Comp, 100mm travel |
| Fork Material | Aluminum/magnesium, single crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore RapidFire |
| Front Derailleur | Shimano Deore, top-pull/clamp-on |
| Rear Derailleur | Shimano Deore |
| Crankset | TruVativ Five D, 22/32/44 teeth |
| Bottom Bracket | TruVativ ISIS Drive Hussefelt |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano CN-HG53, 1/2 x 3/32" |
| Pedals | Shimano PD-M505 SPD |
Brakes
| Brakes | Shimano BR-M475 Mechanical Disc brakes, Avid FR-1 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Victor VP-A71 |
|---|---|
| Handlebar | Koski Riser |
| Handlebar Extensions | Not included |
| Stem | Koski Stronghold |
| Saddle | SDG-Kona Grand Prix |
| Seatpost | Kona Double Thumb |
Wheels & Tires
| Hubs | Front: Shimano HB-M475 Disc, Rear: Shimano FH-M475 disc |
|---|---|
| Rims | Alex AL-DM24, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.10" Tioga Factory DH |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
26 x 2.10" Tioga Factory DH
Replacement search: 26x2.1 bicycle tire Before ordering: Check rim type and tire clearance.
Shimano BR-M475 Mechanical Disc brakes
Avid FR-1 levers
More parts (5)Fewer parts
Shimano PD-M505 SPD
SDG-Kona Grand Prix
Shimano Deore
Shimano Deore RapidFire
Alex AL-DM24
32-hole
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.10" Tioga Factory DH
- Drivetrain
- 9-speed
- Bottom bracket / shell
- TruVativ ISIS Drive Hussefelt
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Marzocchi MZ Comp, 100mm travel · Aluminum/magnesium, single crown
Suspension
Evaluate the suspension →Archived: Fork: Marzocchi MZ Comp, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Deore RapidFire · Front derailleur: Shimano Deore, top-pull/clamp-on · Rear derailleur: Shimano Deore · Crankset: TruVativ Five D, 22/32/44 teeth · Bottom bracket: TruVativ ISIS Drive Hussefelt · Rear cogs: 9-speed, 11 - 32 teeth · Chain: Shimano CN-HG53, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Shimano BR-M475 Mechanical Disc brakes, Avid FR-1 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Alex AL-DM24, 32-hole · Hubs: Front: Shimano HB-M475 Disc, Rear: Shimano FH-M475 disc · Front tire: 26 x 2.10" Tioga Factory DH
Controls and contact points
Archived: Headset: 1 1/8" threadless Victor VP-A71 · Handlebar: Koski Riser · Stem: Koski Stronghold · Seatpost: Kona Double Thumb · Saddle: SDG-Kona Grand Prix · Pedals: Shimano PD-M505 SPD
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
