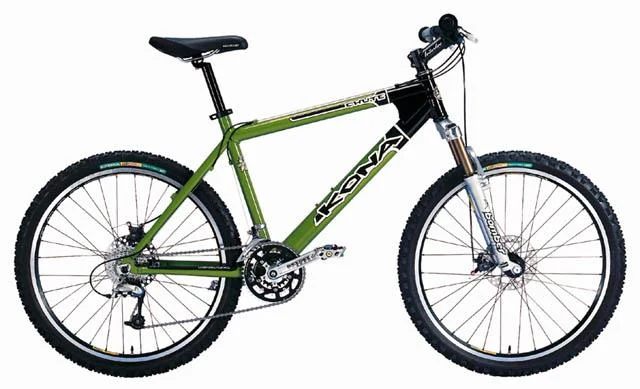

2000 Kona Chute

Archived: Frame: TIG-welded · Fork: Marzocchi Bomber Z-3 QR 20 · Aluminum, triple-clamp crown

• Inspect the complete frame for cracks, dents, distortion, heavy abrasion, suspicious paint differences or evidence of a previous repair.

Archived: Fork: Marzocchi Bomber Z-3 QR 20

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Group: Mountain Mix · Shifters: Shimano Deore LX RapidFire SL · Front derailleur: Shimano Deore LX · Rear derailleur: Shimano Deore XT SGS · Crankset: Race Face Turbine LP, 22/32/44 teeth · Bottom bracket: Shimano BB-UN52 · Rear cogs: 9-speed, 11 - 32 teeth · Chain: Shimano CN-HG72, 1/2 x 3/32"

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Formula Mechanical disc brakes, Avid SD-1.9 L levers

• Check both cables and housings for corrosion, fraying or drag. Confirm each caliper releases cleanly, then inspect pad thickness, rotor wear and rotor alignment.

Archived: Wheel size: 26" wheels · Rims: WTB Laser Beam Disc · Hubs: Front: King Kong KD-H2 QR20, Rear: Shimano Deore XT Disc · Front tire: 26 x 2.00" Hutchinson Alligator

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: Aheadset SX · Handlebar: Kona A3 DH · Stem: IRD Enduro · Seatpost: Kona O-Beam · Saddle: SDG Grand Prix · Pedals: Fasten Slalom

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
