Velopedia Bicycle Archive

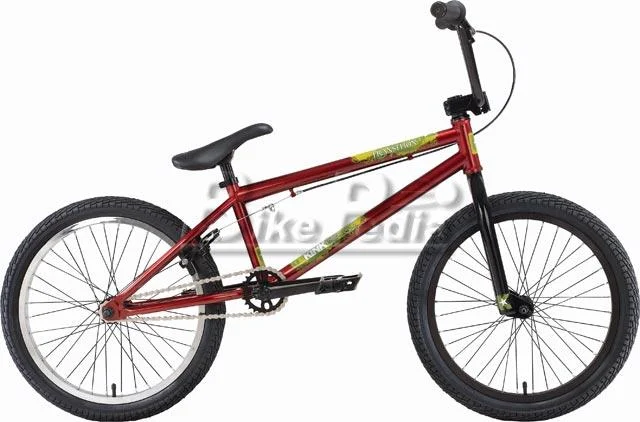

2010 Kink Transition
BMX bicycle from the Velopedia historical specification archive.
- Original MSRP
- $0.00
- Sizes
- One size fits all
- Colors
- Matte Silver, Trans Red
- Weight
- 26.5
- Archive ID
- 19292
Image not yet recovered
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly |
| Fork | Kink |
| Fork Material | Chromoly, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | N/A |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | 3-piece chromoly 175mm, Kink Alloy Decimal 25t teeth |
| Bottom Bracket | Sealed Bearing Mid BB |
| Cassette | Cog |
| Rear Cogs | 1-speed, 9 teeth |
| Chain | KMC 510HX, 1/2 x 1/8" |
| Pedals | Wellgo Alloy Platform |
Brakes
| Brakes | Tektro 990 rear brakes, Unspecified rear levers |
|---|
Cockpit & Contact Points
| Headset | Sealed Integrated |
|---|---|
| Handlebar | Kink Chromoly 8" Uptown |
| Handlebar Extensions | Not included |
| Stem | Alloy front load |
| Saddle | Kink Pivotal Embossed Slim |
| Seatpost | Kink Pivotal Stump, 25.4mm diameter |
Wheels & Tires
| Hubs | Front: Sealed 10mm axle, Rear: Sealed 14mm cassette |
|---|---|
| Rims | Alienation Black Sheep |
| Front Tire | Front: 20 x 2.25" Kenda K1041, Rear: 20 x 1.95 Kenda Kontact |
| Wheel Size | 20" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
