Velopedia Bicycle Archive

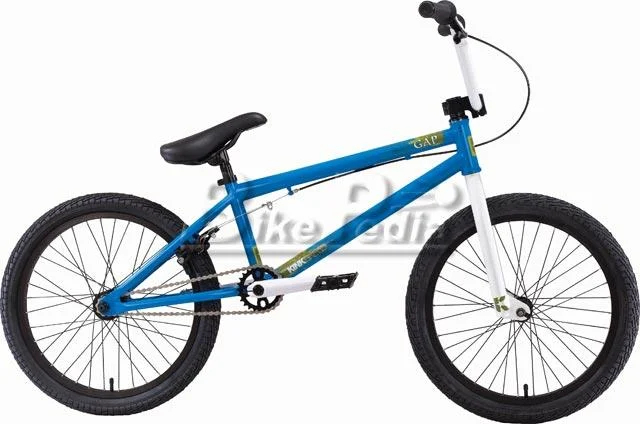

2010 Kink Gap
BMX bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- One size fits all
- Colors
- Dusk Blue, Purple
- Weight
- 26.4
- Archive ID
- 19296
Image not yet recovered
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly HT/DT/TT |
| Fork | Kink |
| Fork Material | Chromoly, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | N/A |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | 3-piece chromoly 175mm, Kink Decimal 25t teeth |
| Bottom Bracket | Sealed Bearing Mid BB |
| Cassette | Cog |
| Rear Cogs | 1-speed, 9 teeth |
| Chain | KMC Z410, 1/2 x 1/8" |
| Pedals | Alloy Platform |
Brakes
| Brakes | Tektro 990 U-Brake rear brakes, Unspecified rear levers |
|---|
Cockpit & Contact Points
| Headset | Sealed Integrated |
|---|---|
| Handlebar | Kink Chromoly 7.75" Midtown |
| Handlebar Extensions | Not included |
| Stem | Alloy front load |
| Saddle | Kink Signal Slim |
| Seatpost | Straight with Guts |
Wheels & Tires
| Hubs | Front: 10mm axle, Rear: Sealed 14mm cassette |
|---|---|
| Rims | Alienation PBR |
| Front Tire | Front: 20 x 2.25" Kenda Kontact, Rear: 20 x 1.95 Kenda Kontact |
| Wheel Size | 20" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
