Lowest0.65:1
Highest3.82:1
Total range590%
Velopedia Bicycle Archive
At a glance
Archive #9240261- Model year
- 2013
- Category
- Mountain
- Sizes
- 15", 17"
- Colors
- Racing Blue, White
- In this record
- 18 specifications · 2 archived images
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2013 archived details
- Published colors
- Racing Blue, White
- Frame
- 6061 Aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build6061 Aluminum
Frameset
| Frame Material | 6061 Aluminum |
|---|---|
| Fork | Spinner 300LC 100mm |
Drivetrain
| Shifters | Mircoshift |
|---|---|
| Front Derailleur | Shimano Altus |
| Rear Derailleur | Shimano Altus |
| Crankset | SR Suntour XCT 42/32/22t |
| Bottom Bracket | Sealed Cartridge |
| Cassette | Shimano HG31 11x34t |
| Rear Cogs | 3x8 Speeds |
| Chain | KMC Z8 |
| Pedals | Platform |
Brakes
| Brakes | Bengal Mechanical |
|---|
Cockpit & Contact Points
| Headset | Fsa |
|---|---|
| Handlebar | Alloy Riser Bar |
| Stem | Alloy |
| Saddle | KHS Sport |
| Seatpost | Alloy Micro Adjust |
Wheels & Tires
| Front Tire | KHS 26x1.95 |
|---|
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
KMC Z8
Retailer offers
SRAM PC-830 Chain One Color, 8 Speed
Replacement option
Shimano HG31 11x34t
KHS 26x1.95
Replacement search: 26x1.95 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (2)Fewer parts
Shimano Altus
Shimano Altus
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- KHS 26x1.95
- Bottom bracket / shell
- Sealed Cartridge
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: 6061 Aluminum · Fork: Spinner 300LC 100mm
Suspension
Evaluate the suspension →Archived: Fork: Spinner 300LC 100mm
Drivetrain
Check drivetrain wear →Archived: Shifters: Mircoshift · Front derailleur: Shimano Altus · Rear derailleur: Shimano Altus · Crankset: SR Suntour XCT 42/32/22t · Bottom bracket: Sealed Cartridge · Cassette: Shimano HG31 11x34t · Rear cogs: 3x8 Speeds · Chain: KMC Z8
Brakes
Inspect the brakes →Archived: Brakes: Bengal Mechanical
Controls and contact points
Archived: Headset: FSA · Handlebar: Alloy Riser Bar · Stem: Alloy · Seatpost: Alloy Micro Adjust · Saddle: KHS Sport · Pedals: Platform
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

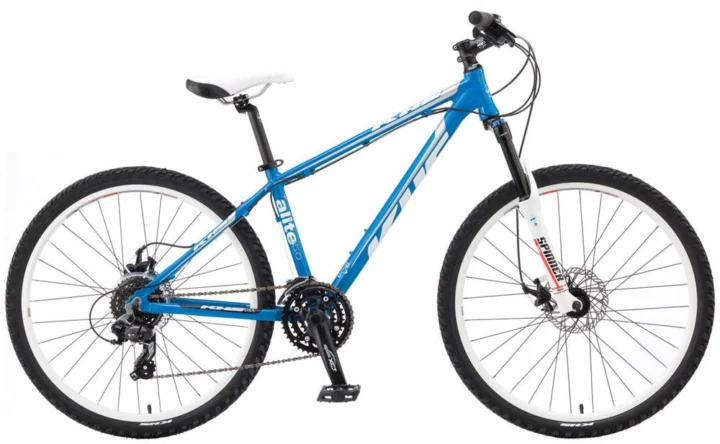

Gallery2 images
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
