Lowest0.65:1
Highest4.00:1
Total range618%
Velopedia Bicycle Archive
At a glance
Archive #2025614- Model year
- 2012
- Category
- Mountain
- Sizes
- L, XL
- Colors
- Pete Moss Green
- In this record
- 18 specifications · 2 archived images
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2012 archived details
- Published colors
- Pete Moss Green
- Frame
- Super Light A7 Aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildSuper Light A7 Aluminum
Frameset
| Frame Material | Super Light A7 Aluminum |
|---|---|
| Fork | X-Fusion ENIX RL 100mm |
Drivetrain
| Shifters | Shimano Alivio |
|---|---|
| Front Derailleur | Shimano Alivio |
| Rear Derailleur | Shimano Deore Shadow |
| Crankset | Shimano Alivio 22/32/44t |
| Bottom Bracket | Shimano Octalink |
| Cassette | Shimano HG20 9spd 11-34t |
| Chain | KMC Z99 |
| Pedals | Wellgo Alloy |
Brakes
| Brakes | Avid Elixir 1 160mm |
|---|
Cockpit & Contact Points
| Headset | FSA Orbit |
|---|---|
| Handlebar | Alloy 31.8 |
| Stem | Alloy 3D forged |
| Saddle | WTB VOLT Sport |
| Seatpost | Alloy 31.6 |
Wheels & Tires
| Rims | Weinmann XM25 |
|---|---|
| Front Tire | Schwalbe Performance 26 X 2.25 |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
KMC Z99
Shimano HG20 9spd 11-34t
Schwalbe Performance 26 X 2.25
Replacement search: 26x2.25 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (7)Fewer parts
Shimano Octalink
WTB VOLT Sport
Shimano Alivio 22/32/44t
Shimano Alivio
Shimano Deore Shadow
Shimano Alivio
FSA Orbit
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Schwalbe Performance 26 X 2.25
- Drivetrain
- 9-speed
- Bottom bracket / shell
- Shimano Octalink
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Super Light A7 Aluminum · Fork: X-Fusion ENIX RL 100mm
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Alivio · Front derailleur: Shimano Alivio · Rear derailleur: Shimano Deore Shadow · Crankset: Shimano Alivio 22/32/44t · Bottom bracket: Shimano Octalink · Cassette: Shimano HG20 9spd 11-34t · Chain: KMC Z99
Brakes
Inspect the brakes →Archived: Brakes: Avid Elixir 1 160mm
Wheels and tires
Check wheels and tires →Archived: Rims: Weinmann XM25 · Front tire: Schwalbe Performance 26 X 2.25
Controls and contact points
Archived: Headset: FSA Orbit · Handlebar: Alloy 31.8 · Stem: Alloy 3D forged · Seatpost: Alloy 31.6 · Saddle: WTB VOLT Sport · Pedals: Wellgo Alloy
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

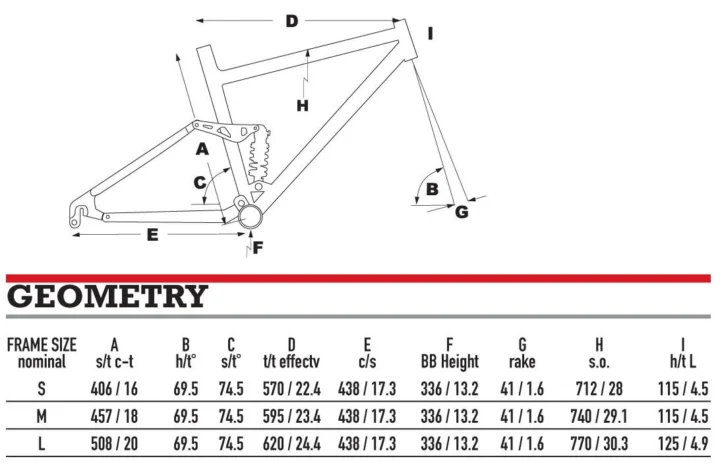

Gallery2 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
