Velopedia Bicycle Archive

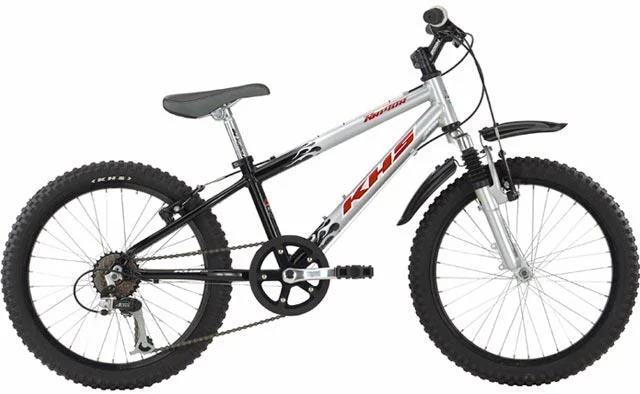

2005 KHS Raptor

Original specifications: Shimano Tourney · 6-speed · mechanical rear derailleur · 20" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #10229
Model year
2005
Category
Kids
Original MSRP
$199.00
Colors
Silver/Black, Silver/Light Blue
In this record
24 specifications · archived image · original MSRP
Model history 11 other years

Browse other years

Compare side by side

Identification clues

2005 archived details

Published colors
Silver/Black, Silver/Light Blue
Frame
7005 aluminum
Original equipment
Juvenile Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original build7005 aluminum · Juvenile Mix · 20" wheels

Manufacturer catalog

Published sizes and colors

2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published colors

Silver/BlackSilver/Light Blue

Frameset

Frame ConstructionTIG-welded
Frame Material7005 aluminum
ForkMozo M-30, 65mm
Fork MaterialAluminum, single crown

Drivetrain

Component GroupJuvenile Mix
ShiftersSRAM MRX
Rear DerailleurShimano Tourney TX-30
CranksetAluminum, 40 teeth
Bottom BracketVP-B33 cartridge
Rear Cogs6-speed, 14 - 28 teeth
ChainKMC Z51, 1/2 x 3/32"
PedalsPvc

Brakes

BrakesAluminum linear-pull brakes, aluminum/resin levers

Cockpit & Contact Points

HandlebarAluminum
Handlebar ExtensionsNot included
StemAluminum
SaddleKhs
SeatpostAluminum

Wheels & Tires

HubsFormula aluminum
RimsAluminum
SpokesUCP, 14ga. (2.0mm) straight gauge
Spoke NipplesBrass nipples
Front Tire20 X 2.25" KHS MTB
Wheel Size20" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

Published build40T · 14–28T · 6-speed
Lowest1.43:1 Highest2.86:1 Total range200%
Estimated speed At 90 RPM Lowest gear7.8 mph Highest gear15.7 mph

Uses front tire 20×2.25; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
KMC Z51

1/2 x 3/32"

Search Amazon Search eBay
Front tire · Original
20 x 2.25" KHS MTB Replacement search: 20x2.25 bicycle tire Before ordering: Check rim type and tire clearance.
Search Amazon Search eBay
Brake pads · Original
Aluminum linear-pull brakes

aluminum/resin levers

Search Amazon Search eBay
More parts (1)Fewer parts
Rear derailleur · Original
Shimano Tourney TX-30
Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
20 x 2.25" KHS MTB
Drivetrain
6-speed
Bottom bracket / shell
VP-B33 cartridge
Campaign
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: TIG-welded · Fork: Mozo M-30, 65mm · Aluminum, single crown

Drivetrain

Check drivetrain wear →

Archived: Group: Juvenile Mix · Shifters: SRAM MRX · Rear derailleur: Shimano Tourney TX-30 · Crankset: Aluminum, 40 teeth · Bottom bracket: VP-B33 cartridge · Rear cogs: 6-speed, 14 - 28 teeth · Chain: KMC Z51, 1/2 x 3/32"

Brakes

Inspect the brakes →

Archived: Brakes: Aluminum linear-pull brakes, aluminum/resin levers

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 20" wheels · Rims: Aluminum · Hubs: Formula aluminum · Front tire: 20 x 2.25" KHS MTB

Controls and contact points

Archived: Handlebar: Aluminum · Stem: Aluminum · Seatpost: Aluminum · Saddle: KHS · Pedals: PVC
