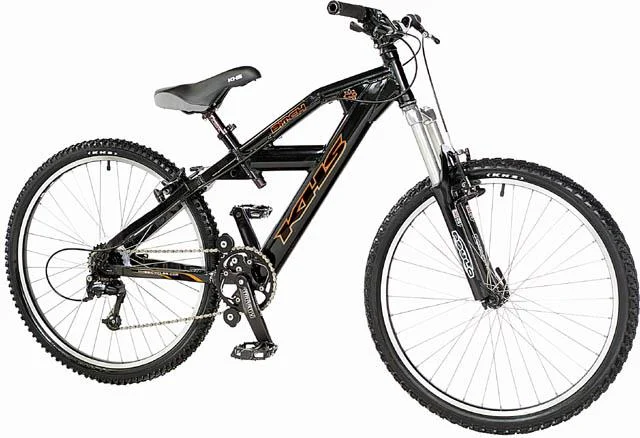

2001 KHS Bitch

Original specifications: Shimano Deore · 9-speed · mechanical rear derailleur · 26" wheels.

Share owner experience

At a glance

Archive #36238

Model year: 2001
Category: Mountain
Original MSRP: $1,199.00
Sizes: M
Colors: Black
In this record: 25 specifications · archived image · original MSRP

Model history 1 other year

Browse other years

Compare side by side

Identification clues

2001 archived details

Published colors: Black
Frame: Aluminum
Original equipment: Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildAluminum · Mountain Mix · 26" wheels

Manufacturer catalog

Published sizes and colors

1 size · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

Published colors

Black

Frameset

Frame Construction	TIG-welded
Frame Material	Aluminum
Fork	Rock Shox Pyslo XC, 3.15" travel
Fork Material	Aluminum/magnesium, triple-clamp crown

Drivetrain

Component Group	Mountain Mix
Shifters	Shimano Deore RapidFire SL
Front Derailleur	Chain retention device
Rear Derailleur	Shimano Deore SGS
Crankset	TruVativ Hussefelt, 42 teeth
Bottom Bracket	TruVativ
Rear Cogs	9-speed, 11 - 32 teeth
Chain	KMC Z9000, 1/2 x 3/32"
Pedals	Platform, aluminum

Brakes

Brakes	Power Tools Linear Pull brakes, Power Tools Alloy levers

Cockpit & Contact Points

Headset	1 1/8" Pig Aheadset
Handlebar	PowerTools DH
Handlebar Extensions	Not included
Stem	Powertools, aluminum
Saddle	PowerTools DH
Seatpost	Aluminum micro-adjust

Wheels & Tires

Hubs	Powertools alloy
Rims	Aluminum, double wall, 36-hole
Spokes	Stainless steel, 2.0mm straight gauge
Front Tire	26 x 2.10" Kenda Kinetics
Wheel Size	26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Pedal cadence

RPM

Speed units

RPM = pedal turns per minute.

All published sizes42T · 11–32T · 9-speed

Lowest1.31:1 Highest3.82:1 Total range291%

Estimated speed At 90 RPM Lowest gear9.2 mph Highest gear26.8 mph

Uses front tire 26×2.1; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Chain · Original

KMC Z9000

1/2 x 3/32"

Search Amazon Search eBay

Front tire · Original

26 x 2.10" Kenda Kinetics

Search Amazon Search eBay

Brake pads · Original

Power Tools Linear Pull brakes

Power Tools Alloy levers

Search Amazon Search eBay

More parts (2)Fewer parts

Rear derailleur · Original

Shimano Deore SGS

Search eBay

Shifters · Original

Shimano Deore RapidFire SL

Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: 26 x 2.10" Kenda Kinetics
Drivetrain: 9-speed
Bottom bracket / shell: TruVativ

Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.

This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.

Display name Required Email address Required · private Ownership Required When or how long you owned it Required Frame size Required Primary type of riding Required Rider height Optional

Overall owner experience Required · at least 120 characters0 of 120 minimum characters Would you own one again? Optional

Add fit, maintenance and buyer detailsOptional · five additional fields

Fit and sizing observations Optional Long-term strengths Optional Problems or recurring maintenance Optional Parts replaced or upgraded Optional What a used buyer should inspect Optional

Your contribution goes directly to Velopedia’s private review queue. We’ll email an optional confirmation link plus a private edit and withdrawal link, but you do not need to confirm your email before an administrator can review or approve the submission.

Already contributed? Send me a fresh private edit link

For privacy, Velopedia shows the same confirmation whether or not an experience exists.

No recent price sample is available for this bike. Check eBay for matching listings.

Find this bike on eBay

Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.

Search 2001 model Search all years

Campaign

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
