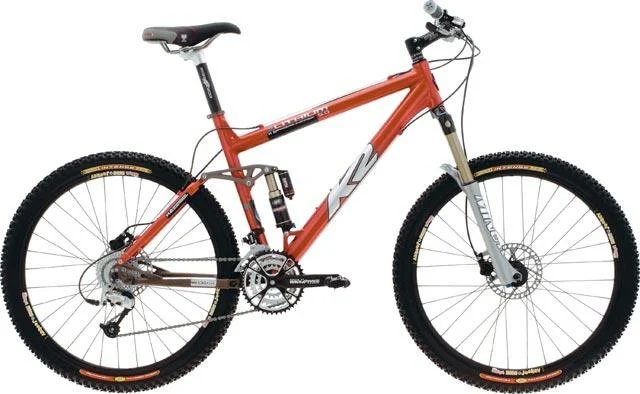

2005 K2 Lithium 5.0

Original specifications: SRAM X9 · 9-speed · mechanical rear derailleur · 26" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #93184
Model year
2005
Category
Mountain
Sizes
S, M, L, XL
Colors
Red, Red/Silver
In this record
26 specifications · archived image
Model history 1 other year

Browse other years

Compare side by side

Identification clues

2005 archived details

Published colors
Red, Red/Silver
Frame
7005 aluminum
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original build7005 aluminum · Mountain Mix · 26" wheels

Manufacturer catalog

Published sizes and colors

4 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

RedRed/Silver

Frameset

Frame ConstructionTIG-welded
Frame Material7005 aluminum
ForkManitou Minute 2:00, 130mm travel
Fork MaterialAluminum, single crown
Rear ShockManitou Swinger 3-Way, 130mm travel

Drivetrain

Component GroupMountain Mix
ShiftersSRAM X.9 Trigger
Front DerailleurSRAM X-Gen, bottom-pull/clamp-on
Rear DerailleurSRAM X.9
CranksetRaceFace Evolve XC X-Type, 22/32/44 teeth
Bottom BracketRace Face Evolve XC
Rear Cogs9-speed, 11 - 32 teeth
ChainKMC Z9200, 1/2 x 3/32"
PedalsTime ATAC Alium

Brakes

BrakesHayes HFX-9 Carbon Disc front/Hayes HFX-9 Carbon XC rear brakes, Hayes HFX-9 Carbon XC levers

Cockpit & Contact Points

Headset1 1/8" integrated FSA Orbit IS
HandlebarRace Face Evolve XC low-rise
Handlebar ExtensionsNot included
StemRace Face Evolve
SaddleWTB Laser V
SeatpostRace Face Evolve XC

Wheels & Tires

HubsSun Ringle
RimsSun Rims DS2-XC, 32-hole
SpokesStainless steel, 14/15ga. (2.0/1.8mm) double-butted
Front Tire26 x 2.25" In10se System 4 Plus
Wheel Size26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes44/32/22T · 11–32T · 9-speed
Lowest0.69:1 Highest4.00:1 Total range582%
Estimated speed At 90 RPM Lowest gear4.9 mph Highest gear28.4 mph

Uses front tire 26×2.25; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Front tire · Original
26 x 2.25" In10se System 4 Plus Replacement search: 26x2.25 bicycle tire Before ordering: Check rim type and tire clearance.
Bottom bracket · Original
Race Face Evolve XC
Saddle · Original
WTB Laser V
More parts (7)Fewer parts
Crankset · Original
RaceFace Evolve XC X-Type

22/32/44 teeth

Rear derailleur · Original
SRAM X.9
Shifters · Original
SRAM X.9 Trigger
Handlebar · Original
Race Face Evolve XC low-rise
Stem · Original
Race Face Evolve
Seatpost · Original
Race Face Evolve XC
Headset · Original
1 1/8" integrated FSA Orbit IS

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.25" In10se System 4 Plus
Drivetrain
9-speed
Bottom bracket / shell
Race Face Evolve XC
Campaign
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Manitou Minute 2:00, 130mm travel · Aluminum, single crown

Archived: Fork: Manitou Minute 2:00, 130mm travel · Rear shock: Manitou Swinger 3-Way, 130mm travel

Archived: Group: Mountain Mix · Shifters: SRAM X.9 Trigger · Front derailleur: SRAM X-Gen, bottom-pull/clamp-on · Rear derailleur: SRAM X.9 · Crankset: RaceFace Evolve XC X-Type, 22/32/44 teeth · Bottom bracket: Race Face Evolve XC · Rear cogs: 9-speed, 11 - 32 teeth · Chain: KMC Z9200, 1/2 x 3/32"

Archived: Brakes: Hayes HFX-9 Carbon Disc front/Hayes HFX-9 Carbon XC rear brakes, Hayes HFX-9 Carbon XC levers

Archived: Wheel size: 26" wheels · Rims: Sun Rims DS2-XC, 32-hole · Hubs: Sun Ringle · Front tire: 26 x 2.25" In10se System 4 Plus

Controls and contact points

Archived: Headset: 1 1/8" integrated FSA Orbit IS · Handlebar: Race Face Evolve XC low-rise · Stem: Race Face Evolve · Seatpost: Race Face Evolve XC · Saddle: WTB Laser V · Pedals: Time ATAC Alium
