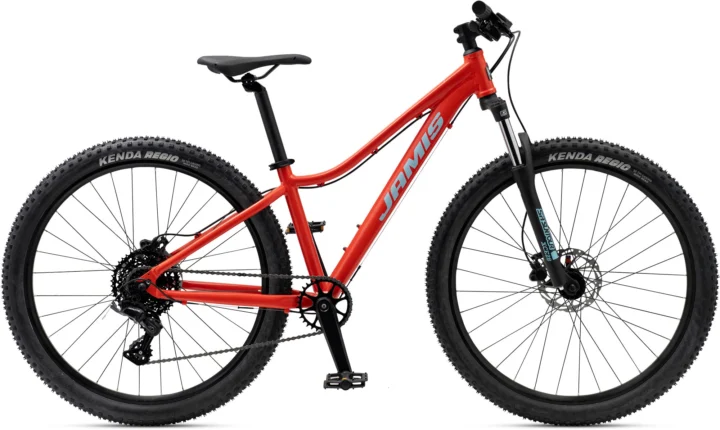

2026 Jamis Helix

Archived: Frame: 6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger · Fork: SR Suntour XCE 28 DS 27.5″, coil spring, external preload adjustor, 28mm stanchions, aluminum lowers, 100mm travel · Aluminum

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Archived: Fork: SR Suntour XCE 28 DS 27.5″, coil spring, external preload adjustor, 28mm stanchions, aluminum lowers, 100mm travel

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Group: microSHIFT Acolyte M5185M 8-speed · Shifters: microSHIFT Acolyte M6185, 1×8-speed · Rear derailleur: microSHIFT Acolyte M5185M 8-speed · Crankset: Samox AF26, 32T · Bottom bracket: Sealed cartridge · Cassette: microSHIFT H081, 8-speed, 11-42T · Chain: KMC Z8, 8-speed

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano MT200 hydraulic disc, Shimano RT26 160mm rotors

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.

Archived: Wheel size: 27.5 · Wheels: MTB double wall alloy disc 27.5″ rims, Joytec alloy disc hubs, nickel-plated spokes · Front tire: Kenda Regio, 27.5 x 2.2” · Rear tire: Kenda Regio, 27.5 x 2.2”

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: Zero-stack internal cup, 8mm cone spacer · Handlebar: Jamis XC alloy riser, 31.8 x 20mm rise x 680mm · Stem: Jamis XC alloy threadless, 31.8 x 10˚ rise x 75mm (14”/16″), 90mm (18″) · Seatpost: Jamis alloy micro-adjust, 31.6 x 350mm (14″) 400mm (16″/18″) · Saddle: Jamis ATB Sport · Pedals: MTB platform, hi-impact resin

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
