Velopedia Bicycle Archive

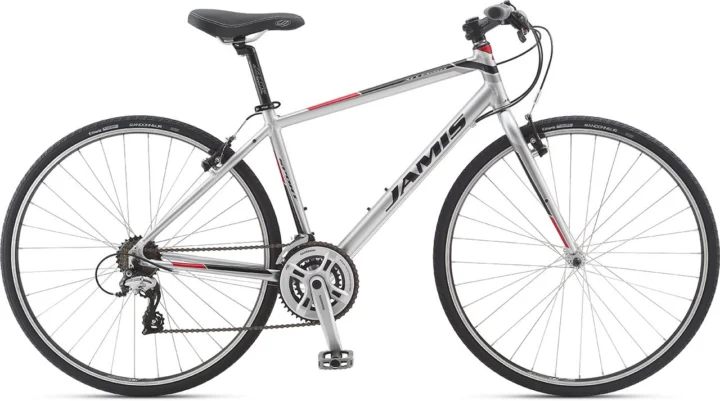

2014 Jamis Allegro Sport

Original specifications.

Share owner experience

At a glance

Archive #9258114

Model year: 2014
Sizes: 15, 17, 19, 21, 23
Colors: Gloss Black, Stainless
In this record: 17 specifications · 2 archived images

Original build6061-T6 Butted Aluminum

Manufacturer catalog

Published sizes and colors

5 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

1517192123

Published colors

Gloss BlackStainless

Frameset

Frame Material	6061-T6 Butted Aluminum
Fork	Chromoly

Drivetrain

Shifters	Shimano EZ-Fire Plus
Front Derailleur	Shimano FD-TX51 bottom pull
Rear Derailleur	Shimano Acera
Crankset	Shimano 48/38/28t
Bottom Bracket	Fsa
Cassette	Shimano CS-H20 12x28t
Chain	KMC Z51
Pedals	Platform

Brakes

Brakes	Tektro RX-1.0 linear-pull

Cockpit & Contact Points

Headset	FSA Integrated IS 1 1/8"
Handlebar	Jamis Flat
Stem	Jamis Trekking
Saddle	Jamis Touring
Seatpost	Alloy micro-adjust

Wheels & Tires

Front Tire	Vittoria Randonneur 700x32

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes48/38/28T · 12–28T

Lowest1.00:1 Highest4.00:1 Total range400%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

Vittoria Randonneur 700x32

Search Amazon Search eBay

Retailer offers

Goodyear Eagle Tubeless Tire Black, 700x32

700x32c

Replacement option

Competitive Cyclist ↗$59.95

Other replacement options (1)

Challenge Strada Pro Tubeless Tire Tan, 700x32

700x32c

Replacement option

Backcountry ↗$89.99

Chain · Original

KMC Z51

Search Amazon Search eBay

Cassette · Original

Shimano CS-H20 12x28t

Search Amazon Search eBay

More parts (3)Fewer parts

Brake pads · Original

Tektro RX-1.0 linear-pull

Search Amazon Search eBay

Front derailleur · Original

Shimano FD-TX51 bottom pull

Search Amazon Search eBay

Headset · Original

FSA Integrated IS 1 1/8"

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: Vittoria Randonneur 700x32
Bottom bracket / shell: FSA

Equipment inspection checks 8 checks based on 4 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: 6061-T6 Butted Aluminum · Fork: Chromoly

Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Drivetrain

Check drivetrain wear →

Archived: Shifters: Shimano EZ-Fire Plus · Front derailleur: Shimano FD-TX51 bottom pull · Rear derailleur: Shimano Acera · Crankset: Shimano 48/38/28t · Bottom bracket: FSA · Cassette: Shimano CS-H20 12x28t · Chain: KMC Z51

Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Tektro RX-1.0 linear-pull

Inspect pads, cables and housings, then examine both rim braking surfaces for concavity, cracking or heavy wear. Confirm each caliper returns and centers correctly.

Controls and contact points

Archived: Headset: FSA Integrated IS 1 1/8" · Handlebar: Jamis Flat · Stem: Jamis Trekking · Seatpost: Alloy micro-adjust · Saddle: Jamis Touring · Pedals: Platform

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.

This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.

Display name Required Email address Required · private Ownership Required When or how long you owned it Required Frame size Required Primary type of riding Required Rider height Optional

Overall owner experience Required · at least 120 characters0 of 120 minimum characters Would you own one again? Optional

Add fit, maintenance and buyer detailsOptional · five additional fields

Fit and sizing observations Optional Long-term strengths Optional Problems or recurring maintenance Optional Parts replaced or upgraded Optional What a used buyer should inspect Optional

Your contribution goes directly to Velopedia’s private review queue. We’ll email an optional confirmation link plus a private edit and withdrawal link, but you do not need to confirm your email before an administrator can review or approve the submission.

Already contributed? Send me a fresh private edit link

For privacy, Velopedia shows the same confirmation whether or not an experience exists.

Gallery2 images

Checking current listings…

Find this bike on eBay

Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.

Search 2014 model Search all years

Campaign

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
