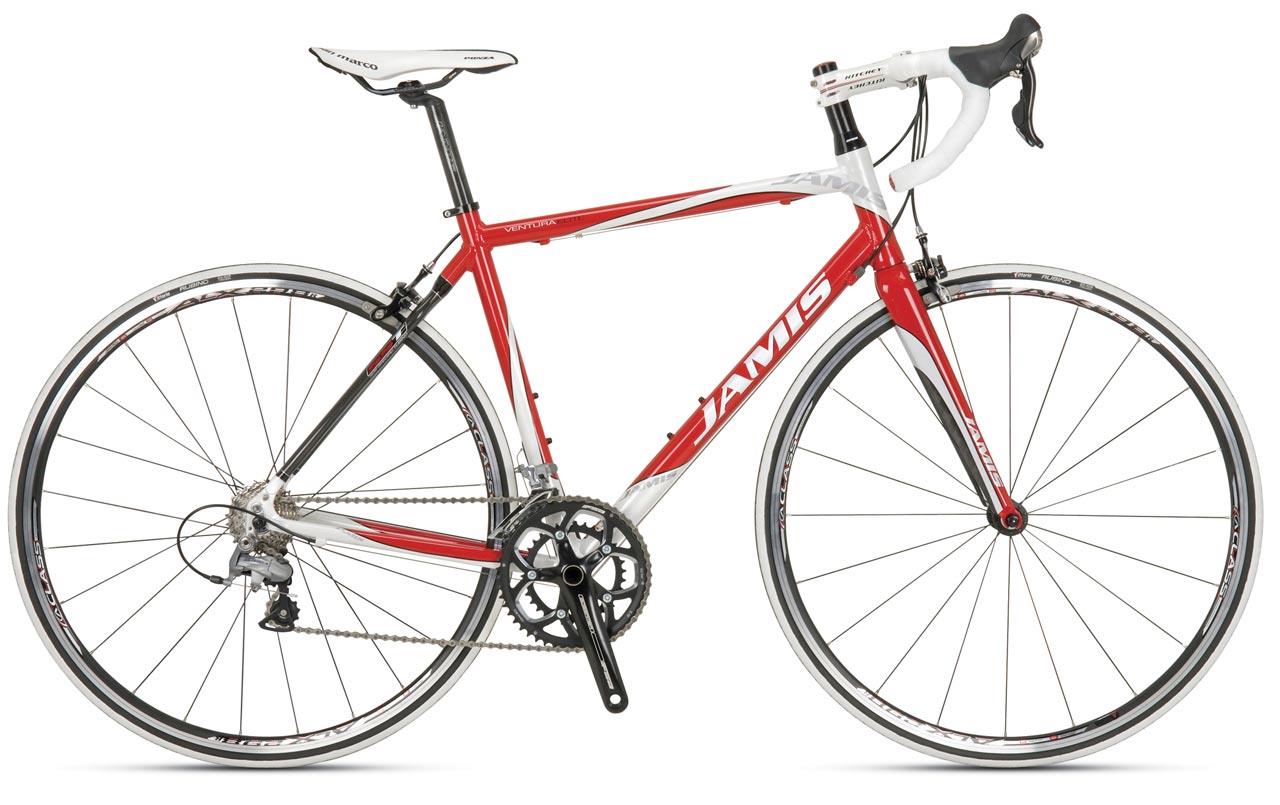

2010 Jamis Ventura Elite
Road/sport bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 48cm, 51cm, 54cm, 56cm, 58cm, 61cm
- Colors
- Victory Red/Pearl White
- Archive ID
- 19584
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kinesis 7005 Triple-Butted Aluminum Main Frame with Carbon Fiber Monostay |
| Fork | Jamis |
| Fork Material | Carbon Composite, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Road Mix |
|---|---|
| Shifters | Shimano Ultegra ST-6700 Dual Control STI |
| Front Derailleur | Shimano Ultegra FD-6700, 31.8mm clamp |
| Rear Derailleur | Shimano Ultegra RD-6700 |
| Crankset | FSA Gossamer Compact, 50/34 teeth |
| Bottom Bracket | FSA Mega EXO |
| Cassette | Shimano CS-5600 |
| Rear Cogs | 10-speed, 11 - 25 teeth |
| Chain | KMC X10 |
| Pedals | N/A |
Brakes
| Brakes | Tektro R530 Dual-Pivot brakes, Shimano Ultegra ST-6700 STI levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA Integrated |
|---|---|
| Handlebar | Ritchey Pro Logic II |
| Handlebar Extensions | Not included |
| Stem | Ritchey Pro 4-Axis |
| Saddle | Selle San Marco Ponza |
| Seatpost | Jamis Carbon Fiber Micro adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Alex ALX-298R |
|---|---|
| Rims | Alex ALX-298R, 20-hole/24-hole |
| Spokes | DT Swiss stainless steel |
| Front Tire | 700 x 23c Vittoria Rubino |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
