Velopedia Bicycle Archive

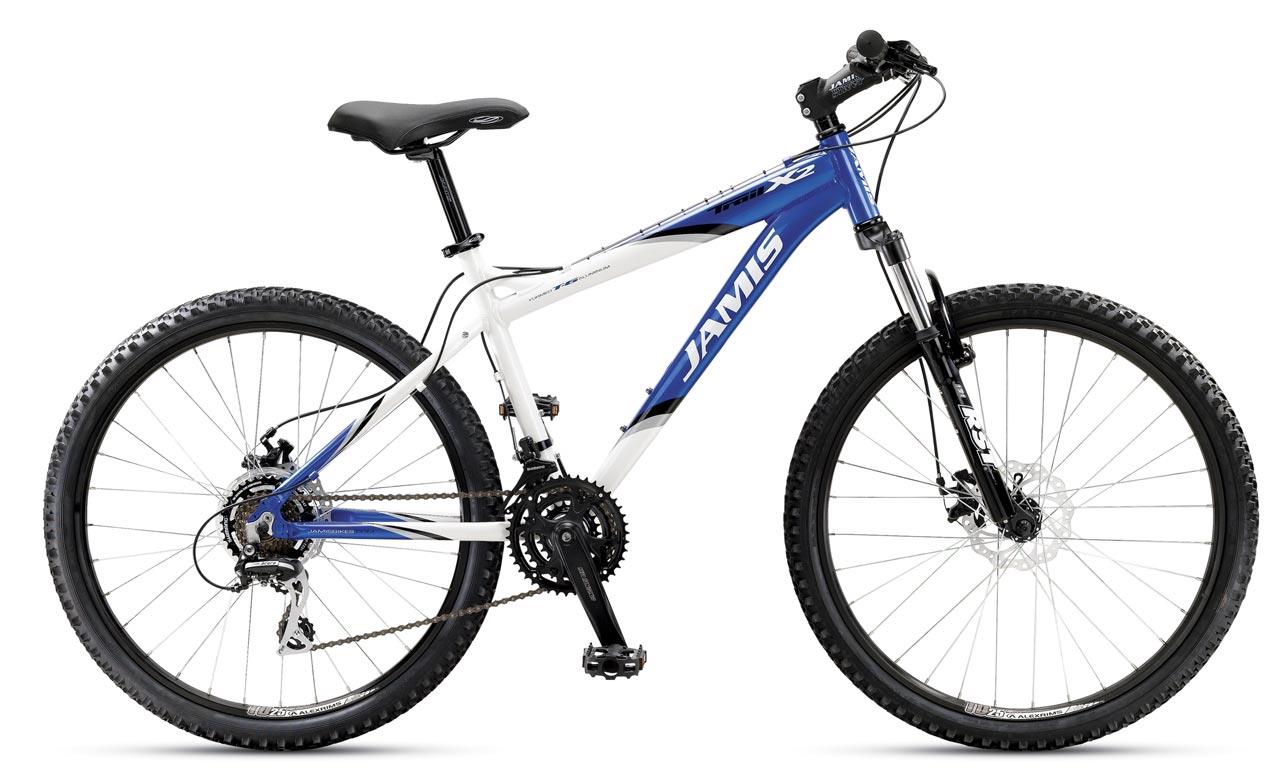

2010 Jamis Trail X2
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 13", 15", 17", 19", 21"
- Colors
- Gloss Black/Cool Grey, Victory Blue/Pearl White
- Archive ID
- 19643
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum |
| Fork | RST 191-T, 80mm travel |
| Fork Material | Alloy, single crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Acera ST-EF50 EZ-Fire Plus |
| Front Derailleur | Shimano TZ30, top-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Acera M360 |
| Crankset | SR Suntour Forged, 42/34/24 teeth |
| Bottom Bracket | Sealed cartridge, 122.5mm spindle |
| BB Shell Width | 68mm |
| Cassette | Freewheel |
| Rear Cogs | 7-speed, 13 - 28 teeth |
| Chain | KMC Z51 |
| Pedals | ATB platform |
Brakes
| Brakes | Tektro IO mechanical Disc brakes, Shimano levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless VP threadless |
|---|---|
| Handlebar | Jamis XC riser |
| Handlebar Extensions | Not included |
| Stem | Jamis XC alloy |
| Saddle | Jamis ATB |
| Seatpost | Jamis alloy micro-adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Alloy Disc QR |
|---|---|
| Rims | Alex TD-25, 32-hole |
| Spokes | Nickel-plated, 14ga. (2.0mm) |
| Front Tire | 26 x 1.95" CST XC knobbie |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
