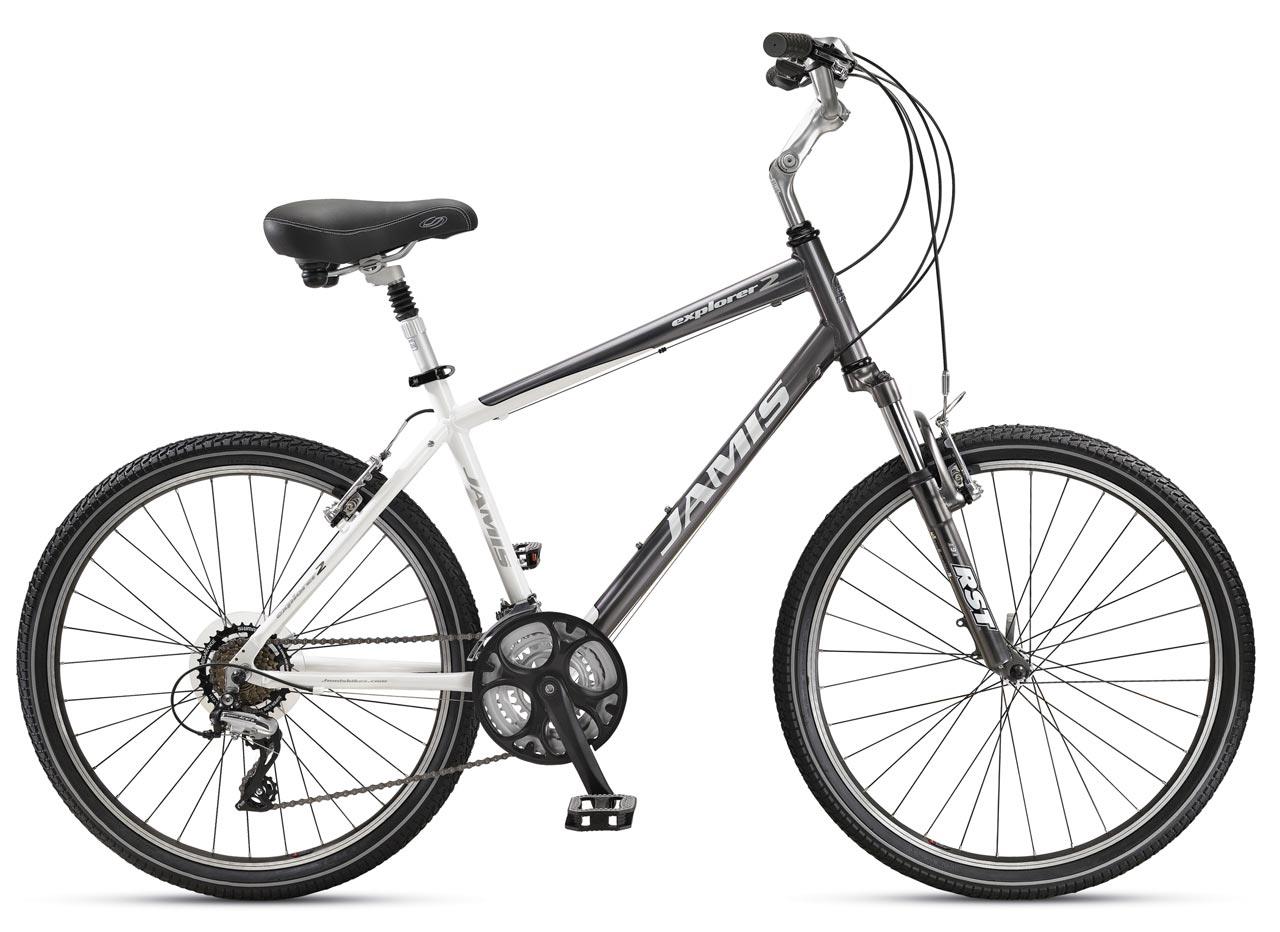

2010 Jamis Explorer 2
Comfort/commuter bicycle from the Velopedia historical specification archive.
- Original MSRP
- $0.00
- Sizes
- 13", 15", 18", 21"
- Colors
- Pewter/Pearl White, Sangria/Pearl White
- Archive ID
- 19627
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 aluminum |
| Fork | RST 191-T, 80mm travel |
| Fork Material | Alloy, single crown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Comfort Mix |
|---|---|
| Shifters | Shimano Acera ST-EF50 EZ-Fire Plus |
| Front Derailleur | Shimano C051, 31.8mm clamp |
| Rear Derailleur | Shimano Acera M360 |
| Crankset | Forged Alloy w/chainguard, 48/38/28 teeth |
| Bottom Bracket | Sealed cartridge, 110.5mm spindle |
| BB Shell Width | 68mm |
| Cassette | Shimano freewheel |
| Rear Cogs | 7-speed, 14 - 34 teeth |
| Chain | KMC UG-51 |
| Pedals | Comfort Platform |
Brakes
| Brakes | Tektro forged alloy direct pull brakes, Shimano Alloy levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threaded ATB sealed |
|---|---|
| Handlebar | Hi-Rise Comfort |
| Handlebar Extensions | Not included |
| Stem | Jamis Alloy Quill Type |
| Saddle | Jamis Comfort |
| Seatpost | Suspension Alloy Micro-Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Formula Alloy QR |
|---|---|
| Rims | Alex DC-25, 36-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) |
| Front Tire | 26 x 1.95" Jamis Sport Comfort |
| Wheel Size | 26" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
