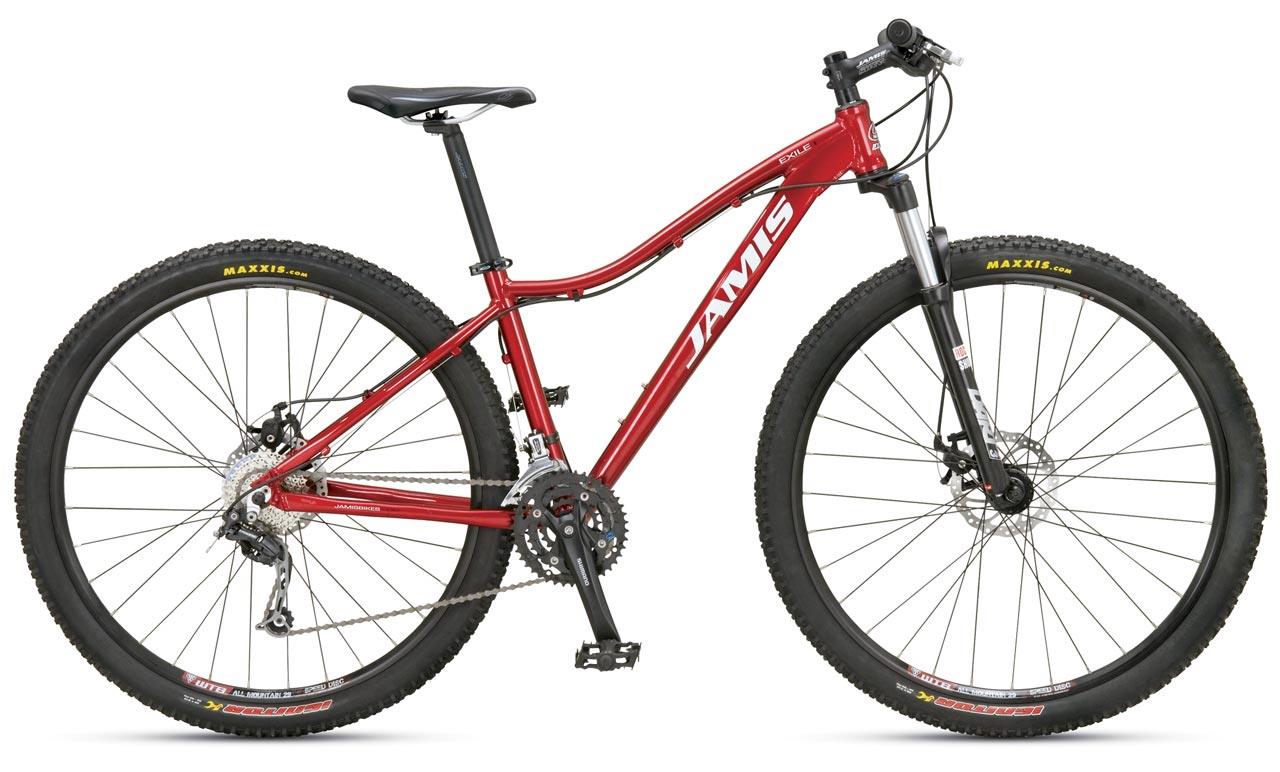

2010 Jamis Exile I
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 15", 17", 19", 21"
- Colors
- Candy Apple
- Archive ID
- 19662
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kinesis Superlight 6061 Triple-Butted Aluminum |
| Fork | Rock Shox Dart 3 29'er, 100mm travel |
| Fork Material | Magnesium/aluminum, single crown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Acera Rapidfire-SL |
| Front Derailleur | Shimano Acera, top-pull/clamp-on 34.9mm |
| Rear Derailleur | Shimano Deore |
| Crankset | Shimano Deore M361, 44/32/22 teeth |
| Bottom Bracket | Shimano UN-26, 121mm spindle |
| BB Shell Width | 68mm |
| Cassette | Shimano HG40 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC Z9000 |
| Pedals | Alloy platform w/steel outer cage |
Brakes
| Brakes | Tektro IO mechanical disc w/ 160mm Wavy Rotor brakes, Tektro ML-330 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA ZS-4 Internal Cup |
|---|---|
| Handlebar | Jamis XC alloy riser |
| Handlebar Extensions | Not included |
| Stem | Jamis XC alloy |
| Saddle | Jamis Trail |
| Seatpost | Jamis alloy micro-adjust, 31.6mm diameter |
Wheels & Tires
| Hubs | Formula alloy disc |
|---|---|
| Rims | WTB Speed Disc 29", 32-hole |
| Spokes | WTB stainless steel, 14ga. (2.0mm) |
| Front Tire | 29 x 2.10" Maxxis Ignitor |
| Wheel Size | 29" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
