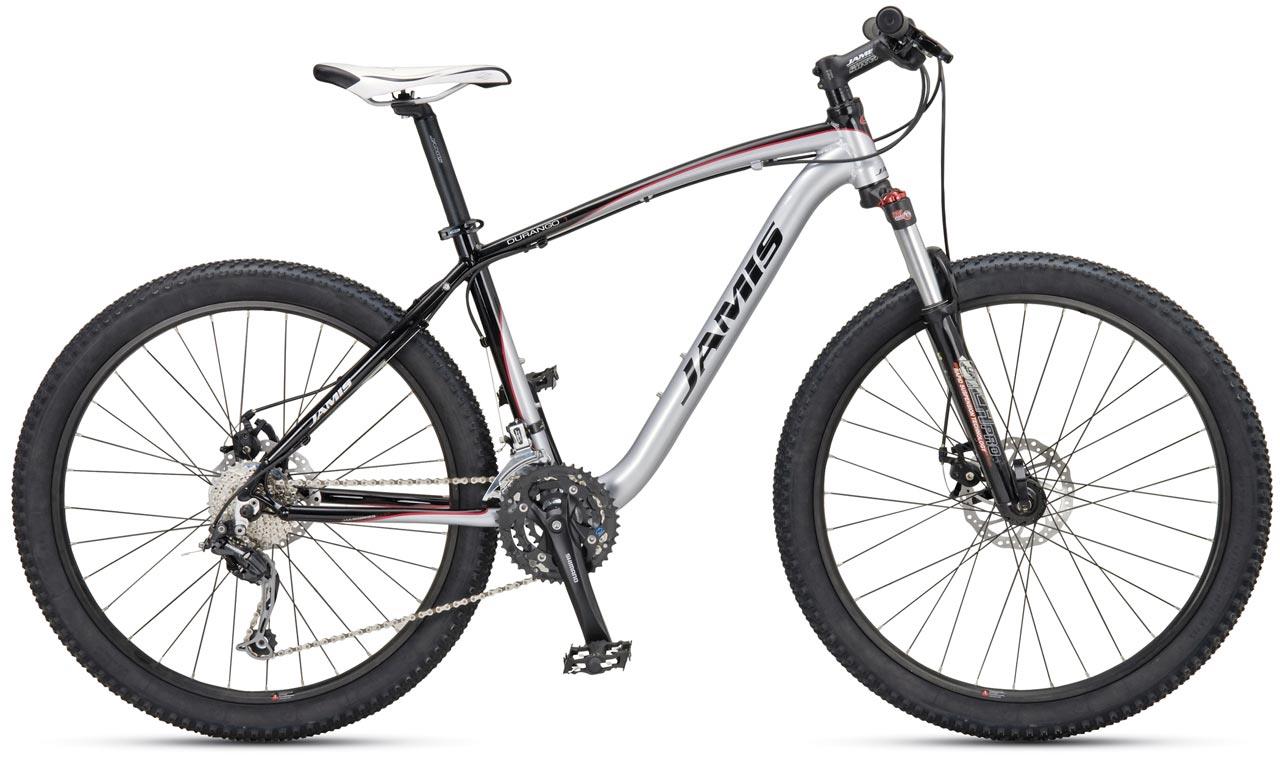

2010 Jamis Durango 1
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 13", 15", 17", 19", 21"
- Colors
- Stainless/Gloss Black, Victory Red/Pearl White
- Archive ID
- 19651
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 Triple Butted Aluminum |
| Fork | RST Gila Pro, 100mm travel |
| Fork Material | Single crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Acera rapidfire Plus SL-M360 |
| Front Derailleur | Shimano Altus M311, dual-pull/clamp-on 34.9mm |
| Rear Derailleur | Shimano Deore Shadow |
| Crankset | Shimano Acera M361, 42/32/22 teeth |
| Bottom Bracket | Sealed cartridge, 122.5mm spindle |
| BB Shell Width | 68mm |
| Cassette | Shimano HG40 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC Z82 |
| Pedals | Platform w/steel outer cage |
Brakes
| Brakes | Tektro IO mechanical disc w/ 160mm Wavy Rotor |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Zero Stack Internal Cup |
|---|---|
| Handlebar | Jamis XC alloy riser |
| Handlebar Extensions | Not included |
| Stem | Jamis XC Alloy Threadless |
| Saddle | Jamis Trail |
| Seatpost | Jamis alloy micro-adjust, 31.6mm diameter |
Wheels & Tires
| Hubs | Formula alloy disc |
|---|---|
| Rims | Alex ASD-2 |
| Spokes | Stainless steel, 14ga. (2.0mm) |
| Front Tire | 26 x 2.20" Geax Saguaro |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
