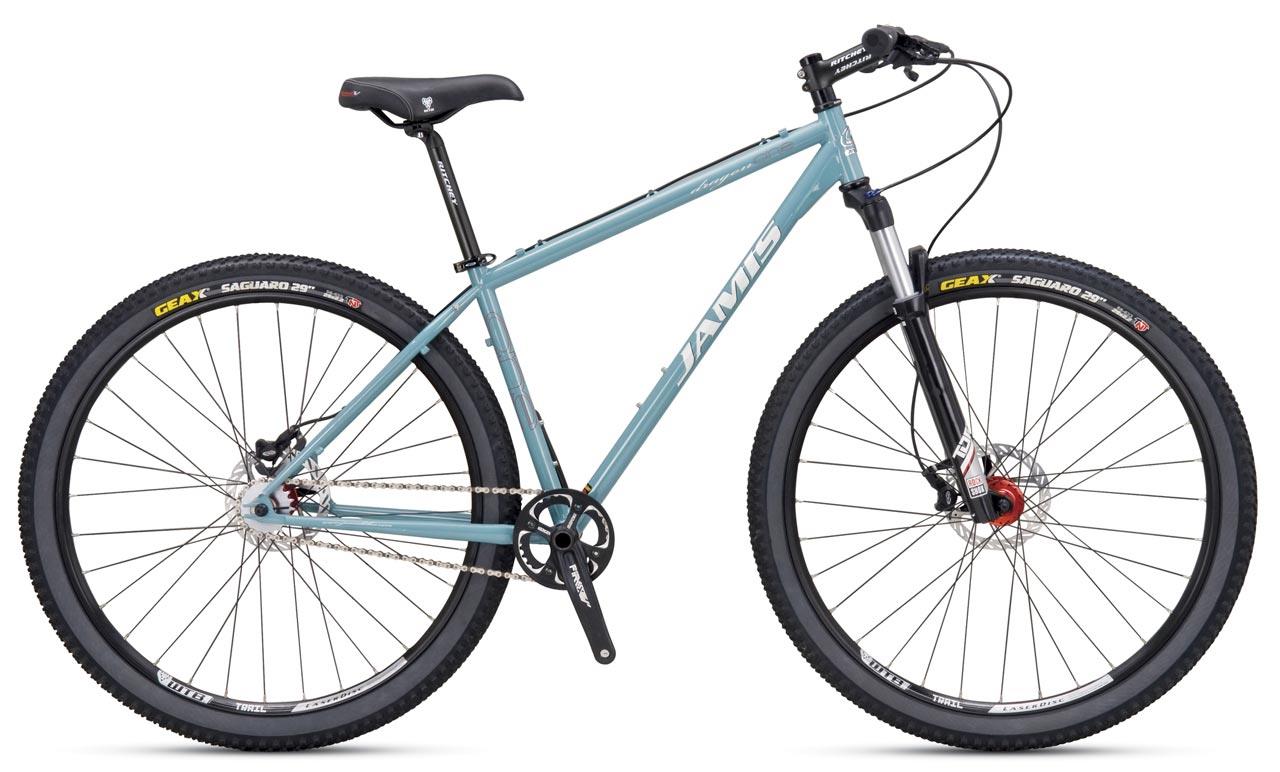

2010 Jamis Dragon One
Mountain bike, front suspension bicycle from the Velopedia historical specification archive.
- Original MSRP
- $0.00
- Sizes
- 15", 17", 19", 21"
- Colors
- Blue Smoke
- Archive ID
- 19660
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Reynolds 520 chromoly |
| Fork | Rock Shox Tora 29'er Race Solo Air, 100mm travel |
| Fork Material | Magnesium/aluminum, single crown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | TruVativ FireX SingleSpeed, 33 teeth |
| Bottom Bracket | TruVativ Giga-X external |
| Cassette | Relic 9:1 cog spacer |
| Rear Cogs | 1-speed, 20 teeth |
| Chain | KMC Z8 |
| Pedals | N/A |
Brakes
| Brakes | Avid Juicy 3 Hydraulic w/160mm Rotor brakes, Avid Juicy 3, hydraulic disc levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Aheadset |
|---|---|
| Handlebar | Ritchey Mountain Pro Flat Bar |
| Handlebar Extensions | Not included |
| Stem | Ritchey OS |
| Saddle | WTB Speed V Sport |
| Seatpost | Ritchey, 27.2mm diameter |
Wheels & Tires
| Hubs | Formula alloy disc |
|---|---|
| Rims | WTB Laser Disc Trail, 32-hole |
| Spokes | WTB stainless steel, 14ga. (2.0mm) |
| Front Tire | 29 x 2.20" Geax Saguaro |
| Wheel Size | 29" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
