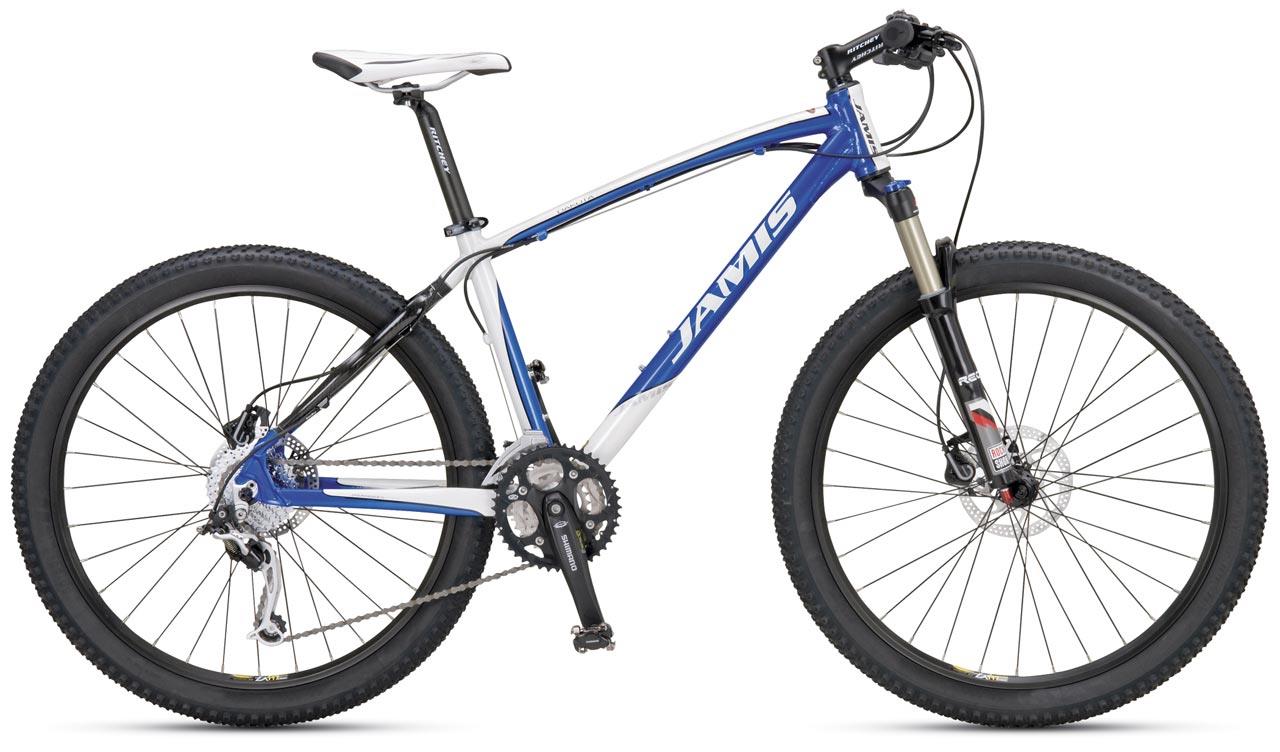

2010 Jamis Dakota Race
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 15", 17", 19", 21"
- Colors
- Victory Blue/Pearl White
- Archive ID
- 19655
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kinesis 7005 Triple-Butted Aluminum Main Frame with Carbon Fiber Monostay |
| Fork | Rock Shox Recon Race Solo Air, 100mm travel |
| Fork Material | Magnesium/aluminum, single crown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore Rapidfire Plus-SL |
| Front Derailleur | Shimano Deore, top-pull/clamp-on 34.9mm |
| Rear Derailleur | Shimano Deore XT Shadow |
| Crankset | Shimano Deore Hollowtech, 44/32/22 teeth |
| Bottom Bracket | Shimano ES25, 126mm spindle |
| BB Shell Width | 68mm |
| Cassette | SRAM PowerGlide 950 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | KMC Z9200 |
| Pedals | Shimano 505 |
Brakes
| Brakes | Shimano M575 disc w/160mm Rotors brakes, Shimano M575 Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA ZS-4 Zero-Stack Internal Cup |
|---|---|
| Handlebar | Ritchey MTN OS flat Bar |
| Handlebar Extensions | Not included |
| Stem | Ritchey OS |
| Saddle | Jamis XC |
| Seatpost | Ritchey OS 2-Bolt, 31.6mm diameter |
Wheels & Tires
| Hubs | Shimano Deore M595 Center Lock Disc |
|---|---|
| Rims | Mavic XM 117, 32-hole |
| Spokes | WTB stainless steel, 14ga. (2.0mm) |
| Front Tire | 26 x 2.20" Geax Saguaro |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
