Velopedia Bicycle Archive

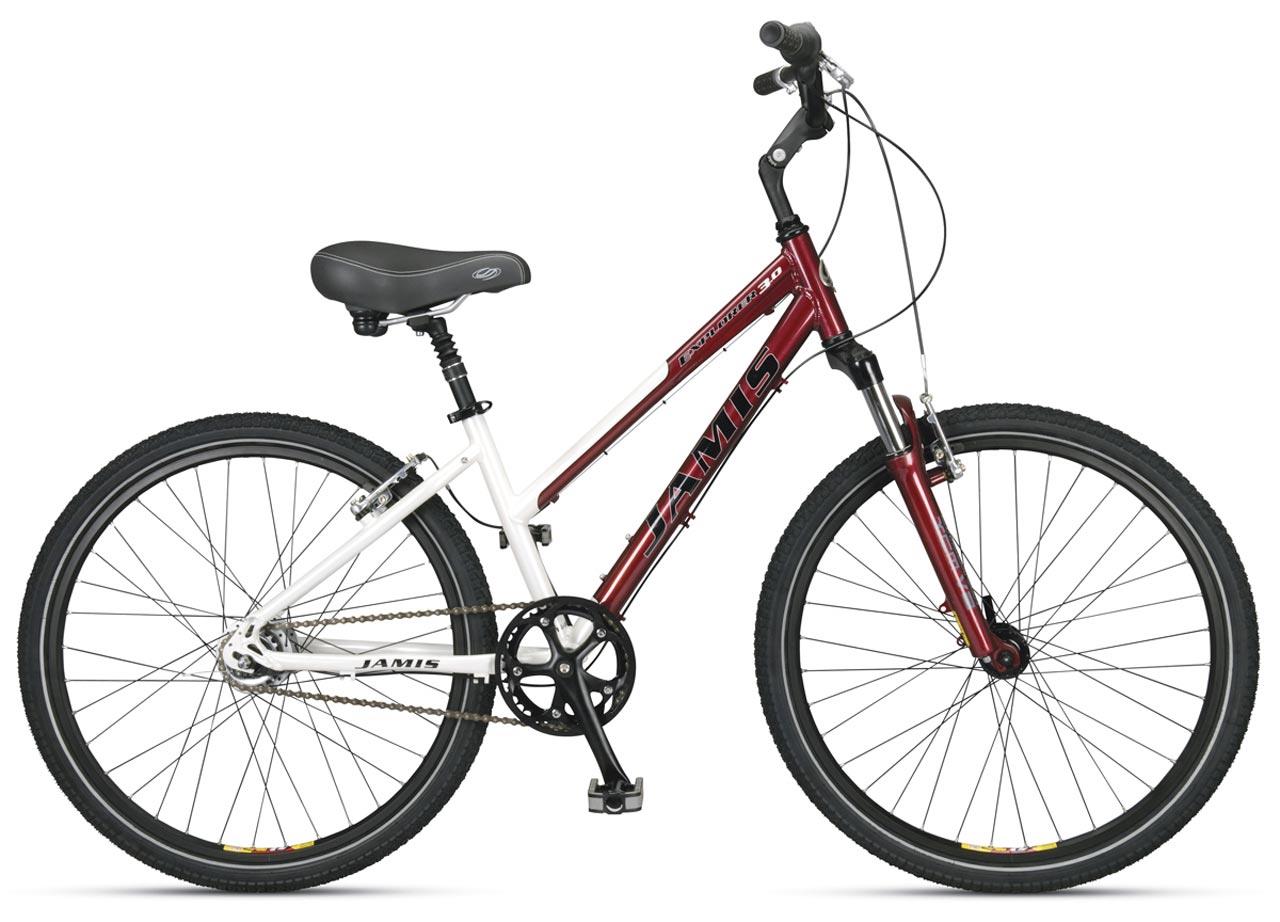

2009 Jamis Explorer 3 Womans
Comfort/commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $625.00
- Sizes
- Womens 14.5", womens 17.5"
- Colors
- Machine Silver/Pearl White, Cabernet Red/Pearl White
- Weight
- 33.5
- Archive ID
- 18197
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 aluminum |
| Fork | SR Suntour XCM V2, 80mm |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Comfort Mix |
|---|---|
| Shifters | Shimano SL-8S20 |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | Forged Alloy, 42 teeth |
| Bottom Bracket | Sealed cartridge, 124.5mm spindle |
| BB Shell Width | 68mm |
| Cassette | Shimano Nexus |
| Rear Cogs | 8-speed internal, 20 teeth |
| Chain | KMC Z610 Rust Buster |
| Pedals | Comfort Platform |
Brakes
| Brakes | Tektro forged alloy direct pull brakes, Tektro Tenera levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Threaded |
|---|---|
| Handlebar | Hi-rise comfort style |
| Handlebar Extensions | Not included |
| Stem | Jamis alloy adjustable |
| Saddle | Jamis Comfort |
| Seatpost | Alloy Suspension Micro Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Formula alloy, Rear: Shimano Nexus 8 speed Internal |
|---|---|
| Rims | Weinmann Zac 19, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 1.95" Jamis Sport Comfort |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
