Velopedia Bicycle Archive

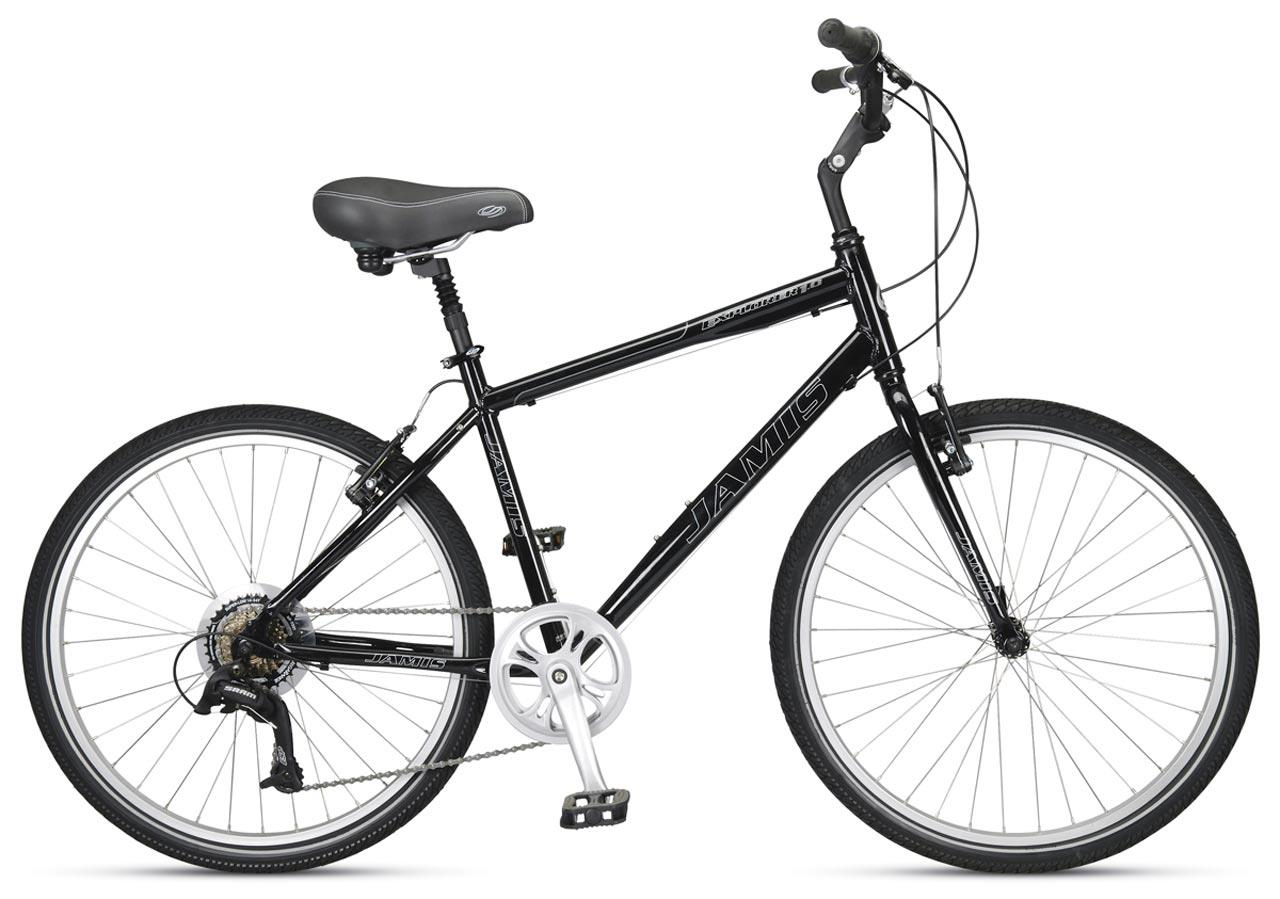

2009 Jamis Explorer 1
Comfort/commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $365.00
- Sizes
- 13.5", 15.5", 18", 21"
- Colors
- Gloss Black, Inca Gold
- Weight
- 29.4
- Archive ID
- 18200
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 aluminum |
| Fork Material | High-tensile steel, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Comfort Mix |
|---|---|
| Shifters | SRAM 3.0 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM 3.0 |
| Crankset | Forged Alloy, 44 teeth |
| Bottom Bracket | VP sealed, 129mm spindle |
| BB Shell Width | 68mm |
| Cassette | Shimano freewheel |
| Rear Cogs | 7-speed, 13 - 34 teeth |
| Chain | KMC UG-51 |
| Pedals | Comfort Platform |
Brakes
| Brakes | Alloy Direct Pull brakes, Tektro Tenera levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Threaded |
|---|---|
| Handlebar | Hi-rise comfort style |
| Handlebar Extensions | Not included |
| Stem | Jamis alloy adjustable |
| Saddle | Jamis Comfort |
| Seatpost | Alloy Suspension Micro Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Formula Sealed Alloy w/ QR |
|---|---|
| Rims | Alloy, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 1.95" Jamis Sport Comfort |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
